Acerca del producto

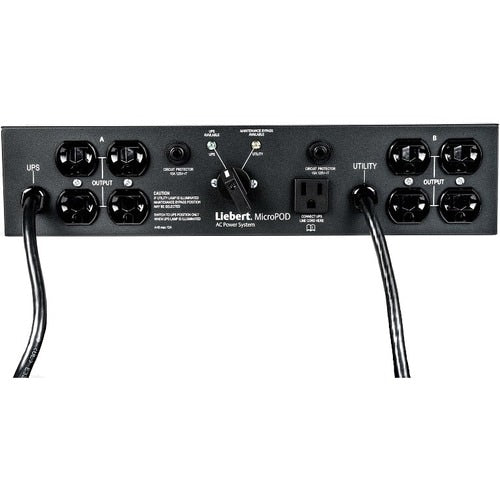

The Vertiv Liebert MicroPod External Maintenance Bypass POD (MP2-115A) is an external power output distribution (POD) unit and maintenance bypass switch for your uninterruptible power supply (UPS) unit. With the MicroPod, you can avoid initiating unnecessary downtimes during UPS maintenance or replacements. It allows the manual transfer of power from the UPS to the utility source without power interruption to the connected load, ensuring continuous uptime for your critical operations. The MicroPod MP2-115A is designed for the Vertiv Liebert GXT and Vertiv Liebert PSI UPS 3kVA models and below, but is compatible with other UPS brands as well. It comes with brackets for easy rack mounting and is equipped with two NEMA 5-15P input connectors. The MicroPOD has eight NEMA 5-15 output connectors and is available at 120V and supports a max current of 12A.
- Avoid initiating unnecessary downtimes during UPS maintenance or replacement
- Designed for Vertiv Liebert PSI and Vertiv Liebert GXT UPS but is compatible with any UPS brand 3kVA models or lower
- Shipped with mounting brackets for easy mounting on any standard 19" rack, oin the floor, or on the wall
- Output: Eight (8) NEMA 5-15R| Input: Two (2) NEMA 5-15P| Max Current: 12Amps| AC 120V
- Comes with two-year, full-unit, and no-hassle replacement warranty
Especificaciones técnicas
| Miscellaneous | |
| Package Contents |
|
| Compatibility | Liebert Micro-UPS Systems |
| Certifications & Standards |
|
| Power Description | |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Current | 12 A |
| Technical Information | |
| Protection Type | Surge |
| Signal | |
| Receptacles | 8 x NEMA 5-15R |
| Plug/Connector Type | NEMA 5-15P |
| General Information | |
| Product Type | Bypass Switch |
| Manufacturer Part Number | MP2-115A |
| Manufacturer Website Address | http://www.vertiv.com/ |
| Manufacturer | Vertiv |
| Product Model | MP2-115A |
| Product Name | MicroPOD MP2-115A Bypass Switch |
| Product Line | MicroPOD |
| Brand Name | Vertiv Liebert |
| Physical Characteristics | |
| Weight (Approximate) | 9.92 lb (4499.64 g) |
| Form Factor | Rack-mountable |
| Rack Height | 2U |
| Height | 3.50" (88.90 mm) |
| Width | 17" (431.80 mm) |
| Depth | 3.50" (88.90 mm) |
| Product Color | Black |
| Color Family | Black |
