Acerca del producto

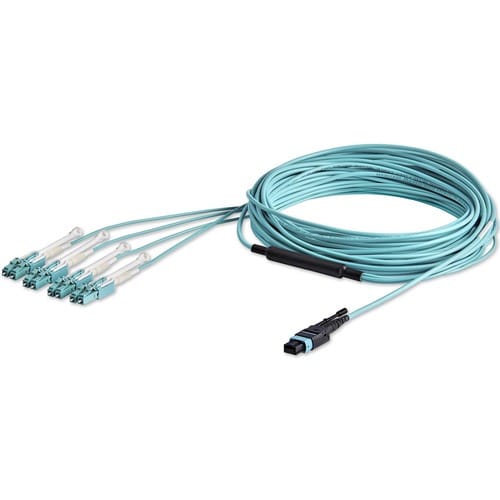

This MPO/MTP to 4x LC breakout cable lets you fan out a single 40Gbps connection from a 40GBase-SR4 QSFP+ transceiver to four 10Gbps LC SFP+ transceivers.
The push-and-pull tabs optimize accessibility and let you install or remove the connectors with one hand without using additional tools. Plus, the slim uniboot design of the LC connectors saves space and improves cable management.
The MPO cable is housed in a plenum-rated jacket and is ideal for in-wall installations or anywhere CMP fire rating is required.

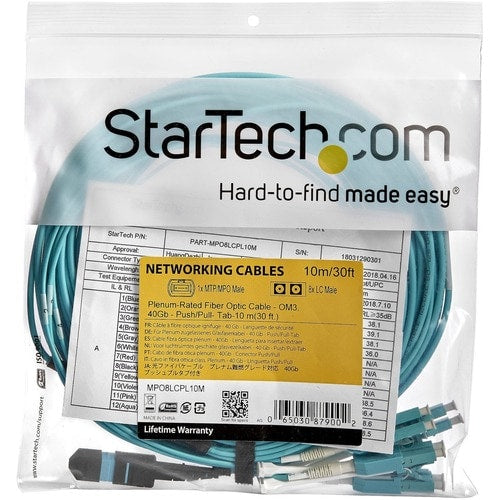

Each OM3 fiber cable has been individually tested for insertion loss and return loss. The full test report is included in each cable bag.
The MPO8LCPL10M from StarTech.com is backed by a lifetime warranty.
More from the Manufacturer
- Obtain higher port density with eight LC network connections combined into a single MPO/MTP connector
- Optimize accessibility and install or remove connectors with one hand using the push-and-pull tabs

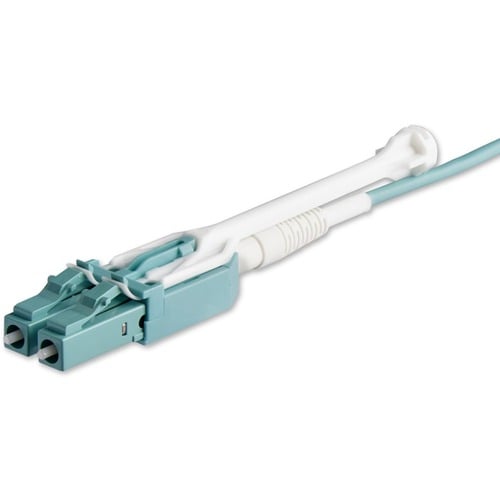

- Save space and improve cable management with slim uniboot connectors
- Get test data for your fiber cable - an insertion loss and return loss test report is included in each cable bag
Especificaciones técnicas
| Miscellaneous | |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Physical Characteristics | |
| Shipping Weight (Approximate) | 4 oz (113.40 g) |
| Weight (Approximate) | 3.70 oz (104.89 g) |
| Shipping Height | 0.39" (9.91 mm) |
| Shipping Width | 7.87" (199.90 mm) |
| Product Color | Aqua |
| Color Family | Green |
| General Information | |
| Product Type | Network Cable |
| Manufacturer Part Number | MPO8LCPL10M |
| Manufacturer Website Address | http://www.startech.com |
| Packaged Quantity | 1 Each |
| Manufacturer | StarTech.com |
| Product Name | Fiber Optic Patch Duplex Network Cable |
| Brand Name | StarTech.com |
| Technical Information | |
| Cable Length | 32.8 ft (10 m) |
| Data Transfer Rate | 40 Gbit/s |
| Device Supported | Router |
| Switch | |
| Patch Panel | |
| Network Device | |
| Media Converter | |
| Hub | |
| Jacket Type | CMP |
| OFNP | |
| Plenum | |
| Features | Uniboot Connector |
| Push-Pull Tab | |
| Cable Characteristic | Patch Cable |
| Cable Type | Fiber Optic |
| Connector Type on First End | MTP/MPO Network - Female |
| Connector Type on Second End | LC Network - Male |
| Fiber Optic Mode | Multi-mode |
| Connector on First End Details | 1 x MTP/MPO Network - Female |
| Connector on Second End Details | 8 x LC Network - Male |
| Connector Gender on First End | Female |
| Connector Gender on Second End | Male |
| Fiber Optic Cable Core/Cladding Specification | 50/125 µm |
