Acerca del producto

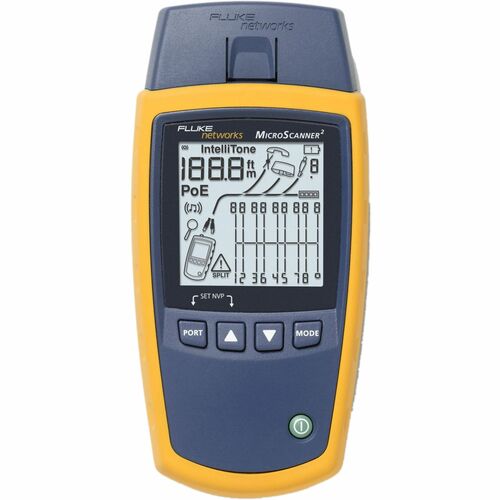

The Fluke Networks MicroScanner™2 Industrial Ethernet Cable Verifier performs continuity tests on RJ45, M12X, M12D, and M8D terminated cables in seconds and displays results graphically so you can see opens, shorts, and crossed wires.
It also reports which end of the cable has a problem and reports the distance to an open connection within the cable. Cable failures result in costly production downtime so it's important to quickly identify where the cable is broken so it can be replaced or repaired.

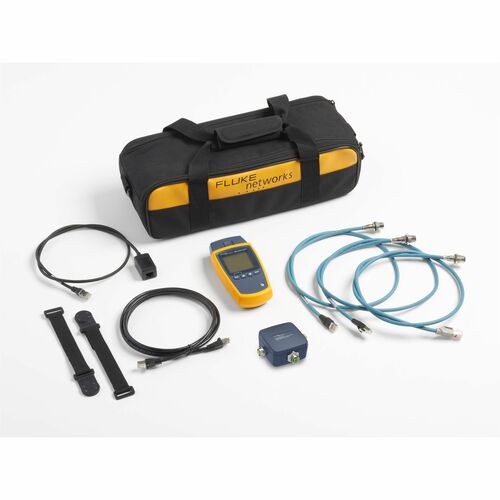

Includes Duffle Bag, Multi-Connector Adapter, Cat6A patch cord, RJ45 male to RJ45 female patch cord , RJ45/M12X patch cord, RJ45/M12D patch cord, RJ45/M8D patch cord for testing of M12X, M12D, M8D terminated cables.
- Graphical wire map, length, cable ID, and distance to fault
- Test RJ11, RJ45, Coax, and Industrial Ethernet connector types
- Locate cables with IntelliTone™ digital and analog toning
- Verify 10/100/1000 Ethernet and detects PoE
- Work in any enviroment with backlit LCD screen
Especificaciones técnicas
| Display & Graphics | |
| Display Screen Type | LCD |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Network & Communication | |
| Network Standard | 1000Base-T |
| Ethernet Technology | Gigabit Ethernet |
| Battery Information | |
| Battery Life | 20 Hour |
| Battery Chemistry | Alkaline |
| Battery Size Supported | AA |
| Number of Batteries Supported | 2 |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | United States |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Physical Characteristics | |
| Weight (Approximate) | 10.60 oz (300.50 g) |
| Height | 6.40" (162.56 mm) |
| Width | 3" (76.20 mm) |
| Depth | 1.40" (35.56 mm) |
| General Information | |
| Product Type | Cable Analyzer |
| Manufacturer Part Number | MS2100IE |
| Manufacturer Website Address | http://www.flukenetworks.com |
| Packaged Quantity | 1 |
| Manufacturer | Fluke Networks |
| Product Name | MicroScanner 2 Industrial Ethernet Cable Verifier |
| Product Line | MicroScanner2 |
| Brand Name | Fluke Networks |
| Technical Information | |
| Device Function | Wiremap |
| Twisted Pair Cable Testing | |
| Tone Detection | |
| Split Pair Testing | |
| Short Circuit Testing | |
| RJ11 Testing | |
| Coaxial Cable Testing | |
| Open Circuit Testing | |
| Mismatched Wiring Testing | |
| Crossed Pair Testing | |
| PoE Testing | |
| Cable Testing | |
| Cable Fault Testing | |
| Cable Length Measurement | |
| Maximum Length Measurement | 1509.2 ft |
