Acerca del producto
Get advanced vision for locating network cables more effectively at patch panels, switches, termination blocks, or hidden within bundles. Our new IntelliTone Pro 200 LAN Toner and Probe Kits finds the cables others can't.

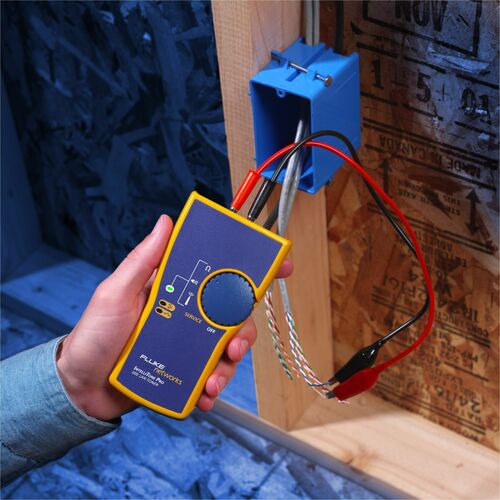

The IntelliTone™ Pro 200 LAN Toner and Probe Series from Fluke Networks is the first network cable toner and probe to offer digital and analog signaling all in one tool. That means it's equipped with the most powerful cable location technologies for any work environment. Use digital mode to trace and locate data cabling safely and effectively on active networks. Use analog mode to isolate individual wire pairs, and trace voice, audio, and video cabling.
The IntelliTone™ Pro 200 LAN Toner and Probe Series from Fluke Networks gives you superior vision for locating cables hidden in floors, ceilings, walls, and in bundles. This network cable toner and probe's breakthrough digital technology makes it the first tool to tone and trace safely and effectively on active networks.
Especificaciones técnicas
| Controls/Indicators | |
| Status Indicators | LED indicate the presence of normal, reversed or MDIX Ethernet link connectivity |
| Power Description | |
| Input Voltage | 9 V DC |
| Interfaces/Ports | |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Media & Performance | |
| Media Type Supported | Coaxial |
| Twisted Pair | |
| Network & Communication | |
| Network Standard | 10/100Base-TX |
| Ethernet Technology | Fast Ethernet |
| Battery Information | |
| Battery Life | 20 Hour |
| Battery Chemistry | Alkaline |
| Battery Included | Yes |
| Physical Characteristics | |
| Height | 5.54" (140.72 mm) |
| Width | 2.94" (74.68 mm) |
| Depth | 1.25" (31.75 mm) |
| Technical Information | |
| Device Function | Coaxial Cable Testing |
| Continuity Testing | |
| Twisted Pair Cable Testing | |
| Miscellaneous | |
| Package Contents |
|
| Certifications & Standards |
EMC:
|
| Country of Origin | Malaysia |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| General Information | |
| Product Type | Cable Analyzer |
| Manufacturer Part Number | MT820061TNR |
| Manufacturer Website Address | http://www.flukenetworks.com |
| Manufacturer | Fluke Networks |
| Product Model | MT-8200-61-TNR |
| Product Name | IntelliTone Pro 200 LAN Toner |
| Product Line | IntelliTone |
| Brand Name | Fluke Networks |
