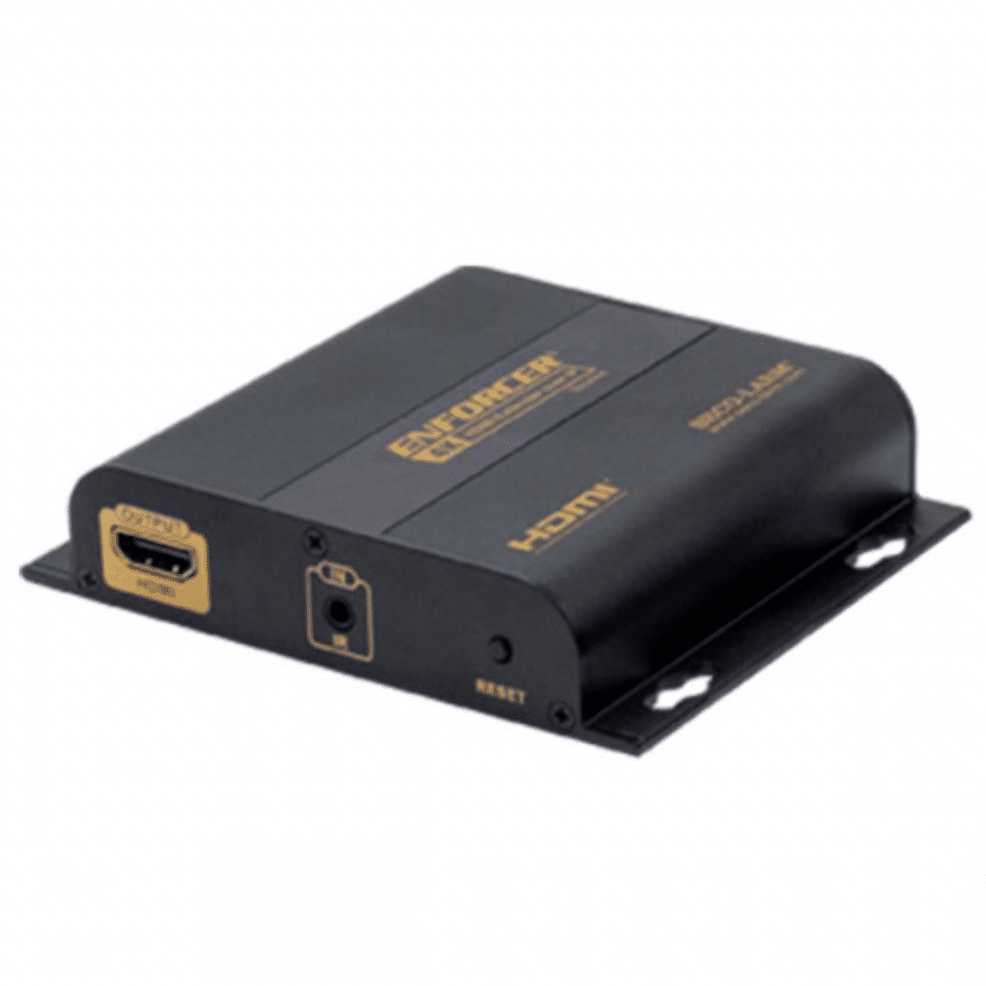

Seco-Larm HDMI Extender over IP Kit Overview
The MVE-AHMPM-41NQ 4K HDMI Extender over IP extends the range of HDMI signals by using an active transmitter and receiver to send video and audio over a single Cat5e/6 cable. The 4K HDMI Extender over IP supports IR signals using the included IR transmitter and receiver, allowing remote control use from one end of an installation to control a device such as a media player or DVD player at the opposite end of the installation. The MVE-AHMPM-41NQ supports One-to-One, and One-to-Many installations, allowing the connection of multiple units for an extended range.
Seco-Larm HDMI Extender over IP Kit Features
- Extends HDMI over one Cat5e/6 cable or IP network
- Supports One-to-One, and One-to-Many applications
- IR Support (20kHz~60kHz)
- HDCP Compliant
- Power adapters and IR hardware included
Seco-Larm HDMI Extender over IP Kit Specifications
- Maximum video resolution: 4K@30Hz
- Deep color: 24-bit
- Video formats supported: DTV/HDTV: 480i, 480p,576i,576p,720p,1080i,1080p, 4K@30Hz
- Range – 4K:
- Cat5 262ft (80m)
- Cat5e 328ft (100m)
- Cat6 393ft (120m)
- IP addressing: Static
- IR frequency: 20kHz~60kHz
- Operating voltage: 5VDC
- Power supply: 2A@5VDC
- Power consumption
- Transmitter: 6W
- Receiver: 4W
- Operating temperature: 32°~140° F (0°~60° C)
- Dimensions: 4 7/16""x15/16""x3 11/16"" (112x23x94 mm)
- Weight: 5.9-oz (170g)
Especificaciones técnicas
Seco-Larm HDMI Extender over IP Kit Overview
The MVE-AHMPM-41NQ 4K HDMI Extender over IP extends the range of HDMI signals by using an active transmitter and receiver to send video and audio over a single Cat5e/6 cable. The 4K HDMI Extender over IP supports IR signals using the included IR transmitter and receiver, allowing remote control use from one end of an installation to control a device such as a media player or DVD player at the opposite end of the installation. The MVE-AHMPM-41NQ supports One-to-One, and One-to-Many installations, allowing the connection of multiple units for an extended range.
Seco-Larm HDMI Extender over IP Kit Features
- Extends HDMI over one Cat5e/6 cable or IP network
- Supports One-to-One, and One-to-Many applications
- IR Support (20kHz~60kHz)
- HDCP Compliant
- Power adapters and IR hardware included
Seco-Larm HDMI Extender over IP Kit Specifications
- Maximum video resolution: 4K@30Hz
- Deep color: 24-bit
- Video formats supported: DTV/HDTV: 480i, 480p,576i,576p,720p,1080i,1080p, 4K@30Hz
- Range – 4K:
- Cat5 262ft (80m)
- Cat5e 328ft (100m)
- Cat6 393ft (120m)
- IP addressing: Static
- IR frequency: 20kHz~60kHz
- Operating voltage: 5VDC
- Power supply: 2A@5VDC
- Power consumption
- Transmitter: 6W
- Receiver: 4W
- Operating temperature: 32°~140° F (0°~60° C)
- Dimensions: 4 7/16""x15/16""x3 11/16"" (112x23x94 mm)
- Weight: 5.9-oz (170g)
