Acerca del producto
The N201-004-WH Cat6 Gigabit Snagless Molded UTP Patch Cable (M/M) is recommended for distributing data, voice and video through computers, network adapters, routers, servers, modems, hubs and switches in high-density data centers. Designed for fast transmission and excellent signal quality, this cable ensures peak performance throughout your local area network (LAN). It reduces impedance and structural return loss compared to standard 100 MHz wire.
This four-foot white cable is designed for 1000Base-T (1 Gbps Ethernet), 10/100Base-T (Ethernet), 100 Mbps TPDDI, 155 Mbps ATM, ISDN, voice, Token Ring Type 3 and EIA/TIA applications. Manufactured from 24 AWG four-pair stranded UTP with a rugged PVC jacket, the N201-004-WH delivers speeds up to 550 MHz/1 Gbps and flawless signal delivery, while keeping near-end crosstalk levels to a minimum.

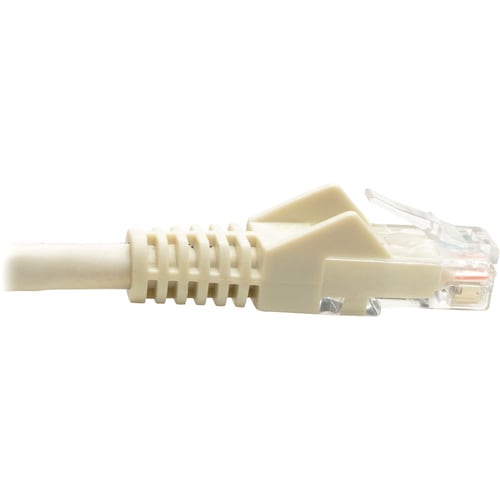

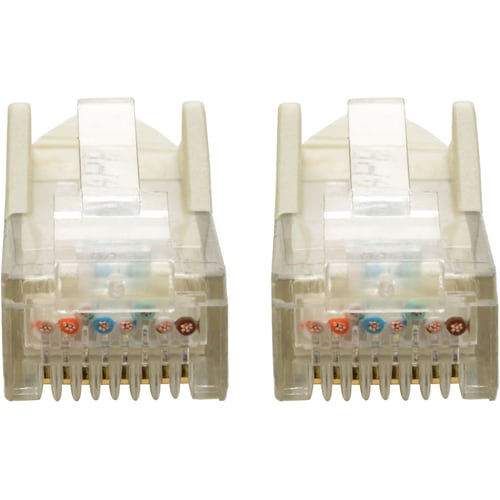

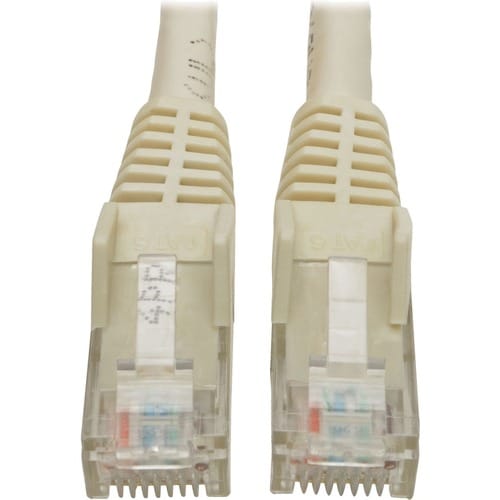

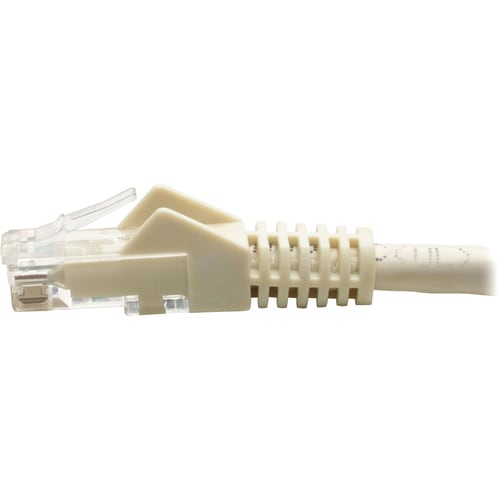

The RJ45 short-body connectors' snagless design protects the locking tabs from being damaged or broken off during installation. Corrosion-resistant gold-plated copper contacts provide maximum conductivity and minimize data loss. Integral strain relief gives the cable extra flexibility, reduces stress, and helps the cable and connectors move freely without cracking. Meets most other current industry standards, including IEEE 802.3ab, 802.5, ISO/IEC 11801 and ETL (Cat6 draft 11).
- Features Molded
- Offers a reliable network connectivity
- Features Category 6 cable type
Especificaciones técnicas
| Miscellaneous | |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Physical Characteristics | |
| Shipping Weight (Approximate) | 1.92 oz (54.43 g) |
| Shipping Height | 9" (228.60 mm) |
| Shipping Width | 7" (177.80 mm) |
| Product Color | White |
| Color Family | White |
| General Information | |
| Product Type | Network Cable |
| Manufacturer Part Number | N201-004-WH |
| Manufacturer Website Address | https://tripplite.eaton.com/ |
| Manufacturer | Eaton Corporation |
| Product Model | N201-004-WH |
| Product Name | N201-004-WH Cat.6 UTP Patch Network Cable |
| Brand Name | Tripp Lite by Eaton |
| Technical Information | |
| Cable Length | 4 ft (1.22 m) |
| Data Transfer Rate | 1 Gbit/s |
| Device Supported | Router |
| Switch | |
| Server | |
| Network Device | |
| Network Adapter | |
| Modem | |
| Hub | |
| Features | Strain Relief |
| Molded | |
| Rugged | |
| Flexible | |
| Stranded | |
| Corrosion Resistant | |
| Crosstalk Protection | |
| Cable Characteristic | Patch Cable |
| Cable Type | Category 6 |
| Connector Type on First End | RJ-45 Network - Male |
| Connector Type on Second End | RJ-45 Network - Male |
| Connector Plating | Gold |
| American Wire Gauge | 24 AWG |
| Contact Plating | Copper |
| Connector on First End Details | 1 x RJ-45 Network - Male |
| Connector on Second End Details | 1 x RJ-45 Network - Male |
| Boot Type | Snagless |
