Acerca del producto
Premium high-speed cabling designed for Cat6 premise (in-wall) applications in air ducts and drop ceilings, such as the distribution of data, voice and digital video across Gigabit Ethernet networks.
Features | Perfect Solution for High-Speed Cat6 Premise Applications in Air Ducts and Drop Ceilings
- Designed for distributing data, voice and digital video across Gigabit Ethernet networksl
- Delivers speeds up to 550 MHz/1 Gbpsl
- Ideal for horizontal wiring applications, including 10/100/1000 Base-T Ethernet, 100 Mbps TPDDI, 155
- Mbps ATM, ISDN, voice, EIA/TIA and Token Ring Type 3 applications
Premium Construction for Superior Performance
- Made from 23 AWG copper wirel

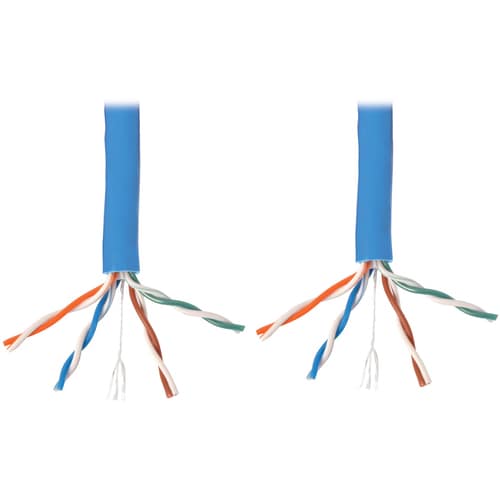

- 4-pair solid UTPl
- Minimum near-end crosstalkl
- Plenum-rated CMP jacketl
- Meets most current industry standards, including IEEE 802.3ab, IEEE 802.5, ANSI/EIA/TIA 568, ISO/IEC 11801 and ETL (category 6, draft 11)
- Ideal for horizontal applications in air ducts and drop ceilings
- Rated for 550 MHz/1 Gbps communications
- High-quality 23 AWG 4-pair solid copper wire
- Plenum-rated PVC jacket
- Meets IEEE 802.3ab and ANSI/EIA/TIA 568 standards
Especificaciones técnicas
| Miscellaneous | |
| Environmentally Friendly | Yes |
| TAA Compliant | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) | |
| General Information | |
| Product Type | Network Cable |
| Manufacturer Part Number | N224-01K-BL |
| Manufacturer Website Address | https://tripplite.eaton.com/ |
| Manufacturer | Eaton Corporation |
| Product Model | N224-01K-BL |
| Product Name | N224-01K-BL Cat6 Gigabit Bulk Solid-Core Plenum-Rated CMP Cable, Blue, 1000 ft. |
| Package Type | Bulk |
| Brand Name | Tripp Lite series |
| Physical Characteristics | |
| Material Details | Copper - Conductor |
| Shipping Weight (Approximate) | 31 lb (14061.36 g) |
| Shipping Height | 13.78" (350.01 mm) |
| Shipping Width | 14.17" (359.92 mm) |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Product Color | Blue |
| Color Family | Blue |
| Product Material | Copper |
| Technical Information | |
| Cable Length | 1000 ft (304.80 m) |
| Conductor | Copper |
| Data Transfer Rate | 1 Gbit/s |
| Device Supported | Network Device |
| Jacket Type | CMP |
| Plenum | |
| Shielding | No |
| Number of Conductors | 4 |
| Cable Type | Category 6 |
| Connector Type on First End | Bare Wire |
| Connector Type on Second End | Bare Wire |
| American Wire Gauge | 23 AWG |
