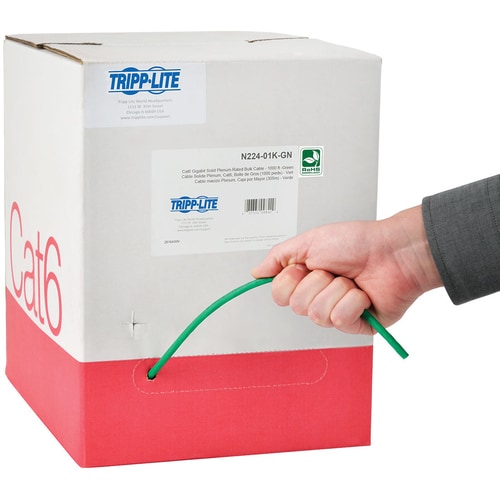

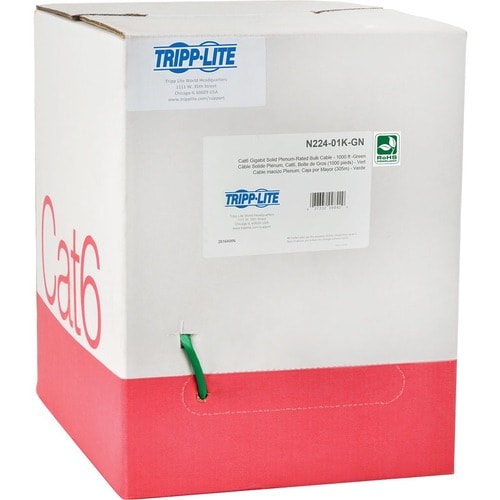

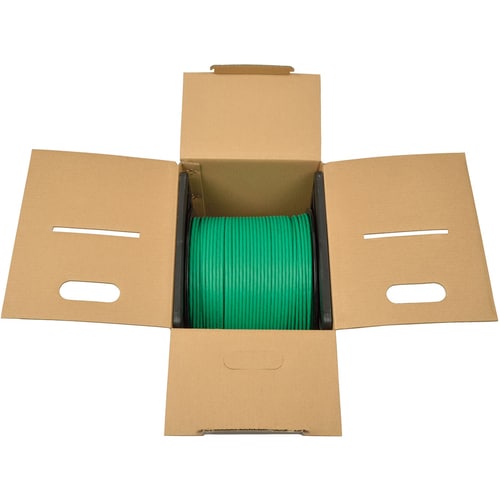

The N224-01K-GN Cat6 Gigabit Bulk Solid-Core Plenum-Rated PVC Cable is premium high-speed cabling designed for Cat6 premise applications in air ducts and drop ceilings, such as the distribution of data, voice and digital video across Gigabit Ethernet networks. Designed for fast transmission and excellent signal quality, this green cable ensures peak performance through your LAN (local area network).
Manufactured from 23 AWG copper wire, the four-pair solid UTP N224-01K-GN delivers speeds up to 550 MHz/1 Gbps. Protected by a plenum-rated PVC jacket, this cable keeps near-end crosstalk levels to a minimum. It's ideal for 10/100/1000 Base-T Ethernet, 100 Mbps TPDDI, 155 Mbps ATM, ISDN, voice, EIA/TIA and Token Ring Type 3 applications.
The N224-01K-GN meets most current industry standards, including IEEE 802.3ab, IEEE 802.5, ANSI/EIA/TIA 568, ISO/IEC 11801 and ETL (category 6, draft 11).
Manufactured from 23 AWG copper wire, the four-pair solid UTP N224-01K-GN delivers speeds up to 550 MHz/1 Gbps. Protected by a plenum-rated PVC jacket, this cable keeps near-end crosstalk levels to a minimum. It's ideal for 10/100/1000 Base-T Ethernet, 100 Mbps TPDDI, 155 Mbps ATM, ISDN, voice, EIA/TIA and Token Ring Type 3 applications.
The N224-01K-GN meets most current industry standards, including IEEE 802.3ab, IEEE 802.5, ANSI/EIA/TIA 568, ISO/IEC 11801 and ETL (category 6, draft 11).
- Ideal for horizontal applications in air ducts and drop ceilings|Rated for 550 MHz/1 Gbps communications

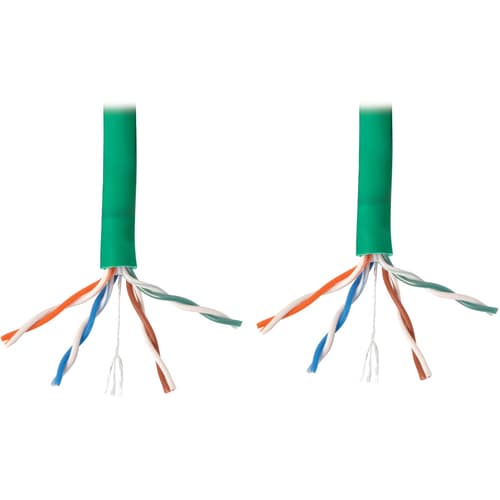

- High-quality 23 AWG 4-pair solid copper wire
- Plenum-rated PVC jacket
- Meets IEEE 802.3ab and ANSI/EIA/TIA 568 standards
Especificaciones técnicas
| Miscellaneous | |
| Country of Origin | South Korea |
| Environmentally Friendly | Yes |
| TAA Compliant | Yes |
| Physical Characteristics | |
| Shipping Weight (Approximate) | 31 lb (14061.36 g) |
| Shipping Height | 13.78" (350.01 mm) |
| Shipping Width | 14.17" (359.92 mm) |
| Product Color | Green |
| Color Family | Green |
| General Information | |
| Product Type | Network Cable |
| Manufacturer Part Number | N224-01K-GN |
| Manufacturer Website Address | https://tripplite.eaton.com/ |
| Manufacturer | Eaton Corporation |
| Product Model | N224-01K-GN |
| Product Name | Cat6 Gigabit Bulk Solid-Core Plenum-Rated PVC Cable, Green, 1000 ft |
| Package Type | Bulk |
| Brand Name | Tripp Lite by Eaton |
| Technical Information | |
| Cable Length | 1000 ft (304.80 m) |
| Data Transfer Rate | 1 Gbit/s |
| Device Supported | Network Device |
| Cable Type | Category 6 |
| Connector Type on First End | Bare Wire |
| Connector Type on Second End | Bare Wire |
| American Wire Gauge | 23 AWG |
| Connector on First End Details | 1 x Bare Wire |
| Connector on Second End Details | 1 x Bare Wire |
