Isolate Medical Equipment on an Ethernet Network to Enhance Patient Safety
Tripp Lite's N234-MI-1005 medical Ethernet isolator protects staff, patients and medical technology equipment in patient care vicinities from dangerous leakage currents that can travel through a copper-based Ethernet network. It effectively isolates medical equipment to protect patients, yet allows data to flow at Gigabit Ethernet speeds.
Comply with IEC 60601-1 for Use in the Patient Care Vicinity
The N234-MI-1005 complies with IEC 60601-1 and EMC/IEC 60601-1-2 safety standards for a network connection between a medical device and an Ethernet network or non-medical device (PC or laptop). Because it meets IEC 60601-1 standards, this medical network isolator can be used in patient care vicinities. For example, you can use this 60601-1 network isolator in the connection between a clinic's network and the PC of a prolonged EEG system. (Note: You can only connect network components that comply with IEEE 802.3 or IEEE 802.3ab. You cannot connect telecommunication appliances, voltage supplies or similar devices.)

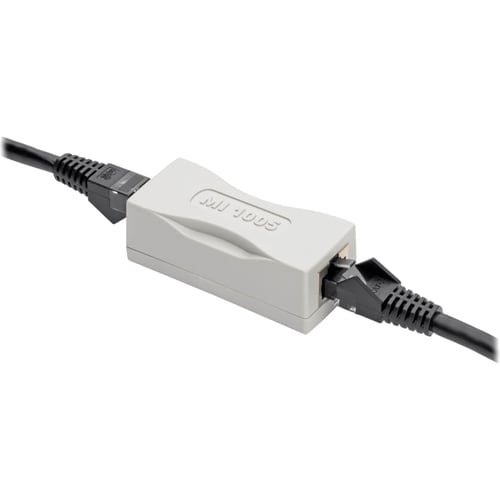

Install In-Line on an Ethernet Network
This Ethernet network isolator has two RJ45 ports and acts as a coupler, joining two tested and approved Cat6 cables to complete the connection between compatible medical equipment and a computer or data network. Because the cables are removable, you can replace a failed cable without replacing the isolator. Completely plug and play, this RJ45 isolator does not require software, drivers or a power supply.
Comply with TAA Requirements
The N234-MI-1005 complies with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
One-Year Warranty
The N234-MI-1005 is backed by a one-year warranty, ensuring reliability and performance.
Typical Applications
- Isolate medical equipment connected to an Ethernet network to protect patients in patient care vicinities
- Connect an EMG measuring station with an analysis computer in a doctor's consulting room
- Connect the PC of a prolonged EEG system to a clinic's network
System Requirements
- Network components that comply with IEEE 802.3 or IEEE 802.3ab (10/100/1000BASE-T, twisted-pair)
- Cat6 network cable
Package Includes
- N234-MI-1005 Medical Ethernet Isolator - For Patient Care Vicinity
- Owner's manual
Especificaciones técnicas
| Physical Characteristics | |
| Weight (Approximate) | 1.76 oz (50 g) |
| Product Color | Gray |
| Color Family | Gray |
| General Information | |
| Product Type | Medical Ethernet Isolator |
| Manufacturer Part Number | N234-MI-1005 |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Manufacturer | Eaton Corporation |
| Product Model | N234-MI-1005 |
| Product Name | Medical Ethernet Isolator - RJ45, For Patient Care Vicinity, IEC 60601-1 |
| Brand Name | Tripp Lite by Eaton |
| Miscellaneous | |
| Application/Usage | Network |
| Package Contents |
|
| Country of Origin | Germany |
| Environmentally Friendly | Yes |
| TAA Compliant | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Restriction of Hazardous Substances (RoHS) |
