400 GbE Cable Supports High Bandwidths for High-Density Data Networking

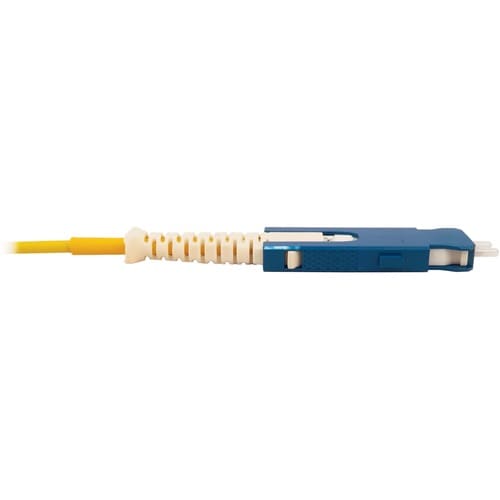

The N383S-05M is a premium singlemode fiber optic cable that supports 400 Gb Ethernet speeds for transmitting data and voice signals. Its high bandwidth is ideal for hyperscale, edge, enterprise and colocation data center interconnect (DCI) applications where density and speed are both very important.
Compact SN Connectors Designed for the Latest OSFP/QSFP-DD Transceivers
This 400 Gb cable features duplex SN connectors on both ends. SN connectors are four times smaller than standard LC connectors and provide individual and independent duplex fiber support for OSFP/QSFP-DD transceivers. Push/pull boots encourage dense vertical stacking within a crowded patch panel or switch and make the cable easy to install or remove with just one hand. The switchable SN/UPC ends let you make quick polarity changes in the field without tools or the need to re-terminate the connectors.
Yellow-Colored Jacket Helps Avoid Misidentification That Can Cause Costly Downtime
The OS2-rated cable has a yellow jacket to identify it as singlemode in a crowded patch panel or switch and prevent it from becoming accidentally disconnected. The round low-smoke zero-halogen (LSZH) jacket limits the amount of toxic smoke emitted in case of combustion, making it suitable for poorly ventilated areas.
- Features Push-Pull Boot
- Offers a reliable network connectivity
- Features Fiber Optic cable type
Especificaciones técnicas
| Miscellaneous | |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) | |
| Physical Characteristics | |
| Shipping Weight (Approximate) | 0.64 oz (18.14 g) |
| Shipping Height | 9" (228.60 mm) |
| Shipping Width | 7" (177.80 mm) |
| Jacket Color | Yellow |
| Connector Color | White |
| Blue | |
| General Information | |
| Product Type | Network Cable |
| Manufacturer Part Number | N383S05M |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Manufacturer | Eaton Corporation |
| Product Model | N383S-05M |
| Product Name | N383S-05M 400G Singlemode 9/125 OS2 Fiber Cable, Yellow, 5 m (16.4 ft.) |
| Brand Name | Tripp Lite by Eaton |
| Technical Information | |
| Cable Length | 16.4 ft (5 m) |
| Data Transfer Rate | 400 Gbit/s |
| Device Supported | Transceiver |
| Patch Panel | |
| Network Device | |
| Switch | |
| Jacket Type | OFNR |
| LSZH | |
| Features | Push-Pull Boot |
| Bendable | |
| Cable Type | Fiber Optic |
| Connector Type on First End | SN/UPC Network - Male |
| Connector Type on Second End | SN/UPC Network - Male |
| Fiber Optic Mode | Single-mode |
| Connector on First End Details | 2 x SN/UPC Network - Male |
| Connector on Second End Details | 2 x SN/UPC Network - Male |
| Fiber Optic Cable Core/Cladding Specification | 9/125 µm |
