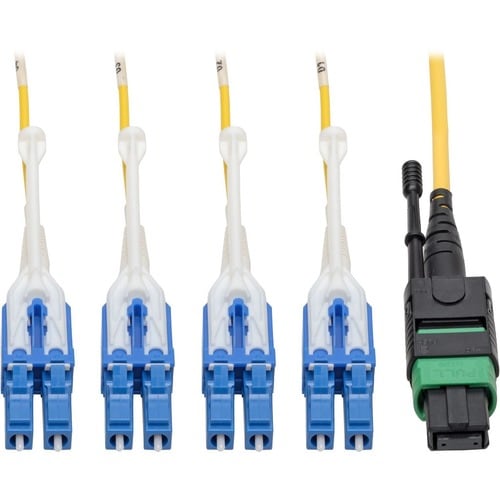

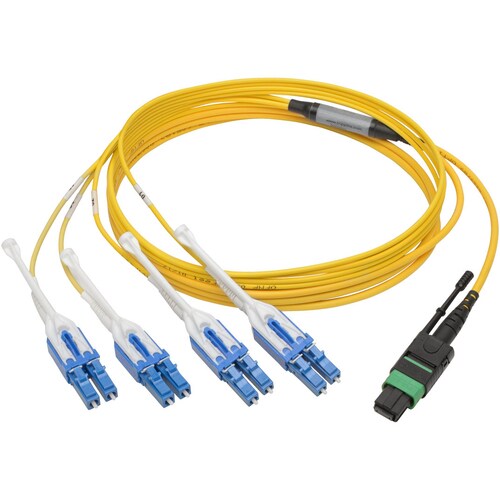

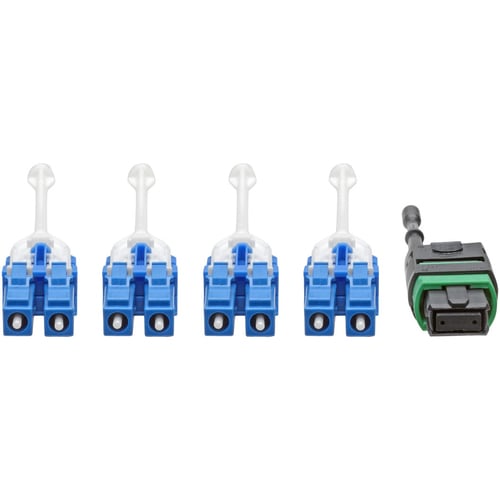

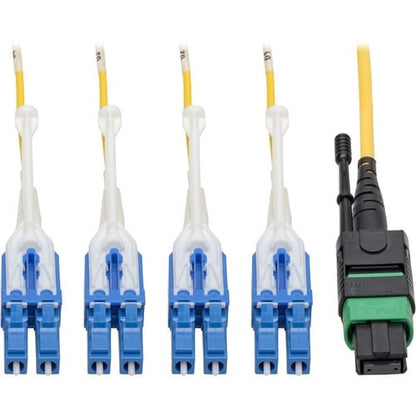

The N390-03M-8LC-AP MTP/MPO to 8xLC Singlemode Breakout Patch Cable supports 40/100 Gb Ethernet speeds and is designed for high-density fiber patching between data center MDFs (main distribution frames) and IDFs (intermediate distribution frames) in enterprise installations. It's optimized for QSFP+ 40GBASE-PLR4 and QSFP28 100GBASE-PSM4 networks. Its plenum-rated jacket makes it ideal for connecting switches, hubs, routers and other high-speed network components in ceilings, walls and ducts.

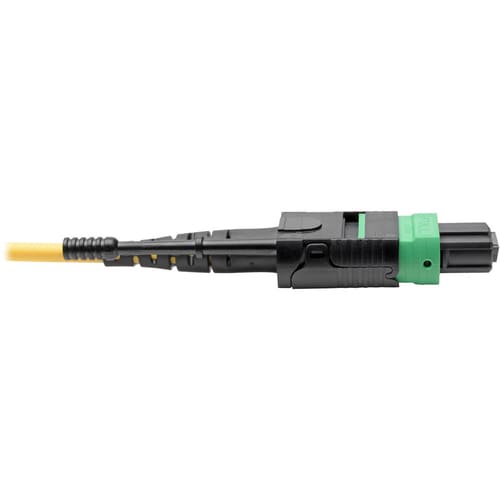

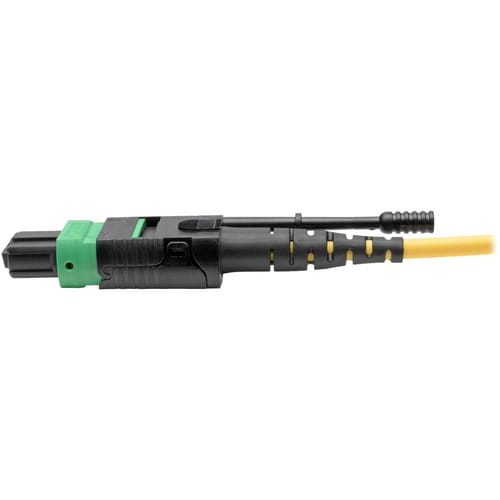

The 12-fiber MTP/MPO connector is about the same size as an SC connector, but is 12 times denser, freeing up rack space for other cables. The APC connector is angled to prevent infrared light entering the fiber from bouncing back into the laser. The N390-03M-8LC-AP is tested for low insertion loss and back reflection on every connector and attenuation loss that meets or exceeds current standards.

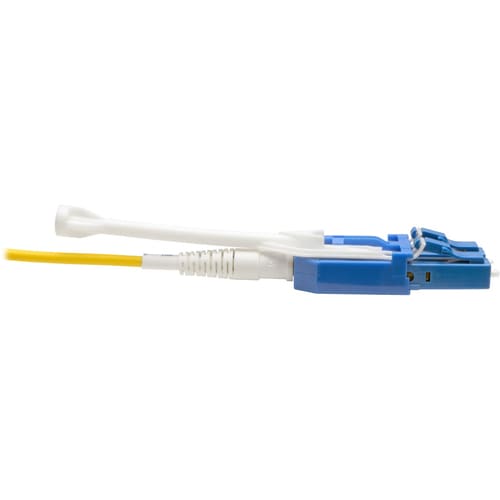

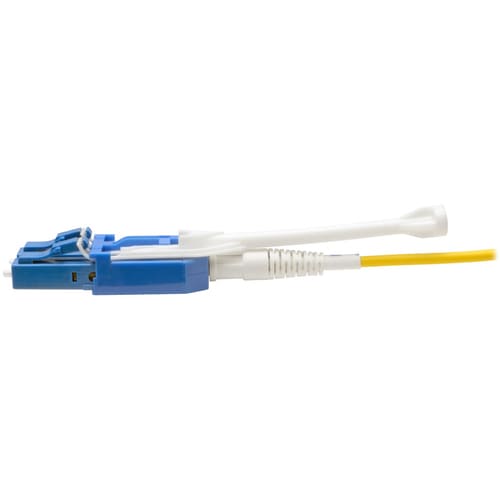

The N390-03M-8LC-AP uses eight fibers to fully transmit 40GBASE-PLR4 with four fibers transmitting at 10 Gbps in each direction. Its slim, space-saving uniboot design allows easier cable management. The LC UPC connector's premium-grade ceramic ferrule is designed for fast applications of 10 GbE and higher.

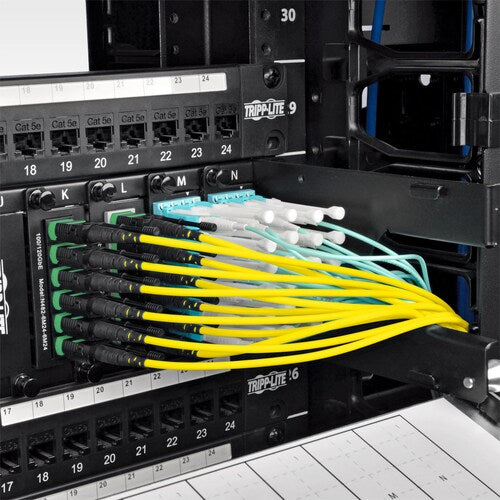

The singlemode cable is colored yellow for instant identification in a crowded switch or patch panel. Push/pull tab connectors are easily accessible in high-density data center environments and make the plug-and-play cable easy to install and remove with one hand.
- Features Angled Connector
- Allows you to access all of the networked data, swiftly and securely
- Features Fiber Optic cable type
- Fully compatible with network devices
Especificaciones técnicas
| Miscellaneous | |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Physical Characteristics | |
| Product Color | Yellow |
| Color Family | Yellow |
| General Information | |
| Product Type | Network Cable |
| Manufacturer Part Number | N390-03M-8LC-AP |
| Manufacturer Website Address | https://tripplite.eaton.com/ |
| Manufacturer | Eaton Corporation |
| Product Model | N390-03M-8LC-AP |
| Product Name | N390-03M-8LC-AP MTP/MPO to 8xLC Singlemode Breakout Patch Cable, Yellow, 3 m |
| Brand Name | Tripp Lite by Eaton |
| Technical Information | |
| Cable Length | 10 ft (3.05 m) |
| Data Transfer Rate | 100 Gbit/s |
| Device Supported | Network Device |
| Hub | |
| Router | |
| Switch | |
| Features | Angled Connector |
| Uniboot Connector | |
| Cable Characteristic | Patch Cable |
| Cable Type | Fiber Optic |
| Connector Type on First End | MTP/MPO Network - Female |
| Connector Type on Second End | LC Network - Male |
| Fiber Optic Mode | Single-mode |
| Connector on First End Details | 1 x MTP/MPO Network - Female |
| Connector on Second End Details | 8 x LC Network - Male |
| Fiber Optic Cable Core/Cladding Specification | 8.3/125 µm |
