Acerca del producto

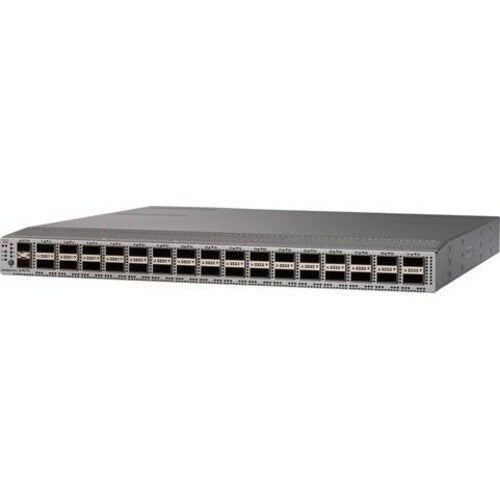

The Cisco Nexus 3132C-Z is the 32-port 100-Gbps programmable architecture switch, enabled with major data center features designed for software-defined data centers. This 1-Rack-Unit (1RU) model offers wire-rate Layer 2 and 3 switching.
The Cisco Nexus 3132C-Z is a Quad Small Form-Factor Pluggable (QSFP) switch with 32 QSFP28 ports. Each QSFP28 port can operate at 10, 25, 40, 50, and 100 Gbps, up to a maximum of 128 x 25-Gbps ports.
It is a member of the Cisco Nexus 3100 platform and runs the industry-leading Cisco®NX-OS Software operating system, providing customers with comprehensive features and functions that are widely deployed. The Cisco Nexus 3132C-Z supports both forward and reverse (port-side exhaust and port-side intake) airflow schemes with AC and DC power inputs.
The Cisco Nexus 3132C-Z has the following hardware configuration:
- 32 fixed 100-Gigabit Ethernet QSFP28 ports
- Beacon LED
- Environment LED
- Status LED
- Four lane-selected LEDs
- Dual redundant power supplies
- Redundant (3+1) fans
- Two 10-Gbps SFP ports
- One RJ45 console port
- One RJ45 and SFP management port
- One USB port
- Optimize the performance of business networks with 10 Gigabit Ethernet connectivity
- Rack mounting enables you to organize wires & secure cables for professional installation
- Can work as layer 3 routing for scalable network design
- Managed switch provides a reliable foundation for your network
- Management capability provides control over setup and configuration of your network
- Built-in power supply to ensure all components are being supplied with accurate voltage
Especificaciones técnicas
| Management & Protocols | |
| Manageable | Yes |
| Network & Communication | |
| Layer Supported | 3 |
| I/O Expansions | |
| Expansion Slot Type | QSFP28 |
| Total Number of Expansion Slots | 34.0 |
| Power Description | |
| Power Source | Power Supply |
| Redundant Power Supply Supported | Yes |
| Interfaces/Ports | |
| Modular | Yes |
| Port/Expansion Slot Details | 32 x 100 Gigabit Ethernet Expansion Slot |
| 2 x 10 Gigabit Ethernet Expansion Slot | |
| Miscellaneous | |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Media & Performance | |
| Network Technology | 10GBase-X |
| 100GBase-X | |
| Ethernet Technology | 10 Gigabit Ethernet |
| 100 Gigabit Ethernet | |
| Media Type Supported | Optical Fiber |
| Physical Characteristics | |
| Weight (Approximate) | 13.80 lb (6259.574706 g) |
| Form Factor | Rack-mountable |
| Height | 17.30" (439.42 mm) |
| Width | 1.72" (43.69 mm) |
| Depth | 18.50" (469.90 mm) |
| General Information | |
| Product Type | Layer 3 Switch |
| Manufacturer Part Number | N3K-C3132C-Z= |
| Manufacturer Website Address | http://www.cisco.com |
| Manufacturer | Cisco Systems, Inc |
| Product Model | 3132C-Z |
| Product Name | Nexus 3132C-Z Switch with 32 QSFP28 Spare |
| Product Line | Nexus |
| Product Series | 3000 |
| Brand Name | Cisco |
