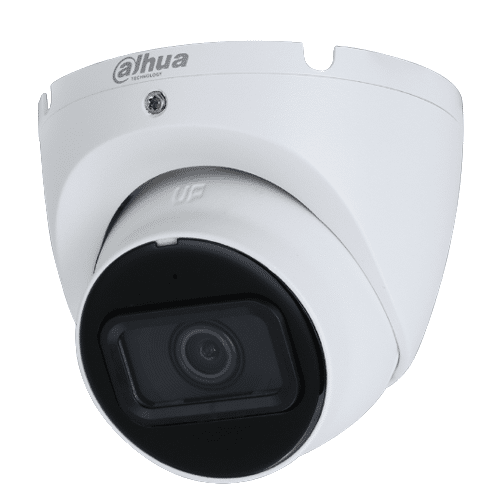

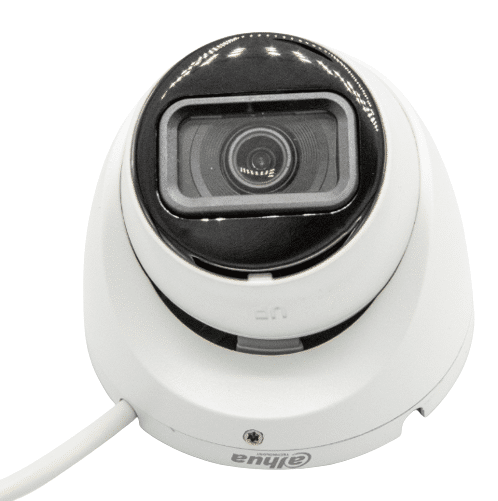

Dahua N41CJ02 4MP E-VU Eyeball 2.8mm Overview
High-resolution video is provided by the Dahua 4MP Entry-level Viewing (E-VU) Camera Series in a portable and affordable form factor. Smart H.265+ video compression, a feature of the camera, lowers bandwidth and storage needs without compromising video quality. The camera is a great option for a variety of small to mid-size applications at an affordable price because of its elegant blend of aesthetics and easy mounting options.
Dahua N41CJ02 4MP E-VU Eyeball 2.8mm Features
- Smart H.265+
- A scene-adaptive encoding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure, and intelligent noise reduction are used in Smart H.265+, the H.265 codec's optimized implementation, to deliver high-quality video without taxing the network. Compared to standard H.265 video compression, smart H.265+ technology reduces bit rate and storage requirements by up to 70%.
- Smart IR Illumination
- In complete darkness or low light, detailed images can be captured using IR illumination. The infrared LEDs in the camera's Smart IR technology change their brightness to account for an object's distance. With the help of intelligent IR technology, images aren't whitened by IR LEDs as they get nearer to the camera. The camera's built-in infrared illumination offers high performance up to 30 meters away in extremely low light conditions (98.43 ft).
- Arctic-Pro
- In order to ensure flawless operation in temperatures as low as -40°F (-40°C), the Dahua ArcticPro Series of extreme-environment cameras combines temperature-tolerant components with a waterproof enclosure. The absence of a heater lowers the camera's power requirements and lowers operating expenses. The Dahua ArcticPro Series offers a camera to meet the most demanding requirements for applications that demand high-resolution video with advanced features in extremely cold environments.
- Cybersecurity
- Several important cybersecurity technologies, such as security authentication and authorization, access control, trusted protection, encrypted transmission, and encrypted storage, are included in the Dahua network cameras lineup. These developments strengthen the camera's defenses against intrusion and data security.
- Environmental
- The IP67 rating qualifies it for demanding outdoor applications after being put through rigorous dust and water immersion tests and receiving certification.
Dahua N41CJ02 4MP E-VU Eyeball 2.8mm Specifications
- Camera
- Image Sensor: 1/3-in. 4MP Progressive-scan CMOS
- Effective Pixels: 2560 (H) × 1440 (V)
- RAM/ROM: 64 MB / 16 MB
- Scanning System: Progressive
- Electronic Shutter Speed: Auto, Manual; 1/3 s to 1/100000 s
- Minimum Illumination:
- Color, 30 IRE: 0.03 lux at F2.0
- B/W, 30 IRE: 0.003 lux at F2.0
- 0 lux (Illuminator On)
- S/N Ratio: > 56 dB
- IR Distance: Distance up to 30.0 m (98.43 ft)
- IR On/Off Control: Auto, Manual
- IR LEDs: One (1)
- Lens
- Lens Type: Fixed-focal
- Iris Type: Fixed
- Mount Type: M12
- Focal Length: 2.8 mm
- Maximum Aperture: F2.0
- Field of View:
- Horizontal: 90°
- Vertical: 50°
- Diagonal: 107°
- Close Focus Distance: 1.0 m (3.28 ft)
- DORI1 Distance:
- Detect: 68.0 m (223.10 ft)
- Observe: 27.2 m (89.24 ft)
- Recognize: 13.6 m (44.62 ft)
- Identify: 6.8 m (22.31 ft)
- Pan/Tilt/Rotation:
- Range:
- Pan: 0? to 355?
- Tilt: 0? to 78?
- Rotation: 0? to 355?
- Range:
- Video:
- Compression: Smart H.265+, H.265, Smart H.264+, H.264, H.264B, MJPEG
- Streaming Capability: Two (2) Streams
- Resolution: 4MP (2560 × 1440), 3MP (2304 × 1296), 1080p (1920 × 1080), 1.3MP (1280 × 960), 720p (1280 x 720), D1 (704 x 480), VGA (640 x 480), CIF (352 x 240)
- Frame Rate:
- Main Stream: 2560 × 1440 at 1 to 30 fps
- Sub Stream: 704 × 480 at 1 to 30 fps
- Bit Rate Control: CBR/VBR
- Bit Rate:
- H.264: 32 kbps to 4096 Kbps
- H.265: 12 kbps to 4096 Kbps
- Day/Night: Auto (ICR), Color, B/W
- Backlight: BLC, HLC, DWDR
- White Balance: Auto, Natural, Street Lamp, Outdoor, Manual, Regional Custom
- Gain Control: Auto, Gain Priority, Shutter Priority, Manual
- Noise Reduction: 3D DNR
- Motion Detection: Off, On (4 Zones, Rectangle)
- Region of Interest: Off, On (4 Zones)
- Smart IR: Support
- Image Rotation: 0°, 180° (0°by default)
- Mirror: Off, On
- Privacy Masking: Off, On (4 Areas)
- Network
- Ethernet: RJ-45 (10/100 Base-T)
- Protocol: IPv4, IPv6, HTTP, TCP, UDP, ARP, RTIP, RTSP, SMTIP, FTIP, DHCP, DNS, DDNS, NTP, Multicast
- Interoperability: ONVIF (Profile S, T), CGI, P2P, SDK, API
- Max. User Access: 6 (Total Bandwidth: 48 MB)
- Edge Storage: FTP
- Web Viewer: IE, Chrome, Firefox
- Management Software: SmartPSS Lite, DMSS
- Mobile Operating System: iOS, Android
- Cybersecurity:
- Video Encryption Configuration Encryption, Digest, WSSE, Account Lockout, Security Logs, Generating and Importing X.509 Certification, HTTPS, Trusted Boot, Trusted Execution, Trusted Upgrade
- Certifications:
- Safety: EN 62368-1
- Electromagnetic Compatibility (EMC):
- FCC CFR 47 Part 15 Subpart B
- Electromagnetic Compatibility Directive 2014/30/EU
- Electrical:
- Power Supply: 12 VDC or PoE (802.3af)
- Power Consumption:
- Basic: 1.6 W (12 VDC), 2.4 W (PoE)
- Maximum (ICR + H.265 + IR Intensity): 3.6 W (12 VDC), 4.7 W (PoE)
- Environmental:
- Operating Conditions: –40°C to +60°C (–40°F to +140°F), Less than or equal to 95% RH
- Storage Conditions: –40°C to +60°C (–40°F to +140°F)
- Ingress Protection: IP67
- Construction:
- Casing: Metal
- Dimensions: 85.6 mm x 94.0mm (3.4 in. x 3.7 in.)
- Net Weight: 0.32 kg (0.71 lb)
- Gross Weight: 0.43 kg (0.95 lb)
- Intelligent Video System Functions:
- Standard Features:
- Tampering with the camera.
- Error sending or receiving data over the network.
- Unauthorized access to the camera.
- Motion: An object moves through any part of the scene.
- Standard Features:
- Ordering Information:
- Type: 4MP Camera
- Part Number: N41CJ02
- Description: 4MP E-VU IR Fixed-focal Eyeball Network Camera
- Accessories, optional:
- DH-PFA13A-E: Junction Box
- PFA130-E: Waterproof Junction Box
- PFB204W: Wall Mount Bracket
- PFA152-E: Pole Mount
