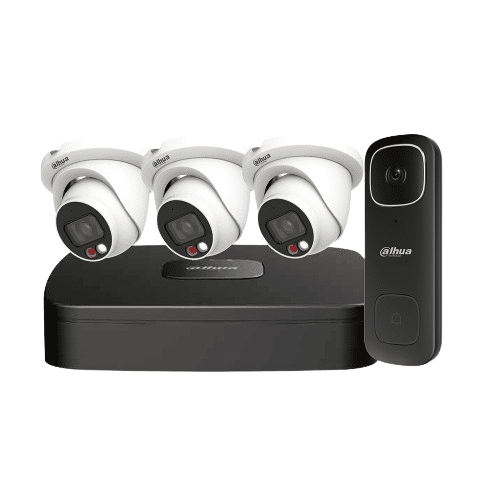

The Dahua Video Doorbell Network Security System has everything needed to rapidly set up, install, and use a full-featured video security system. The NVR has built-in motion detection algorithms, alarm triggers, and customisable recording modes; the WiFi doorbell gives 5MP video and two-way communication; and the IP cameras provide 4MP video quality. The NVR may be readily connected to the doorbell and network cameras for complete system recording. Furthermore, to monitor live video, set up and respond to alerts, and share video with authorised users, the Video Doorbell and the NVR are compatible with the Dahua DMSS mobile application.
Four-channel Basic Night Color (VU-MORE Color) Video Doorbell Security System Features:
- 4MP Network Cameras
- 1/3-in. 4MP Progressive-scan CMOS Sensor
- 4MP at 20 fps Maximum Resolution, 2.8 mm Fixed Lens
- Analytics+ Function: Perimeter Protection, Smart Motion Detection+
- Smart Dual Illumination — IR and White Light
- Basic Night Color Technology for Extreme Low-light Conditions
- 5MP WiFi Video Doorbell
- 1/2.7-in. 5MP Progressive-scan CMOS Sensor
- Dual-band WiFi, IEEE802.11a/b/g/n/ac, 2.4 GHz and 5 GHz options
- H.265 and H.264 Dual Video Compression
- 2560 x 1920 at 15 fps Maximum Resolution
- 4K Network Video Recorder
- 2 TB Pre-installed Hard Disk Drive
- Supports Remote Configuration and Management of Network Cameras
- Smart H.265+ and Smart H.264+ Dual Codec
- Maximum 80 Mbps Recording Bandwidth
Four-channel Basic Night Color (VU-MORE Color) Video Doorbell Security System Specifications:
N42DJS2 4MP VU-MORE Color Eyeball Network Camera
- Camera
- Image Sensor 1/3-in. CMOS
- Effective Pixels 2688 (H) × 1520 (V), 4MP
- Scanning System Progressive
- RAM/ROM 128 MB/128 MB
- Electronic Shutter Speed Auto, Manual, 1/3 s to 1/100,000 s
- Minimum Illumination0.008 lux at F1.6 (Color, 30 IRE) 0.0008 lux at F1.6 (B/W, 30 IRE) 0 lux (Illuminator on)
- S/N Ratio > 56 dB
- IR Distance 30 m (98.43 ft) (IR), 15 m (49.21 ft) (Warm light)
- IR On/Off Control Auto; Manual
- Illuminators One (1) IR LED, One (1) Warm Light
- Lens
- Lens Type Fixed-focal
- Iris Type Fixed
- Mount Type M12
- Focal Length 2.8 mm
- Maximum Aperture F1.6
- Angle of View
- Horizontal 95°
- Vertical 52°
- Diagonal 114°
- Close Focus Distance 0.9 m (2.95 ft)
- DORI1 Distance
- Detect 63.6 m (208.66 ft)
- Observe25.4 m (83.33 ft)
- Recognize 12.7 m (41.67 ft)
- Identify 6.4 m (20.99 ft)
- Pan / Tilt / Rotation
- Pan: 0° to 360°
- Tilt: 0° to 78°
- Rotation: 0° to 360°
- Video:
- Compression Smart H.265+, Smart H.264+, H.264H, H.265, H.264, H.264B, MJPEG (Only supported by the sub stream)
- Streaming Capability Two (2) Streams
- Resolution 4MP (2688 × 1520), 3.6MP (2560 × 1440), 3MP (2304 × 1296), 1080p (1920 × 1080), 1.3MP (1280 ×960), 720p (1280 × 720), D1 (704 × 480), VGA (640 × 480), CIF (352 × 240)
- Frame Rate
- Main Stream 2688 × 1520 at 20 fps
- Sub Stream 704 × 480 at 20 fps
- Bit Rate H.264: 32 kbps to 6144 kbps H.265: 12 kbps to 6144 kbps
- Bit Rate Control CBR, VBR
- Day/Night Auto (ICR); Manual
- BLC Mode BLC , HLC, True WDR (120 dB)
- White Balance Auto, Natural, Street Lamp, Outdoor, Manual, Regional, Custom
- Gain Control Auto, Gain Priority, Shutter Priority, Manual
- Noise Reduction 3DNR
- Motion Detection Off, On (4 Zones, Rectangle)
- Region of Interest Off, On (4 Zones)
- Smart IR Supported
- Image Rotation 0°, 90°, 180°, 270°
- Mirror Off, On
- Privacy Masking Off, On (4 Areas, Rectangle)
- Audio
- Built-in Microphone Yes
- Compression G.711a, G.711Mu, PCM, G.726
- Network
- Ethernet RJ-45 (10/100 Base-T)
- Protocol IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, NTP, Multicast, ICMP, IGMP
- Interoperability ONVIF (Profile S, Profile T), CGI, P2P, Milestone, SDK, API
- Maximum User Access 6 (Total bandwidth: 36 M)
- Edge Storage FTP, SFTP, Micro SD Card Slot (Maximum 256 GB)
- Web Viewer IE, Chrome, Firefox
- Management Software DSS, DMSS
- Mobile Operating System iOS, Android
- Cyber Security Configuration Encryption, Trusted Execution, Digest, Security Logs, WSSE, Account Lockout, Syslog, Video Encrypton, 802.1x, IP/MAC Filtering, HTTPS, Trusted Upgrade, Trusted Boot, Firmware Encryption, Generating and Importing X.509 Certification
- Certifications
- Safety EN 62368-1
- Electromagnetic Compatibility (EMC) FCC CFR 47 Part 15 Subpart B Electromagnetic Compatibility Directive 2014/30/ EU
- Electrical
- Power Supply 12 VDC or PoE (802.3af)
- Power Consumption:
- Basic 1.9 W (12 VDC), 2.4 W (PoE)
- Maximum 5.2 W (12 VDC), 5.9 W (PoE) (H.265 + Intelligence + WDR + Warm Light)
- Environmental
- Operating Conditions –40°C to +60°C (–40°F to +140°F), < 95% RH
- Storage Conditions –40°C to +60°C (–40°F to +140°F)
- Ingress Protection IP67
- Construction
- Casing Metal
- Dimensions 100.9 mm × ?109.9 mm (3.97 in. × ?4.33 in.)
- Net Weight 0.37 kg (0.82 lb)
- Gross Weight 0.51 kg (1.12 lb)
- Analytics+ Functions
- Perimeter Protection
- Detects human or vehicle violations using the following methods: Tripwire: a target crosses a defined line. Intrusion: a target enters or exits a defined perimeter.
- Monitors a combination of detection methods.
- Search and retrieve video based on target type.
- Intelligent Search: Works with a Smart NVR to perform and refine intelligent searches, event extraction and merging to event videos
- Smart Motion Detection+2
- Differentiates between and classifies human and vehicle objects.
- Filters false alarms due to leaves, lights, animals, and other inconsequential objects.
- Extracts human or vehicle objects from recorded video for quick target search and retrieval.
- Perimeter Protection
- Intelligent Video System Functions (IVS triggers an alarm and takes a defined action for the following events):
- Standard Features:
- Tampering with the camera.
- Error writing to an onboard Micro SD card.
- Error sending or receiving data over the network.
- Unauthorized access to the camera.
- IP Address Conflict
- Standard Features:
N41C1P2 Four-channel 4K Network Video Recorder (2 TB)
- System
- Main Processor Industrial-grade Embedded Processor
- Operating System Embedded Linux
- Audio and Video
- IP Camera Input Four (4) Channels
- Audio Input: One (1) Channel, RCA Output: One (1) Channel, RCA
- Analytics+ Recording4
- Perimeter Protection
- Channels Four (4)
- Search By Channel, Time, and Event Type
- Smart Motion Detection+
- Channels Four (4)
- Search By Target Classification (Human or Vehicle)
- Perimeter Protection
- Display
- Interface One (1) HDMI, One (1) VGA
- Native Output Resolution 3840 x 2160, 1920 x 1080, 1280 x 1024, 1280 x 720
- Maximum Decoding Two (2) Channel of 8MP at 30 fps Four (4) Channels of 4MP at 30 fps
- Multi-screen Display 1/4
- On-screen Display Camera Title, Time, Video Loss, Camera Lock, Motion Detection, Recording
- Recording
- Video Compression Smart H.265+, H.265, Smart H.264+, H.264, MJPEG
- Audio Compression PCM, G.711A, G.711Mu, G.726
- Supported IP Camera Resolution 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 720p, D1
- Maximum Recording Bandwidth 80 Mbps
- Record Mode Manual Recording; Alarm Recording; SMD Recording; Smart Recording
- Video Detection and Alarm
- General Alarms Motion Detection, Privacy Masking, Video Loss, Scene Changing, PIR Alarm, IPC External Alarm
- Anomaly Alarms Camera Disconnection, Storage Error, Disk Full, IP Conflict, MAC Conflict, Login Locked, Cybersecurity Exception
- Analytics+ Alarms Face Detection, Perimeter Protection (Intrusion and Tripwire), IVS, People Counting, Heat Map, SMD Alarms
- Alarm Actions Recording, Snapshot, Audio, Buzzer, Log, Preset, Email
- Playback and Backup
- Sync Playback 1/4
- Search Mode Time/Date, Alarm, MD and Exact Search (Accurate to One (1) Second), Smart Search
- Playback Function Play, Pause, Stop, Rewind, Fast Play, Slow Play, Reverse, By Frame, Full Screen, Backup Selection (Video Clip or File), Partial Zoom, Audio On/Off
- Backup Mode USB Device, Network
- Third-party Support
- Third-party Support Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and Others
- Network
- Ethernet One (1) RJ-45 Port (10/100/1000 Mbps), selfadaptive
- PoE Four (4) Ports (IEEE802.3af/at)
- Network Function HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, SNMP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, DDNS, FTP, Alarm Server, IP Search (Support Dahua IP Camera, DVR, NVS), P2P, Auto-register
- Maximum User Access 128
- Mobile Operating System iOS, Android
DH-DB6I-CAN 5MP WiFi Video Doorbell
- Camera
- Image Sensor 1/2.7-in. 5MP CMOS
- Effective Pixels 2560 x 1920
- RAM/ROM 256 MB / 128 MB
- Electronic Shutter Speed Auto/Manual 1/3 s to 1/100,000 s
- Scanning System Progressive
- IR Distance 5.0 m (16.50 ft)
- IR Control Automatic
- IR Illuminator Two (2) LEDs
- White-light Illuminator Built-in, programmable
- Built-in Battery 200 mAh Lithium Battery
- Lens
- Lens Type Fixed-focal
- Lens Mount M8
- Focal Length 2.2 mm
- Maximum Aperture F2.0
- Angle of View
- Horizontal 124°
- Vertical 92°
- Diagonal 164°
- Iris Control Fixed
- Close Focus Distance 0.80 m (2.62 ft)
- DORI Distances¹
- Detect (8 ppf) 44.0 m (144.36 ft)
- Observe (19 ppf) 17.60 m (57.74 ft)
- Recognize (38 ppf) 8.80 m (28.87 ft)
- Identify (76 ppf) 4.40 m (14.44 ft)
- Video
- Video Compression H.265, H.264
- Resolution
- High 2560 x 1920 at 15 fps
- Medium 1440 x 1080 at 15 fps
- Low 640 x 480 at 15 fps
- Streaming Capability Two (2) Streams
- Frame Rate
- Main Stream 2560 x 1920 at 15 fps
- Sub Stream 640 x 480 at 15 fps
- Video Bit Rate
- H.264: 32 kbps to 8192 kbps
- H.265: 32 kbps to 8192 kbps
- Day/Night Auto (ICR), Color, B/W
- WDR Digital WDR
- Optical Features White Balance, Smart Illumination
- Noise Reduction 3D NR
- Motion Detection On, Off
- Audio
- Interface
- Input One (1) Built-in Microphone
- Output One (1) Built-in Speaker
- Two-way Talk: Three (3) built-in pre-recorded messages plus three (3) customized recorded messages
- Compression G.711A, G.711Mu, PCM
- Audio Sampling 8 KHz, 16 KHz, 32 KHz
- Interface
- WiFi
- 2.4 GHz IEEE802.11b/g/n: 2400 to 2483.5 MHz, RF POWER ?30 dBm
- 5 GHz IEEE802.11a/n/ac
- 5250 to 5350 MHz, 5470 to 5600 MHz, 5650 to 5725 MHz RF POWER ?24 dBm
- 5725 to 5850 MHz RF POWER ?30 dBm
- Network
- Network Protocol IPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; DHCP; DNS; DDNS; QoS; NTP; Multicast; ICMP; IGMP
- Edge Storage Micro SD Card Slot, maximum 256 GB
- Interoperability CGI, P2P, SDK, API
- Mobile Operating System IOS, Android
- Management Software DMSS
- Compatibility
- Any Dahua NVR
- Dahua X5, X7, X82 Series HDCVI DVRs
- Dahua DMSS Mobile Application
- Certifications
- Electromagnetic Compatibility (EMC) 47 CFR FCC Part 15, Subpart B; FCC ID: FCC PART 15C; FCC PART 15E
- Electrical
- Power Supply5 12 VDC to 24 VDC or 16 VAC to 24 VAC, 0.8 A USB (5 VDC±5%, 2 A)²
- Power Consumption
- 5 VDC Basic: 2.3 W Maximum: 3.3 W
- 12-24 VDC Basic: 2.9 W Maximum: 4.8 W
- 16-24 VAC Basic: 2.9 W Maximum: 4.9 W
- Environmental
- Operating Temperature –20° C to +50° C (–4° F to 122° F), Less than 95% RH
- Ingress Protection IP65
- Construction
- Casing Plastic
- Dimensions (L x W x H) 130.0 mm x 45.0 mm x 22.50 mm (5.12 in. x 1.77 in. x 0.88 in.)
- Net Weight 0.11 kg (0.24 lb)
- Gross Weight 0.51 kg (1.12 lb)
- Installation Surface-mount
Especificaciones técnicas
The Dahua Video Doorbell Network Security System has everything needed to rapidly set up, install, and use a full-featured video security system. The NVR has built-in motion detection algorithms, alarm triggers, and customisable recording modes; the WiFi doorbell gives 5MP video and two-way communication; and the IP cameras provide 4MP video quality. The NVR may be readily connected to the doorbell and network cameras for complete system recording. Furthermore, to monitor live video, set up and respond to alerts, and share video with authorised users, the Video Doorbell and the NVR are compatible with the Dahua DMSS mobile application.
Four-channel Basic Night Color (VU-MORE Color) Video Doorbell Security System Features:
- 4MP Network Cameras
- 1/3-in. 4MP Progressive-scan CMOS Sensor
- 4MP at 20 fps Maximum Resolution, 2.8 mm Fixed Lens
- Analytics+ Function: Perimeter Protection, Smart Motion Detection+
- Smart Dual Illumination — IR and White Light
- Basic Night Color Technology for Extreme Low-light Conditions
- 5MP WiFi Video Doorbell
- 1/2.7-in. 5MP Progressive-scan CMOS Sensor
- Dual-band WiFi, IEEE802.11a/b/g/n/ac, 2.4 GHz and 5 GHz options
- H.265 and H.264 Dual Video Compression
- 2560 x 1920 at 15 fps Maximum Resolution
- 4K Network Video Recorder
- 2 TB Pre-installed Hard Disk Drive
- Supports Remote Configuration and Management of Network Cameras
- Smart H.265+ and Smart H.264+ Dual Codec
- Maximum 80 Mbps Recording Bandwidth
Four-channel Basic Night Color (VU-MORE Color) Video Doorbell Security System Specifications:
N42DJS2 4MP VU-MORE Color Eyeball Network Camera
- Camera
- Image Sensor 1/3-in. CMOS
- Effective Pixels 2688 (H) × 1520 (V), 4MP
- Scanning System Progressive
- RAM/ROM 128 MB/128 MB
- Electronic Shutter Speed Auto, Manual, 1/3 s to 1/100,000 s
- Minimum Illumination0.008 lux at F1.6 (Color, 30 IRE) 0.0008 lux at F1.6 (B/W, 30 IRE) 0 lux (Illuminator on)
- S/N Ratio > 56 dB
- IR Distance 30 m (98.43 ft) (IR), 15 m (49.21 ft) (Warm light)
- IR On/Off Control Auto; Manual
- Illuminators One (1) IR LED, One (1) Warm Light
- Lens
- Lens Type Fixed-focal
- Iris Type Fixed
- Mount Type M12
- Focal Length 2.8 mm
- Maximum Aperture F1.6
- Angle of View
- Horizontal 95°
- Vertical 52°
- Diagonal 114°
- Close Focus Distance 0.9 m (2.95 ft)
- DORI1 Distance
- Detect 63.6 m (208.66 ft)
- Observe25.4 m (83.33 ft)
- Recognize 12.7 m (41.67 ft)
- Identify 6.4 m (20.99 ft)
- Pan / Tilt / Rotation
- Pan: 0° to 360°
- Tilt: 0° to 78°
- Rotation: 0° to 360°
- Video:
- Compression Smart H.265+, Smart H.264+, H.264H, H.265, H.264, H.264B, MJPEG (Only supported by the sub stream)
- Streaming Capability Two (2) Streams
- Resolution 4MP (2688 × 1520), 3.6MP (2560 × 1440), 3MP (2304 × 1296), 1080p (1920 × 1080), 1.3MP (1280 ×960), 720p (1280 × 720), D1 (704 × 480), VGA (640 × 480), CIF (352 × 240)
- Frame Rate
- Main Stream 2688 × 1520 at 20 fps
- Sub Stream 704 × 480 at 20 fps
- Bit Rate H.264: 32 kbps to 6144 kbps H.265: 12 kbps to 6144 kbps
- Bit Rate Control CBR, VBR
- Day/Night Auto (ICR); Manual
- BLC Mode BLC , HLC, True WDR (120 dB)
- White Balance Auto, Natural, Street Lamp, Outdoor, Manual, Regional, Custom
- Gain Control Auto, Gain Priority, Shutter Priority, Manual
- Noise Reduction 3DNR
- Motion Detection Off, On (4 Zones, Rectangle)
- Region of Interest Off, On (4 Zones)
- Smart IR Supported
- Image Rotation 0°, 90°, 180°, 270°
- Mirror Off, On
- Privacy Masking Off, On (4 Areas, Rectangle)
- Audio
- Built-in Microphone Yes
- Compression G.711a, G.711Mu, PCM, G.726
- Network
- Ethernet RJ-45 (10/100 Base-T)
- Protocol IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, NTP, Multicast, ICMP, IGMP
- Interoperability ONVIF (Profile S, Profile T), CGI, P2P, Milestone, SDK, API
- Maximum User Access 6 (Total bandwidth: 36 M)
- Edge Storage FTP, SFTP, Micro SD Card Slot (Maximum 256 GB)
- Web Viewer IE, Chrome, Firefox
- Management Software DSS, DMSS
- Mobile Operating System iOS, Android
- Cyber Security Configuration Encryption, Trusted Execution, Digest, Security Logs, WSSE, Account Lockout, Syslog, Video Encrypton, 802.1x, IP/MAC Filtering, HTTPS, Trusted Upgrade, Trusted Boot, Firmware Encryption, Generating and Importing X.509 Certification
- Certifications
- Safety EN 62368-1
- Electromagnetic Compatibility (EMC) FCC CFR 47 Part 15 Subpart B Electromagnetic Compatibility Directive 2014/30/ EU
- Electrical
- Power Supply 12 VDC or PoE (802.3af)
- Power Consumption:
- Basic 1.9 W (12 VDC), 2.4 W (PoE)
- Maximum 5.2 W (12 VDC), 5.9 W (PoE) (H.265 + Intelligence + WDR + Warm Light)
- Environmental
- Operating Conditions –40°C to +60°C (–40°F to +140°F), < 95% RH
- Storage Conditions –40°C to +60°C (–40°F to +140°F)
- Ingress Protection IP67
- Construction
- Casing Metal
- Dimensions 100.9 mm × ?109.9 mm (3.97 in. × ?4.33 in.)
- Net Weight 0.37 kg (0.82 lb)
- Gross Weight 0.51 kg (1.12 lb)
- Analytics+ Functions
- Perimeter Protection
- Detects human or vehicle violations using the following methods: Tripwire: a target crosses a defined line. Intrusion: a target enters or exits a defined perimeter.
- Monitors a combination of detection methods.
- Search and retrieve video based on target type.
- Intelligent Search: Works with a Smart NVR to perform and refine intelligent searches, event extraction and merging to event videos
- Smart Motion Detection+2
- Differentiates between and classifies human and vehicle objects.
- Filters false alarms due to leaves, lights, animals, and other inconsequential objects.
- Extracts human or vehicle objects from recorded video for quick target search and retrieval.
- Perimeter Protection
- Intelligent Video System Functions (IVS triggers an alarm and takes a defined action for the following events):
- Standard Features:
- Tampering with the camera.
- Error writing to an onboard Micro SD card.
- Error sending or receiving data over the network.
- Unauthorized access to the camera.
- IP Address Conflict
- Standard Features:
N41C1P2 Four-channel 4K Network Video Recorder (2 TB)
- System
- Main Processor Industrial-grade Embedded Processor
- Operating System Embedded Linux
- Audio and Video
- IP Camera Input Four (4) Channels
- Audio Input: One (1) Channel, RCA Output: One (1) Channel, RCA
- Analytics+ Recording4
- Perimeter Protection
- Channels Four (4)
- Search By Channel, Time, and Event Type
- Smart Motion Detection+
- Channels Four (4)
- Search By Target Classification (Human or Vehicle)
- Perimeter Protection
- Display
- Interface One (1) HDMI, One (1) VGA
- Native Output Resolution 3840 x 2160, 1920 x 1080, 1280 x 1024, 1280 x 720
- Maximum Decoding Two (2) Channel of 8MP at 30 fps Four (4) Channels of 4MP at 30 fps
- Multi-screen Display 1/4
- On-screen Display Camera Title, Time, Video Loss, Camera Lock, Motion Detection, Recording
- Recording
- Video Compression Smart H.265+, H.265, Smart H.264+, H.264, MJPEG
- Audio Compression PCM, G.711A, G.711Mu, G.726
- Supported IP Camera Resolution 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 720p, D1
- Maximum Recording Bandwidth 80 Mbps
- Record Mode Manual Recording; Alarm Recording; SMD Recording; Smart Recording
- Video Detection and Alarm
- General Alarms Motion Detection, Privacy Masking, Video Loss, Scene Changing, PIR Alarm, IPC External Alarm
- Anomaly Alarms Camera Disconnection, Storage Error, Disk Full, IP Conflict, MAC Conflict, Login Locked, Cybersecurity Exception
- Analytics+ Alarms Face Detection, Perimeter Protection (Intrusion and Tripwire), IVS, People Counting, Heat Map, SMD Alarms
- Alarm Actions Recording, Snapshot, Audio, Buzzer, Log, Preset, Email
- Playback and Backup
- Sync Playback 1/4
- Search Mode Time/Date, Alarm, MD and Exact Search (Accurate to One (1) Second), Smart Search
- Playback Function Play, Pause, Stop, Rewind, Fast Play, Slow Play, Reverse, By Frame, Full Screen, Backup Selection (Video Clip or File), Partial Zoom, Audio On/Off
- Backup Mode USB Device, Network
- Third-party Support
- Third-party Support Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and Others
- Network
- Ethernet One (1) RJ-45 Port (10/100/1000 Mbps), selfadaptive
- PoE Four (4) Ports (IEEE802.3af/at)
- Network Function HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, SNMP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, DDNS, FTP, Alarm Server, IP Search (Support Dahua IP Camera, DVR, NVS), P2P, Auto-register
- Maximum User Access 128
- Mobile Operating System iOS, Android
DH-DB6I-CAN 5MP WiFi Video Doorbell
- Camera
- Image Sensor 1/2.7-in. 5MP CMOS
- Effective Pixels 2560 x 1920
- RAM/ROM 256 MB / 128 MB
- Electronic Shutter Speed Auto/Manual 1/3 s to 1/100,000 s
- Scanning System Progressive
- IR Distance 5.0 m (16.50 ft)
- IR Control Automatic
- IR Illuminator Two (2) LEDs
- White-light Illuminator Built-in, programmable
- Built-in Battery 200 mAh Lithium Battery
- Lens
- Lens Type Fixed-focal
- Lens Mount M8
- Focal Length 2.2 mm
- Maximum Aperture F2.0
- Angle of View
- Horizontal 124°
- Vertical 92°
- Diagonal 164°
- Iris Control Fixed
- Close Focus Distance 0.80 m (2.62 ft)
- DORI Distances¹
- Detect (8 ppf) 44.0 m (144.36 ft)
- Observe (19 ppf) 17.60 m (57.74 ft)
- Recognize (38 ppf) 8.80 m (28.87 ft)
- Identify (76 ppf) 4.40 m (14.44 ft)
- Video
- Video Compression H.265, H.264
- Resolution
- High 2560 x 1920 at 15 fps
- Medium 1440 x 1080 at 15 fps
- Low 640 x 480 at 15 fps
- Streaming Capability Two (2) Streams
- Frame Rate
- Main Stream 2560 x 1920 at 15 fps
- Sub Stream 640 x 480 at 15 fps
- Video Bit Rate
- H.264: 32 kbps to 8192 kbps
- H.265: 32 kbps to 8192 kbps
- Day/Night Auto (ICR), Color, B/W
- WDR Digital WDR
- Optical Features White Balance, Smart Illumination
- Noise Reduction 3D NR
- Motion Detection On, Off
- Audio
- Interface
- Input One (1) Built-in Microphone
- Output One (1) Built-in Speaker
- Two-way Talk: Three (3) built-in pre-recorded messages plus three (3) customized recorded messages
- Compression G.711A, G.711Mu, PCM
- Audio Sampling 8 KHz, 16 KHz, 32 KHz
- Interface
- WiFi
- 2.4 GHz IEEE802.11b/g/n: 2400 to 2483.5 MHz, RF POWER ?30 dBm
- 5 GHz IEEE802.11a/n/ac
- 5250 to 5350 MHz, 5470 to 5600 MHz, 5650 to 5725 MHz RF POWER ?24 dBm
- 5725 to 5850 MHz RF POWER ?30 dBm
- Network
- Network Protocol IPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; DHCP; DNS; DDNS; QoS; NTP; Multicast; ICMP; IGMP
- Edge Storage Micro SD Card Slot, maximum 256 GB
- Interoperability CGI, P2P, SDK, API
- Mobile Operating System IOS, Android
- Management Software DMSS
- Compatibility
- Any Dahua NVR
- Dahua X5, X7, X82 Series HDCVI DVRs
- Dahua DMSS Mobile Application
- Certifications
- Electromagnetic Compatibility (EMC) 47 CFR FCC Part 15, Subpart B; FCC ID: FCC PART 15C; FCC PART 15E
- Electrical
- Power Supply5 12 VDC to 24 VDC or 16 VAC to 24 VAC, 0.8 A USB (5 VDC±5%, 2 A)²
- Power Consumption
- 5 VDC Basic: 2.3 W Maximum: 3.3 W
- 12-24 VDC Basic: 2.9 W Maximum: 4.8 W
- 16-24 VAC Basic: 2.9 W Maximum: 4.9 W
- Environmental
- Operating Temperature –20° C to +50° C (–4° F to 122° F), Less than 95% RH
- Ingress Protection IP65
- Construction
- Casing Plastic
- Dimensions (L x W x H) 130.0 mm x 45.0 mm x 22.50 mm (5.12 in. x 1.77 in. x 0.88 in.)
- Net Weight 0.11 kg (0.24 lb)
- Gross Weight 0.51 kg (1.12 lb)
- Installation Surface-mount
Comparación de productos
Garantía del producto
Garantía estándar del fabricante según corresponda
Política de devoluciones
Garantía de precio
!00% siempre estamos por debajo del precio del mercado.
Explora colecciones de marca
Colecciones
Nuestros servicios
