Acerca del producto
The Cisco Visual Network Index™ forecasts that global IP traffic will increase threefold by 2021, driven by both mobile and wireline traffic. This explosion will be driven by next generation technologies such as 5G for mobile, Remote PHY for cable and Carrier Ethernet evolution. The service provider network of the future will not just provide exponentially higher bandwidth at lower operating costs but will also be capable of enabling new applications such as pervasive mobile broadband, massive IoT, tactile Internet, smart cities, and virtual reality.

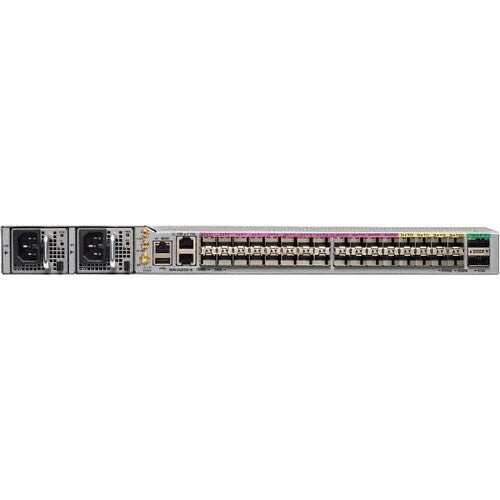

The Cisco® Network Convergence System 540 Routers (NCS 540) are designed for cost-effective delivery of these next-generation services and applications. These routers are temperature-hardened, high-throughput, small form factor, low-power-consumption devices suitable for both outdoor and indoor deployments. They are powered by the industry-leading carrier-class 64-bit version of Cisco IOS XR Software designed for operational efficiency and service agility. Cisco IOS XR Software offers advanced features such as programmability, application awareness, network visibility, and automation. The Cisco NCS 540 series of routers is an intelligent converged access platform which enables service providers to deliver next-level business and entertainment experiences.
- Rack mounting enables you to organize wires & secure cables for professional installation
- Rack-mountable feature for convenient and safe installation of the router
- 100 Gigabit Ethernet provides high bandwidth performance, ease of use and reliability for your network connectivity
- Management capability provides control over the router's setup and configuration
- With 10GBase-X technology, get up to 10 gbps data transfer rate over supported network cable
Especificaciones técnicas
| I/O Expansions | |
| Total Number of Expansion Slots | 34 |
| Interfaces/Ports | |
| Powerline | No |
| Management Port | Yes |
| Power Description | |
| PoE (RJ-45) Port | No |
| Redundant Power Supply Supported | Yes |
| Network & Communication | |
| Network Technology | 10GBase-X |
| 100GBase-X | |
| 25GBase-X | |
| Ethernet Technology | 100 Gigabit Ethernet |
| General Information | |
| Product Type | Router Chassis |
| Manufacturer Part Number | N540-24Z8Q2C-SYS |
| Manufacturer Website Address | http://www.cisco.com |
| Manufacturer | Cisco Systems, Inc |
| Product Name | Router Chassis |
| Brand Name | Cisco |
| Physical Characteristics | |
| Weight (Approximate) | 14 lb (6350.29 g) |
| Form Factor | Rack-mountable |
| Height | 1.72" (43.69 mm) |
| Width | 17.30" (439.42 mm) |
| Depth | 10.02" (254.51 mm) |
| Compatible Rack Unit | 1U |
