Acerca del producto
- SLIM CAT6 CABLE: Streamline cabling in dense setups using Slim Cat6 Cables; 36% slimmer diameter enables greater flexibility than standard Cat6 cabling; Supports Power over Ethernet (PoE++) up to 90W; Low Near-End Crosstalk (NEXT) and Return Loss (RL)
- QUALITY CONSTRUCTION: Snagless 50-micron gold-plated contacts enable a precise fit to minimize signal loss; 28AWG Pure Bare Copper wire delivers consistent power and throughput; Low-Smoke Zero Halogen (LSZH) jacket is flexible for routing in tight spaces
- SAFETY AND RELIABILITY: Compliant with ANSI/TIA-568-C.2 standards for guaranteed Cat6 performance; LSZH jacket is safe for enclosed/poorly ventilated spaces and emits low toxic fumes if combusted; PoE++ specifications complies with IEEE 802.3bt Type 4

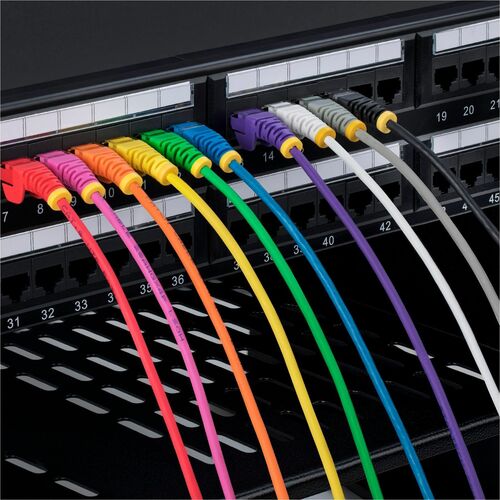

- APPLICATIONS: Ideal for high-density network closets and cable management panels; Slim Cat6 cables enhance accessibility when troubleshooting and promote improved airflow between devices; Connect reliably to PoE devices such as IP or boardroom cameras
- SPECS: 30-foot; Gray; Snagless RJ45; 1 Gbps; 250MHz; 90W PoE++; UTP; Gold-Plated Contacts; LSZH Jacket; 28AWG Pure Bare Copper Wire; 3.6mm (0.14in) Cable O.D.; Fluke Tested; Supports Cat 6 and Cat 5/5e
Especificaciones técnicas
| Miscellaneous | |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Waste Electrical and Electronic Equipment Directive (WEEE) | |
| Physical Characteristics | |
| Material Details |
|
| Product Color | Gray |
| Color Family | Gray |
| General Information | |
| Product Type | Network Cable |
| Manufacturer Part Number | N6PAT30GRS |
| Manufacturer Website Address | http://www.startech.com |
| Packaged Quantity | 1 |
| Manufacturer | StarTech.com |
| Product Name | Slim Cat6 Ethernet Cable - LSZH |
| Brand Name | StarTech.com |
| Technical Information | |
| Cable Length | 30 ft (9.14 m) |
| Data Transfer Rate | 1 Gbit/s |
| Device Supported | Rack |
| PoE Switch | |
| Patch Panel | |
| Network Device | |
| IP Camera | |
| Camera | |
| Jacket Type | LSZH |
| Shielding | No |
| Features | Strain Relief |
| Stranded | |
| Unshielded Twisted Pair (UTP) | |
| Wear Resistant | |
| PoE | |
| PoE++ | |
| Snag Resistant | |
| Break Resistant | |
| Near End Cross Talk (NEXT) | |
| Flame Retardant | |
| Flexible | |
| Number of Conductors | 8 |
| Cable Characteristic | Patch Cable |
| Cable Type | Category 6 |
| Connector Type on First End | RJ-45 Network - Male |
| Connector Type on Second End | RJ-45 Network - Male |
| Connector Plating | Gold |
| American Wire Gauge | 28 AWG |
| Contact Plating | Gold |
| Connector on First End Details | 1 x RJ-45 Network - Male |
| Connector on Second End Details | 1 x RJ-45 Network - Male |
| Number of Pairs | 4 |
| Connector Gender on First End | Male |
| Connector Gender on Second End | Male |
