Network Patch Pannel

Expected delivery 3 to 7 business days (exceptions applied)

Startech

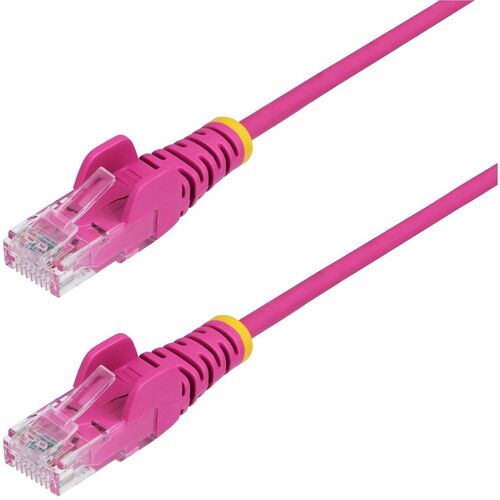

Cable Ethernet CAT6 delgado rosa de 2,13 m de StarTech.com

Cable Ethernet CAT6 delgado rosa de 2,13 m de StarTech.com

Precio habitual $6.06 CAD
Precio habitual $6.79 CAD Precio de oferta $6.06 CAD
-10% OFF Agotado
Los gastos de envío se calculan en la pantalla de pago.
Cable Ethernet CAT6 delgado rosa de 2,13 m de StarTech.com, RJ45 delgado sin enganches, UTP, LSZH, cobre desnudo de 28 AWG, cable de conexión de red delgado, probado por Fluke. Este cable UTP Cat6 delgado admite 1 Gbps y PoE de 90 W; ideal para instalaciones congestionadas; un 36 % más delgado para un mejor flujo de aire; baja diafonía de extremo cercano (NEXT) y pérdida de retorno (RL); contactos chapados en oro; cable de cobre desnudo de 28 AWG; revestimiento LSZH flexible; probado por Fluke.

VPN: N6PAT7PKS SKU: CB395834 CPU: 65030915168

  • CABLE CAT6 DELGADO: Optimice el cableado en configuraciones congestionadas con cables Cat6 delgados; su diámetro 36 % más delgado permite una mayor flexibilidad que el cableado Cat6 estándar; admite alimentación a través de Ethernet (PoE++) hasta 90 W; baja diafonía de extremo cercano (NEXT) y pérdida de retorno (RL)
  • CONSTRUCCIÓN DE CALIDAD: Los contactos chapados en oro de 50 micrones sin enganches permiten un ajuste preciso para minimizar la pérdida de señal; el cable de cobre desnudo puro de 28 AWG proporciona potencia y rendimiento constantes; la cubierta de bajo humo y cero halógenos (LSZH) es flexible para enrutamiento en espacios reducidos
  • SEGURIDAD Y CONFIABILIDAD: Cumple con los estándares ANSI/TIA-568-C.2 para un rendimiento Cat6 garantizado; la cubierta LSZH es segura para espacios cerrados/mal ventilados y emite humos poco tóxicos si se quema; las especificaciones PoE++ cumplen con IEEE 802.3bt Tipo 4

Bloque de texto

Descuento por volumen disponible: solicite cotización.

Ver todos los detalles

Recently Viewed

Cable Ethernet CAT6 delgado rosa de 2,13 m de StarTech.com

Resumen de información del producto

Cable Ethernet CAT6 delgado rosa de 2,13 m de StarTech.com

Acerca del producto

This slim CAT6 cable meets all Category 6 patch cable specifications to deliver a reliable Gigabit and Power over Ethernet (PoE) network connection in high-density network installations.

Improved Airflow

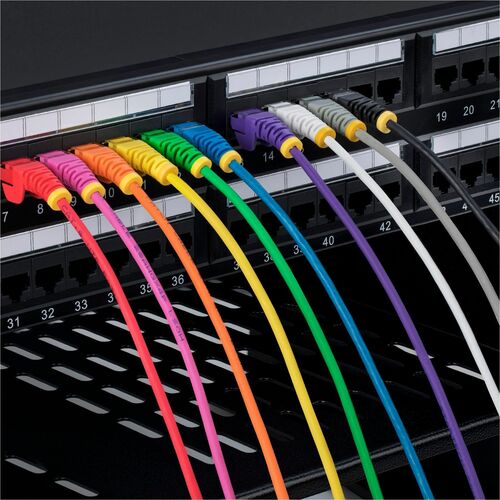

The Slim Cat6 Patch Cord is 36% thinner than standard Cat6 Ethernet cables, enabling greater airflow and heat dissipation in confined spaces. The Slim Cat6 Ethernet cable is also more flexible, for easier cable routing in crowded network racks and patch panels.

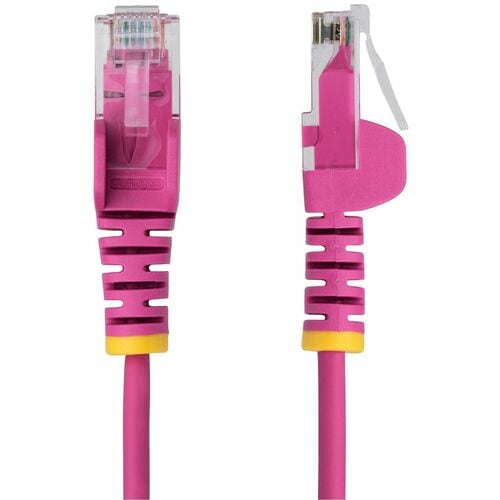

This cable features snagless connectors that protect the RJ45 clips during installation, reducing snags or breakage when routing through narrow gaps or in between devices.

Durable Construction

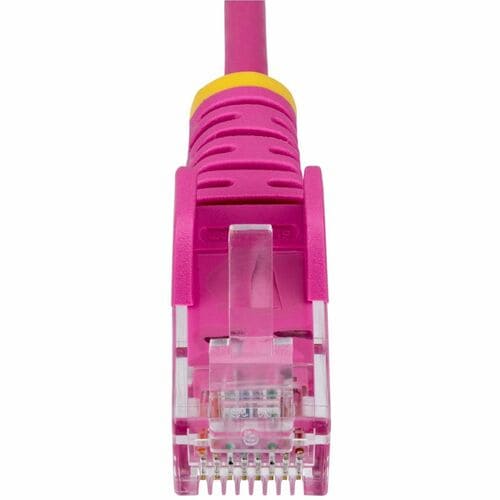

The Slim Cat6 Cable features 50-micron gold RJ45 contacts that ensure a precise fit to minimize wear and signal loss. The 4-pair Unshielded Twisted Pair (UTP) construction utilizes 28AWG Pure Bare Copper Wire for improved conductivity and low resistance. The flexible Low Smoke Zero Halogen (LSZH) flame-retardant jacket emits low smoke and toxic fumes when exposed to extreme heat or in the event of a fire. This enables safer installations in poorly-ventilated areas including some industrial settings, self-contained environments such as trains and aircraft, as well as residential settings where compliance with building codes must be considered.

Tested for Reliability

The Slim CAT6 patch cable is tested to comply with ANSI/TIA 568 C.2 requirements for guaranteed Cat6 performance. The cable is Fluke Tested to ensure minimal Near-End Crosstalk (NEXT) and Retun Loss (RL). Reliably deliver up to 90W of PoE++ to power a remote networking devices, including PoE switches and boardroom cameras. This Slim Cat6 Patch Cable complies with IEEE 802.3bt Type 4 PoE++ specifications.


  • SLIM CAT6 CABLE: Streamline cabling in crowded setups using Slim Cat6 Cables; 36% slimmer diameter enables greater flexibility than standard Cat6 cabling; Supports Power over Ethernet (PoE++) up to 90W; Low Near-End Crosstalk (NEXT) and Return Loss (RL)
  • QUALITY CONSTRUCTION: Snagless 50-micron gold-plated contacts enable a precise fit to minimize signal loss; 28AWG Pure Bare Copper wire delivers consistent power and throughput; Low-Smoke Zero Halogen (LSZH) jacket is flexible for routing in tight spaces
  • SAFETY AND RELIABILITY: Compliant with ANSI/TIA-568-C.2 standards for guaranteed Cat6 performance; LSZH jacket is safe for enclosed/poorly ventilated spaces and emits low toxic fumes if combusted; PoE++ specifications complies with IEEE 802.3bt Type 4
  • APPLICATIONS: Ideal for high-density network closets and cable management panels; Slim Cat6 cables enhance accessibility when troubleshooting and promote improved airflow between devices; Connect reliably to PoE devices such as IP or boardroom cameras
  • SPECS: 7-foot; Pink; Snagless RJ45; 1 Gbps; 250MHz; 90W PoE++; UTP; Gold-Plated Contacts; LSZH Jacket; 28AWG Pure Bare Copper Wire; 3.6mm (0.14in) Cable O.D.; Fluke Tested; Supports Cat 6 and Cat 5/5e

Especificaciones técnicas

Miscellaneous
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
Waste Electrical and Electronic Equipment Directive (WEEE)
Physical Characteristics
Material Details
  • Bare Copper - Wire
  • Copper - Conductor
Product ColorPink
Color FamilyPink
General Information
Product TypeNetwork Cable
Manufacturer Part NumberN6PAT7PKS
Manufacturer Website Addresshttp://www.startech.com
Packaged Quantity1
ManufacturerStarTech.com
Product NameSlim Cat6 Ethernet Cable - LSZH
Brand NameStarTech.com
Technical Information
Cable Length7 ft (2.13 m)
Data Transfer Rate1 Gbit/s
Device SupportedPoE Switch
Patch Panel
Network Device
IP Camera
Camera
Rack
Jacket TypeLSZH
ShieldingNo
FeaturesStrain Relief
Unshielded Twisted Pair (UTP)
Wear Resistant
Flexible
Flame Retardant
Break Resistant
Stranded
Snag Resistant
PoE++
PoE
Near End Cross Talk (NEXT)
Number of Conductors8
Cable CharacteristicPatch Cable
Cable TypeCategory 6
Connector Type on First EndRJ-45 Network - Male
Connector Type on Second EndRJ-45 Network - Male
Connector PlatingGold
American Wire Gauge28 AWG
Contact PlatingGold
Connector on First End Details1 x RJ-45 Network - Male
Connector on Second End Details1 x RJ-45 Network - Male
Number of Pairs4
Connector Gender on First EndMale
Connector Gender on Second EndMale
