Features | Customize a Network Connection Extension over Fiber Optic Cable

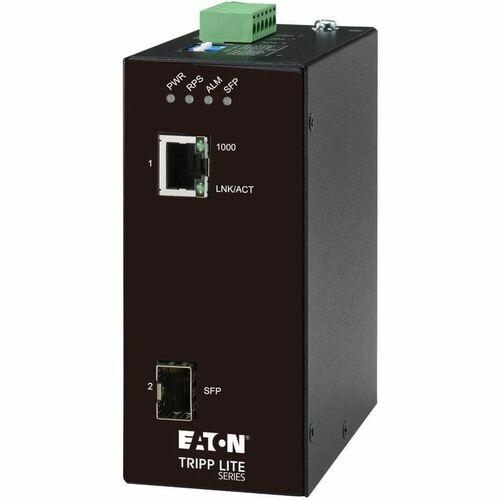

This network media converter works with a variety of SFP transceivers to convert a copper Gigabit Ethernet signal to fiber optic and extend it to a second network device. The customizable SFP port supports both singlemode and multimode transceivers, allowing your network connection to reach hubs, switches and other devices located farther away than copper cabling's 100-meter limit. Auto-negotiation and automatic MDI/MDI-X configuration seamlessly connect devices without crossover cabling.
Monitor Your Installation with Line Loop Back

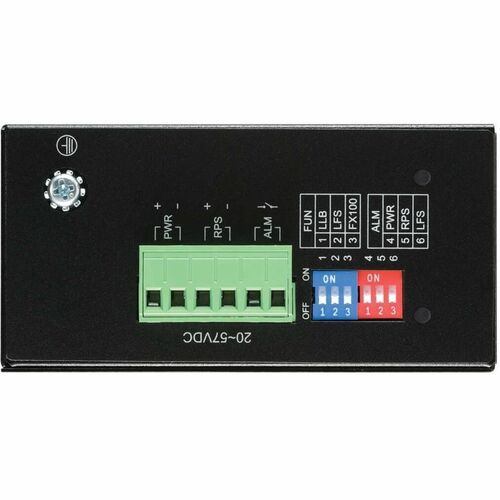

Determine the health of your network connection via the Line Loop Back (LLB) function, which ensures copper and fiber cables have been correctly installed. Use the DIP switches to control each function or turn them on or off.

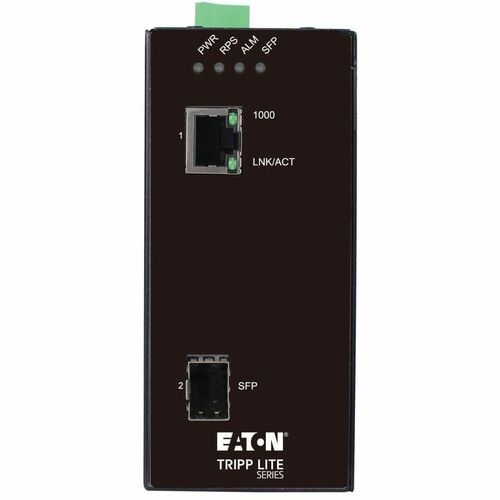

LEDs Indicate Installation Performance and Diagnostic Functions
Easy-to-read LEDs on the side of the unit indicate essential status information, including network speed and connection, LFS diagnostics and unit power. The included 20-57VDC terminal block provides primary and secondary power inputs.

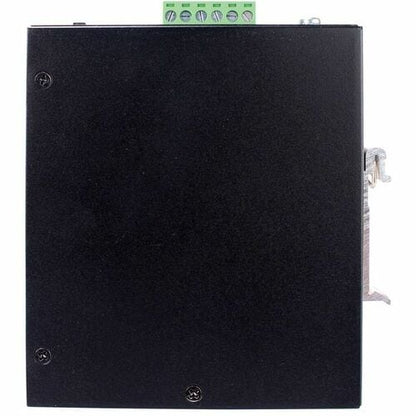

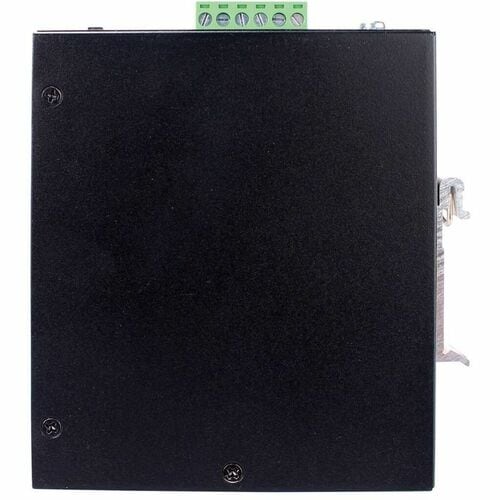

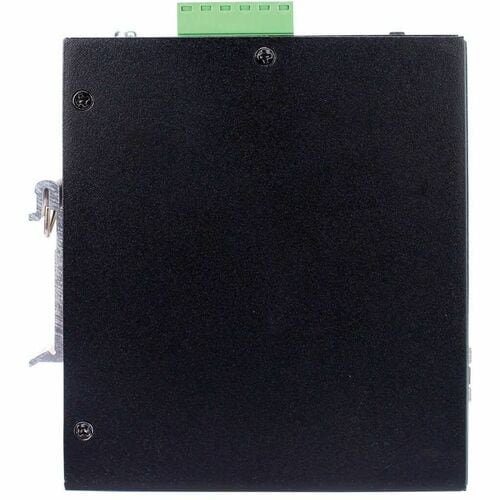

Protective Metal Housing Built to Withstand a Variety of Hazards

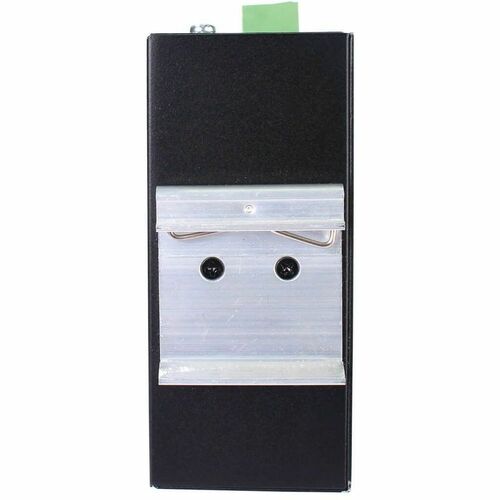

The hardened aluminum case is designed to operate in extreme temperatures ranging from -10 to 60 degrees Celsius (14 to 140 degrees Fahrenheit). It is protected from electrostatic discharge (ESD), radio frequency interference (RFI) and power surges. Hardware is included for DIN mounting.
TAA-Compliant for GSA Schedule Purchases
The N785-H01-SFP-D is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
- Connect different types of media within a network with this single port
- With 10/100/1000Base-T technology get up to 1000Mbps data transfer rate over supported network cable
- The DIN Rail Mountable provides convenient installation
- With Twisted Pair cable, get the desired data transfer rate up to a required distance
Especificaciones técnicas
| I/O Expansions | |
| Expansion Slot Type | SFP (mini-GBIC) |
| Number of SFP Slots | 1 |
| Total Number of Expansion Slots | 1 |
| Interfaces/Ports | |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Total Number of Ports | 1 |
| Network & Communication | |
| Network Technology | 100/1000Base-X |
| 10/100/1000Base-T | |
| Ethernet Technology | Gigabit Ethernet |
| Power Description | |
| Power Source | DC |
| Power Consumption | 5.50 W |
| Plug/Connector Type | Terminal Block |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Twisted Pair | |
| Fiber Mode Supported | Multi-mode |
| Single-mode | |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| TAA Compliant | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Physical Characteristics | |
| Weight (Approximate) | 14.88 oz (421.84 g) |
| Form Factor | DIN Rail Mountable |
| Height | 1.97" (50.04 mm) |
| Width | 4.57" (116.08 mm) |
| Depth | 3.94" (100.08 mm) |
| General Information | |
| Product Type | Transceiver/Media Converter |
| Manufacturer Part Number | N785-H01-SFP-D |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Manufacturer | Eaton Corporation |
| Product Model | N785-H01-SFP-D |
| Product Name | N785-H01-SFP-D Transceiver/Media Converter |
| Brand Name | Tripp Lite by Eaton |
