Acerca del producto

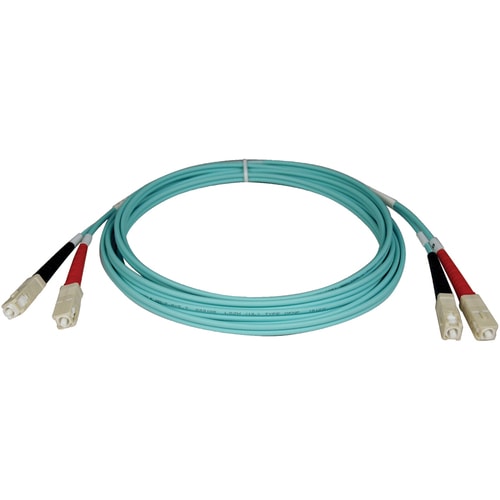

Tripp Lite introduces it's new OM3 Laser-Optimized Multimode Fiber (LOMMF) "Aqua" cables, for use with 10Gb Ethernet applications. These new technology, 50/125um, SC/SC Fiber Optic cables, provide nearly three times the bandwidth over conventional 62.5um multimode fiber, with performance rivaling that of Single mode cable, at a much reduced cost. LOMMF cable allows 10Gb serial transmission over extended distances in the 850nm wavelength window, where low-cost Vertical Cavity Surface Emitting Lasers (VCSELs) enable a cost-effective, high-bandwidth solution. LOMMF is ideally suited for LAN's, SAN's, and high-speed parallel interconnects for head-ends, central offices, and data centers
- Designed for 10-Gig Ethernet applications...OM3 Rated
- Backward compatible with existing 50/125 fiber
- Max 10Gb distance of 300 meters @850nm
- Low-Smoke, Zero Halogen (LSZH) Aqua jacket
Especificaciones técnicas
| Physical Characteristics | |
| Jacket Material | Low Smoke Zero Halogen |
| Product Color | Aqua |
| Color Family | Green |
| Miscellaneous | |
| Additional Information |
|
| Compatibility | TYPICAL APPLICATIONS: For use with 10-Gigabit Ethernet equipment |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| General Information | |
| Product Type | Network Cable |
| Manufacturer Part Number | N806-15M |
| Manufacturer Website Address | https://tripplite.eaton.com/ |
| Manufacturer | Eaton Corporation |
| Product Name | Fiber Optic Duplex Patch Network Cable |
| Brand Name | Tripp Lite by Eaton |
| Technical Information | |
| Cable Length | 49.2 ft (15 m) |
| Device Supported | Network Device |
| Jacket Type | LSZH |
| Cable Characteristic | Patch Cable |
| Cable Type | Fiber Optic |
| Connector Type on First End | SC Network - Male |
| Connector Type on Second End | SC Network - Male |
| Fiber Optic Mode | Multi-mode |
| Connector on First End Details | 2 x SC Network - Male |
| Connector on Second End Details | 2 x SC Network - Male |
| Fiber Optic Cable Core/Cladding Specification | 50/125 µm |
