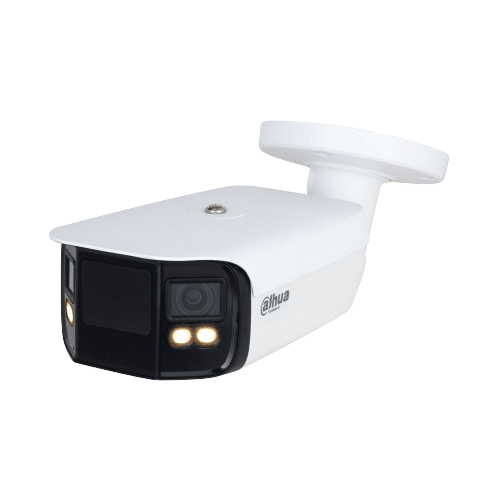

The Dahua 8MP Dual-Lens Stitching Night Colour camera performs sophisticated real-time perimeter defence, Smart Motion Detection+, and People Counting at the edge, providing Analytics+ capabilities. Compared to normal intelligent features, the accuracy and reliability of Dahua Analytics+ algorithms are greatly improved. The camera is perfect for a wide range of applications because of its enhanced night colour technology, ultra wide dynamic range, and IP67 protection, which enable it to function in even the most challenging lighting conditions.
Dahua 2 x 4MP TiOC Enhanced Night Color, IP Bullet, 180º Stitched Image, White-light LEDs, Flashing Red and Blue Lights Features:
- Dual 1/1.8-in. 4MP Progressive Scan CMOS Sensors
- Maximum Resolution 8MP (4096 × 1800) at 25 fps
- AI Coding, Smart H.265+ and Smart H.264+ Dual Codec
- Enhanced Night Color Technology
- Built-in Warm Light, Maximum Illumination Distance 40 m (131 ft)
- Built-in Microphone and Speaker, Supports Two-way Talk
- Analytics+ Features: Perimeter Protection, Heat Map, People Counting and Smart Motion Detection+
- EPTZ: Enlarge and Track the Targets of Intelligent Alarms
- IP67 Ingress Protection
- ArcticPro Series Camera – Operational down to –40 °C (–40 °F)
- Five-year Warranty (when bought through an authorized Dahua Dealer)
Dahua 2 x 4MP TiOC Enhanced Night Color, IP Bullet, 180º Stitched Image, White-light LEDs, Flashing Red and Blue Lights Specifications:
- Camera
- Image Sensor Dual 1/1.8-in. 4MP CMOS
- Effective Pixels 4096 (H) × 1800 (V)
- RAM/ROM 1 GB/128 MB
- Electronic Shutter Speed 1/3 s to 1/100,000 s
- Minimum Illumination Color (30 IRE): 0.005 Lux at F1.0 B/W (30 IRE): 0.0005 Lux at F1.0 IR (Illuminator On): 0 lux
- Illumination Distance 40 m (131.23 ft)
- Illuminators Four (4) Warm-light LEDs
- Illuminator On/Off Control Auto
- Pan/Tilt/Rotation Range
- Pan: 0° to 360°
- Tilt: 4° to 90°
- Rotation: 0° to 360°
- S/N Ratio > 56 dB
- Lens
- Lens Type Fixed-focal
- Lens Mount M16
- Focal Length 3.6 mm
- Maximum Aperture F1.0
- Angle of View
- Horizontal 180°
- Vertical 48°
- Iris Type Fixed
- Close Focus Distance 3.6 m (11.81 ft)
- DORI1 Distance
- Detect 70.3 m (230.64 ft)
- Observe 28.1 m (92.19 ft)
- Recognize 14.1 m (46.26 ft)
- Identify 7.0 m (22.97 ft)
- Video
- Compression AI Coding, Smart H.265+, H.265, Smart H.264+, H.264, H.264H, H.264B, MJPEG (Sub Stream Only)
- Streaming Capability Three (3) Streams
- Resolution 8MP (4096 × 1800), 6.5MP (3840 × 1680), 4MP (3840 × 1080), 4MP (2880 × 1264), 1.6MP (1920 × 832), 0.7MP (1280 × 560), 0.5MP (1024 × 452)
- Frame Rate2
- Main Stream WDR On: 4096 × 1800 at 20 fps WDR Off: 4096 × 1800 at 25 fps
- Sub Stream 1 WDR On: 1024 × 452 at 20 fps WDR Off: 1024 × 452 at 25 fps
- Sub Stream 2 WDR On: 1920 × 832 at 20 fps WDR Off: 1920 × 832 at 25 fps
- Bit Rate Control CBR, VBR
- Video Bit Rate H.264: 9 kbps to 8192 kbps H.265: 9 kbps to 8192 kbps
- Day/Night Color, B/W
- Backlight Compensation BLC, HLC, Ultra WDR (140 dB)
- White Balance Auto, Natural, Street Lamp, Outdoor, Manual, Regional Custom
- Noise Reduction 3DNR
- Motion Detection Off/On (4 Areas, Rectangular)
- Region of Interest (RoI) 4 Areas
- Privacy Masking 4 Areas
- Advanced Features Defog, Scene Self-adaption (SSA)
- Audio
- Input/Output Input: One (1) Channel (RCA Port) Output: One (1) channel (RCA port)
- Built-in Microphone Yes
- Compression G.711a, G.711Mu, PCM, G.726, G.723, AAC
- Ethernet RJ-45 (10/100 Base-T)
- Protocol IPv4, IPv6, HTTP,TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, DHCP, DNS, DDNS, QoS; UPnP, NTP, Multicast, ICMP, IGMP, NFS, SAMBA, PPPoE, SNMP, Bonjour
- Interoperability ONVIF (Profile S/Profile G/Profile T), CGI, SDK, API
- Maximum User Access 20 Users (Total Bandwidth: 80 Mbps)
- Edge Storage MicroSD Card (Max. 512 GB)
- Web Viewer Microsoft Edge, Chrome
- Management Software SmartPSS Lite, DSS, DMSS
- Mobile Operating System Android, iOS
- Cybersecurity Video Encryption, Firmware Encryption, Configuration Encryption, Digest, WSSE, Account lockout, Security logs, IP/MAC filtering, Generating and Importing X.509 Certification, Syslog, HTTPS, 802.1x, Trusted Boot, Trusted Execution, Trusted Upgrade
- Alarm
- Input/Output Input: One (1) Channel (5 mA 3 V to 5 VDC) Output: One (1) Channel (300 mA 12 VDC)
- Event No SD Card, SD Card Full, SD Card Error, Network Disconnection, IP Conflict, Illegal Access, Motion Detection, Video Tampering, Tripwire, Intrusion, Fast Moving, Abandoned Object, Missing Object, Loitering Detection, People Gathering, Parking Detection, Scene Changing, Audio Detection, Voltage Detection, External Alarm, SMD, People Counting in Area, Stay Detection, People Counting, Security Exception
- Electric
- Power Supply 12 VDC (±30%), PoE+ (802.3at), ePoE)
- Power Consumption Basic: 4.8 W (12 VDC), 5.5 W (PoE) Maximum (WDR + Intelligence + Warm Light + SPK): 10.5W (12 VDC), 11.8 W (PoE)
- Environmental
- Operating Temperature –40 °C to +60 °C (–40 °F to +140 °F)
- Operating Humidity ? 95%
- Storage Temperature –40 °C to +60 °C (–40 °F to +140 °F)
- Protection IP67
- Structure
- Casing Metal, Plastic
- Product Dimensions (L x W x H) 301.2 mm × 128.2 mm × 120.1 mm (11.86 in. × 5.05 in. × 4.73 in.)
- Net Weight 1.42 kg (3.13 lb)
- Gross Weight 1.57 kg (3.46 lb)
- Analytics+ Functions
- Perimeter Protection
- Detects human or vehicle violations using the following methods: Tripwire: a target crosses a defined line. Intrusion: a target enters or exits a defined perimeter.
- Monitors a combination of ten (10) detection methods
- Search and retrieve video based on target type.
- Smart Object Detection
- Detects when an object (luggage, bag, box, nonmotor vehicle) remains or is removed from a designated area
- Triggers an alarm after a set amount of time (6 to 300 seconds)
- People Counting
- Delivers accurate flow statistics from the following methods: Line Crossing: Counts a person as they cross a threshold in a defined direction. Region: counts the number of people in a defined area.
- Perimeter Protection
- Analytics+ Functions (Cont.)
- People Counting (Cont.): Counts people simultaneously from four (4) threshold lines and four (4) defined regions
- Smart Motion Detection+
- Differentiates between and classifies human and vehicle objects.
- Filters false alarms due to leaves, lights, animals, and other inconsequential objects.
- Extracts human or vehicle objects from recorded video for quick target search and retrieval.
- Recommended Detection Distance:
- Human Up to 10.0 m (32.81 ft)
- Vehicle Up to 15.0 m (49.21 ft)
- Intelligent Video System
- Standard Features
- Tampering with the camera.
- Error writing to an onboard Micro SD card.
- Error sending or receiving data over the network.
- Unauthorized access to the camera.
- Fast Moving Target exceeds a set speed when exiting a defined area
- Loitering Detection Target is in motion inside a defined area longer than a specified amount of time
- Crowd Gathering Specified number of people remain inside a defined area for a set time
- Parking Detection Vehicle remains in a defined area without motion for a set period of time
- Heat Map Generates a visual representation of data. Supports twodimensional analysis, displays a visual representation of data for number of people or average wait time in a defined area over a given time.
- Standard Features
