Acerca del producto
The Dahua Three-in-One Camera (TiOC) is a multifunctional tool that combines many functions to provide high-quality video pictures and aid in low-light detection and deterrent. In addition, the camera has precise analytics with Perimeter Protection and Smart Motion Detection. The camera's enhanced starlight technology, true wide dynamic range, and smart dual illuminators enable it to function in any lighting situation, and its IP67 classification protects it from the elements in even the most hostile settings.
Devices in the WizSense Series combine Dahua's robust Analytics+ with a user-friendly UI. Smart Motion Detection and Perimeter Protection features available on WizSense devices concentrate on photos of people and cars while ignoring extraneous images to record crucial footage and lower false alarms. For small to medium-sized enterprises, the WizSense Series devices offer effective general surveillance at an affordable price.

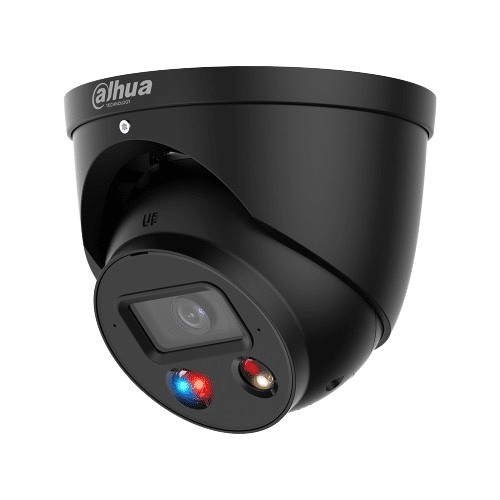

Dahua 8MP TiOC Eyeball 2.8mm, White-light LEDs, Enhanced Starlight, Flashing Lights, Basic Night Color, Lite Series, Black Features:
- 1/2.8-in. 8MP Progressive-scan CMOS Sensor
- Triple-stream Encoding
- AI Coding, Smart H.265+, and Smart H.264+ Video Compression
- 8MP (3840 x 2160) at 30 fps, 2.8mm Fixed Lens
- Analytics+ Functions — Perimeter Protection, Smart Motion Detection+
- Two (2) Built-in Microphones and a Built-in Speaker
- Voice Catcher Technology Captures Clear Audio at a Distance
- Dual Smart Illumination — IR and White Light
- Active Alarm with Red/Blue Lights and Siren or Voice Prompt
- Enhanced Starlight Technology for Low-light Applications
- ArcticPro Series Camera — Operational down to –40° C (–40° F)
- IP67 Ingress Protection
- Five-year Warranty (for products sold through an authorized Dahua dealer)
Dahua 8MP TiOC Eyeball 2.8mm, White-light LEDs, Enhanced Starlight, Flashing Lights, Basic Night Color, Lite Series, Black Specifications:
- Camera
- Image Sensor 1/2.8-in. 8MP CMOS
- Effective Pixels 3840 (H) x 2160 (V)
- RAM/ROM 128 MB / 512 MB
- Scanning System Progressive
- Electronic Shutter Speed Auto, Manual, 1/3 s to 1/100,000 s
- Minimum Illumination Color: 0.004 lux at F1.0 (30 IRE) B/W: 0.0004 lux at F1.0 (30 IRE) 0 lux at F1.0 (with illuminators on)
- S/N Ratio < 56 dB
- Illumination Distance IR: 30.0 m (98.43 ft)White Light: 30.0 m (98.43 ft)
- IR On/Off Control Auto, Manual
- Illuminators IR: One (1) LEDWhite Light: One (1) LED
- Lens
- Lens Type Fixed-focal
- Mount Type M12
- Focal Length 2.8 mm
- Maximum Aperture F1.0
- Angle of View
- Horizontal: 106°
- Vertical: 55°
- Diagonal: 125°
- Iris Type Fixed
- Close Focus Distance 2.00 m (6.56 ft)
- DORI¹ Distance
- Detect (8 ppf) 91.0 m (298.56 ft)
- Observe (19 ppf) 36.40 m (119.42 ft)
- Recognize (38 ppf) 18.20 m (59.71 ft)
- Identify (76 ppf) 9.10 m (29.86 ft)
- Installation Angle
- Range
- Pan: 0° to 360°
- Tilt: 0° to 78°
- Rotation: 0° to 360°
- Range
- Video
- Compression AI Coding, Smart H.265+, H.265, Smart H.264+, H.264, H.264B, H.264H, MJPEG (sub stream only)
- Streaming Capability Three (3) Streams
- Resolution 8MP (3840 x 2160), 6MP (3072 x 2048), 5MP (3072 x 1728), 2592 x 1944, 4MP (2688 x 1520), 3MP(2048 x 1536), 2304 x 1296, 1080p (1920 x 1080), 1.3MP (1280 x 960), 720p (1280 x 720), D1 (704 x 480), CIF (352 x 240)
- Frame Rate:
- Main Stream 8MP (3840 x 2160) at 30 fps
- Sub Stream 1 D1 (704 x 480) at 30 fps
- Sub Stream 2 1920 x 1080 at 30 fps
- Bit Rate Control CBR/VBR
- Bit Rate H.264: 3 kbps to 20480 kbps H.265: 3 kbps to 20480 kbps
- Day/Night Auto (ICR), Color, B/W
- BLC Mode BLC, HLC, True WDR (120 dB), SSA
- White Balance Auto, Natural, Street Lamp, Outdoor, Manual, Regional Custom
- Gain Control Auto, Manual, Gain Priority, Shutter Priority
- Noise Reduction 3D DNR
- Motion Detection Off, On (4 Zones, Rectangular)
- Advanced Features Smart IR, Defog
- Image Rotation 0°, 90°, 180°, 270°
- Mirror Off, On
- Privacy Masking Off, On (8 Areas)
- Audio
- Compression PCM, G.711A, G.711Mu, G.726, G.723
- Network
- Ethernet RJ-45 (10/100 Base-T)
- Protocol HTTP, HTTPS, TCP, ARP, RTSP, RTP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, IPv4/v6, QoS, UPnP, NTP, ICMP, IGMP, 802.1x
- Interoperability ONVIF Profile (S, G, T), CGI, P2P
- Streaming Method Unicast / Multicast
- Maximum User Access 20 Users (Total Bandwidth: 72 Mbps)
- Edge Storage Network Attached Storage (NAS) SFTP, FTP Micro SD Slot, maximum 256 GB
- Web Viewer Edge (Version 8, 9, and 11), Chrome, Firefox
- Management Software DSS, DMSS
- Mobile Operating System iOS, Android
- Cybersecurity Video Encryption, Firmware Encryption, Configuration Encryption, Digest, WSSE, Account Lockout, Security Logs, IP/MAC Filtering, Generating and Importing X.509 Certification, Syslog, HTTPS, 802.1x, Trusted Boot, Trusted Execution, Trusted Upgrade
- Certifications
- Safety UL62368-1, CAN/CSA C22.2 No. 62368-1-14, EN62368-1
- Electromagnetic Compatibility (EMC) CFR 47 FCC Part 15 Subpart B, Electromagnetic Compatibility Directive 2014/30/EU
- Interface
- Audio
- Input One (1) Channel (RCA), plus two (2) built-in microphones
- Output One (1) Channel (RCA) plus one (1) built-in speaker
- Alarm
- Input One (1) Channel (5 mA, 3 VDC to 5 VDC)
- Output One (1) Channel (300 mA, 12 VDC)
- Audio
- Electrical
- Power Supply 12 VDC or PoE (IEEE 802.3af, Class 0)
- Power Consumption:
- Basic 12 VDC: 2.9 W PoE: 5.0 W
- Maximum 12 VDC: 7.8 W PoE: 9.6 W
- Environmental
- Operating Conditions –40° C to +60° C (–40° F to +140° F), < 95% RH
- Storage Conditions –40° C to +60° C (–40° F to +140° F), < 95% RH
- Ingress Protection IP67
- Construction
- Casing Metal
- Dimensions 110.90 mm x 122.0 mm (4.37 in. x 4.80 in.)
- Net Weight 0.745 kg (1.64 lb)
- Gross Weight 0.915 kg (2.02 lb)
- Analytics+ Functions
- Smart Motion Detection+
- Differentiates between and classifies human and vehicle objects.
- Filters false alarms due to leaves, lights, animals, and other inconsequential objects.
- Extracts human or vehicle objects from recorded video for quick target search and retrieval.
- Smart Motion Detection+
- Recommended Detection Distance
- Human Up to 10.0 m (32.81 ft)
- Vehicle Up to 15.0 m (49.21 ft)
- Perimeter Protection with Active Alarm
- Detects human or vehicle violations using the following methods: Tripwire: a target crosses a defined line. Intrusion: a target enters or exits a defined perimeter.
- Monitors a combination of detection methods.
- Search and retrieve video based on target type.
- Configurable automatic response when an alarm is triggered: Red/Blue Light illuminator activation. Siren activation. Includes 11 built-in siren sounds plus ability to record custom recordings.
- Intelligent Video System (IVS) Functions
- Standard Features:
- Tampering with the camera.
- Error writing to an onboard Micro SD card.
- Error sending or receiving data over the network.
- Unauthorized access to the camera.
- IP Address Conflict
- Motion Detection An object is moving in a designated area
- Scene Change A person or object moves the camera to change the scene or covers the camera to obscure the scene.
- Standard Features:
Especificaciones técnicas
The Dahua Three-in-One Camera (TiOC) is a multifunctional tool that combines many functions to provide high-quality video pictures and aid in low-light detection and deterrent. In addition, the camera has precise analytics with Perimeter Protection and Smart Motion Detection. The camera's enhanced starlight technology, true wide dynamic range, and smart dual illuminators enable it to function in any lighting situation, and its IP67 classification protects it from the elements in even the most hostile settings.
Devices in the WizSense Series combine Dahua's robust Analytics+ with a user-friendly UI. Smart Motion Detection and Perimeter Protection features available on WizSense devices concentrate on photos of people and cars while ignoring extraneous images to record crucial footage and lower false alarms. For small to medium-sized enterprises, the WizSense Series devices offer effective general surveillance at an affordable price.
Dahua 8MP TiOC Eyeball 2.8mm, White-light LEDs, Enhanced Starlight, Flashing Lights, Basic Night Color, Lite Series, Black Features:
- 1/2.8-in. 8MP Progressive-scan CMOS Sensor
- Triple-stream Encoding
- AI Coding, Smart H.265+, and Smart H.264+ Video Compression
- 8MP (3840 x 2160) at 30 fps, 2.8mm Fixed Lens
- Analytics+ Functions — Perimeter Protection, Smart Motion Detection+
- Two (2) Built-in Microphones and a Built-in Speaker
- Voice Catcher Technology Captures Clear Audio at a Distance
- Dual Smart Illumination — IR and White Light
- Active Alarm with Red/Blue Lights and Siren or Voice Prompt
- Enhanced Starlight Technology for Low-light Applications
- ArcticPro Series Camera — Operational down to –40° C (–40° F)
- IP67 Ingress Protection
- Five-year Warranty (for products sold through an authorized Dahua dealer)
Dahua 8MP TiOC Eyeball 2.8mm, White-light LEDs, Enhanced Starlight, Flashing Lights, Basic Night Color, Lite Series, Black Specifications:
- Camera
- Image Sensor 1/2.8-in. 8MP CMOS
- Effective Pixels 3840 (H) x 2160 (V)
- RAM/ROM 128 MB / 512 MB
- Scanning System Progressive
- Electronic Shutter Speed Auto, Manual, 1/3 s to 1/100,000 s
- Minimum Illumination Color: 0.004 lux at F1.0 (30 IRE) B/W: 0.0004 lux at F1.0 (30 IRE) 0 lux at F1.0 (with illuminators on)
- S/N Ratio < 56 dB
- Illumination Distance IR: 30.0 m (98.43 ft)White Light: 30.0 m (98.43 ft)
- IR On/Off Control Auto, Manual
- Illuminators IR: One (1) LEDWhite Light: One (1) LED
- Lens
- Lens Type Fixed-focal
- Mount Type M12
- Focal Length 2.8 mm
- Maximum Aperture F1.0
- Angle of View
- Horizontal: 106°
- Vertical: 55°
- Diagonal: 125°
- Iris Type Fixed
- Close Focus Distance 2.00 m (6.56 ft)
- DORI¹ Distance
- Detect (8 ppf) 91.0 m (298.56 ft)
- Observe (19 ppf) 36.40 m (119.42 ft)
- Recognize (38 ppf) 18.20 m (59.71 ft)
- Identify (76 ppf) 9.10 m (29.86 ft)
- Installation Angle
- Range
- Pan: 0° to 360°
- Tilt: 0° to 78°
- Rotation: 0° to 360°
- Range
- Video
- Compression AI Coding, Smart H.265+, H.265, Smart H.264+, H.264, H.264B, H.264H, MJPEG (sub stream only)
- Streaming Capability Three (3) Streams
- Resolution 8MP (3840 x 2160), 6MP (3072 x 2048), 5MP (3072 x 1728), 2592 x 1944, 4MP (2688 x 1520), 3MP(2048 x 1536), 2304 x 1296, 1080p (1920 x 1080), 1.3MP (1280 x 960), 720p (1280 x 720), D1 (704 x 480), CIF (352 x 240)
- Frame Rate:
- Main Stream 8MP (3840 x 2160) at 30 fps
- Sub Stream 1 D1 (704 x 480) at 30 fps
- Sub Stream 2 1920 x 1080 at 30 fps
- Bit Rate Control CBR/VBR
- Bit Rate H.264: 3 kbps to 20480 kbps H.265: 3 kbps to 20480 kbps
- Day/Night Auto (ICR), Color, B/W
- BLC Mode BLC, HLC, True WDR (120 dB), SSA
- White Balance Auto, Natural, Street Lamp, Outdoor, Manual, Regional Custom
- Gain Control Auto, Manual, Gain Priority, Shutter Priority
- Noise Reduction 3D DNR
- Motion Detection Off, On (4 Zones, Rectangular)
- Advanced Features Smart IR, Defog
- Image Rotation 0°, 90°, 180°, 270°
- Mirror Off, On
- Privacy Masking Off, On (8 Areas)
- Audio
- Compression PCM, G.711A, G.711Mu, G.726, G.723
- Network
- Ethernet RJ-45 (10/100 Base-T)
- Protocol HTTP, HTTPS, TCP, ARP, RTSP, RTP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, IPv4/v6, QoS, UPnP, NTP, ICMP, IGMP, 802.1x
- Interoperability ONVIF Profile (S, G, T), CGI, P2P
- Streaming Method Unicast / Multicast
- Maximum User Access 20 Users (Total Bandwidth: 72 Mbps)
- Edge Storage Network Attached Storage (NAS) SFTP, FTP Micro SD Slot, maximum 256 GB
- Web Viewer Edge (Version 8, 9, and 11), Chrome, Firefox
- Management Software DSS, DMSS
- Mobile Operating System iOS, Android
- Cybersecurity Video Encryption, Firmware Encryption, Configuration Encryption, Digest, WSSE, Account Lockout, Security Logs, IP/MAC Filtering, Generating and Importing X.509 Certification, Syslog, HTTPS, 802.1x, Trusted Boot, Trusted Execution, Trusted Upgrade
- Certifications
- Safety UL62368-1, CAN/CSA C22.2 No. 62368-1-14, EN62368-1
- Electromagnetic Compatibility (EMC) CFR 47 FCC Part 15 Subpart B, Electromagnetic Compatibility Directive 2014/30/EU
- Interface
- Audio
- Input One (1) Channel (RCA), plus two (2) built-in microphones
- Output One (1) Channel (RCA) plus one (1) built-in speaker
- Alarm
- Input One (1) Channel (5 mA, 3 VDC to 5 VDC)
- Output One (1) Channel (300 mA, 12 VDC)
- Audio
- Electrical
- Power Supply 12 VDC or PoE (IEEE 802.3af, Class 0)
- Power Consumption:
- Basic 12 VDC: 2.9 W PoE: 5.0 W
- Maximum 12 VDC: 7.8 W PoE: 9.6 W
- Environmental
- Operating Conditions –40° C to +60° C (–40° F to +140° F), < 95% RH
- Storage Conditions –40° C to +60° C (–40° F to +140° F), < 95% RH
- Ingress Protection IP67
- Construction
- Casing Metal
- Dimensions 110.90 mm x 122.0 mm (4.37 in. x 4.80 in.)
- Net Weight 0.745 kg (1.64 lb)
- Gross Weight 0.915 kg (2.02 lb)
- Analytics+ Functions
- Smart Motion Detection+
- Differentiates between and classifies human and vehicle objects.
- Filters false alarms due to leaves, lights, animals, and other inconsequential objects.
- Extracts human or vehicle objects from recorded video for quick target search and retrieval.
- Smart Motion Detection+
- Recommended Detection Distance
- Human Up to 10.0 m (32.81 ft)
- Vehicle Up to 15.0 m (49.21 ft)
- Perimeter Protection with Active Alarm
- Detects human or vehicle violations using the following methods: Tripwire: a target crosses a defined line. Intrusion: a target enters or exits a defined perimeter.
- Monitors a combination of detection methods.
- Search and retrieve video based on target type.
- Configurable automatic response when an alarm is triggered: Red/Blue Light illuminator activation. Siren activation. Includes 11 built-in siren sounds plus ability to record custom recordings.
- Intelligent Video System (IVS) Functions
- Standard Features:
- Tampering with the camera.
- Error writing to an onboard Micro SD card.
- Error sending or receiving data over the network.
- Unauthorized access to the camera.
- IP Address Conflict
- Motion Detection An object is moving in a designated area
- Scene Change A person or object moves the camera to change the scene or covers the camera to obscure the scene.
- Standard Features:
