40/100 GbE Cable Supports Higher Bandwidths Needed for High-Density Data Networking

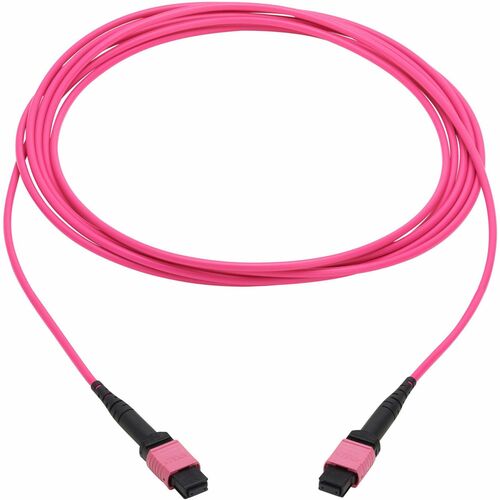

As the amount of traffic in data networks grows, so does the need for devices and fiber cables to support higher bandwidths for high-density patching between data center MDFs and IDFs in enterprise installations. This multimode 50/125 OM4 cable is an ideal choice for 100G Ethernet applications up to 100 meters (328 feet) at 1300 nm. It is also backward compatible with 10 Gb, 25 Gb and 40 Gb networks, so you can future-proof your current application for an eventual upgrade to 400 Gb.
Magenta Jacket Helps Avoid Misidentification That Can Cause Costly Downtime

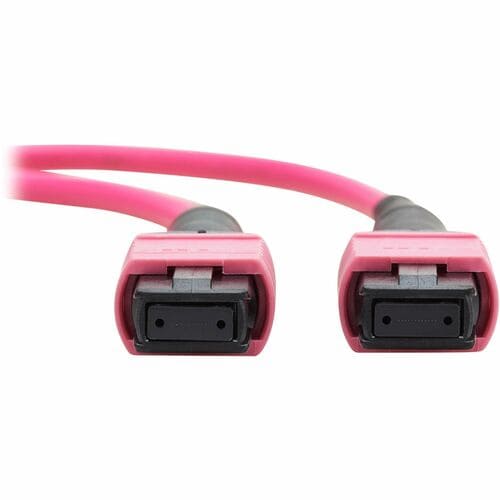

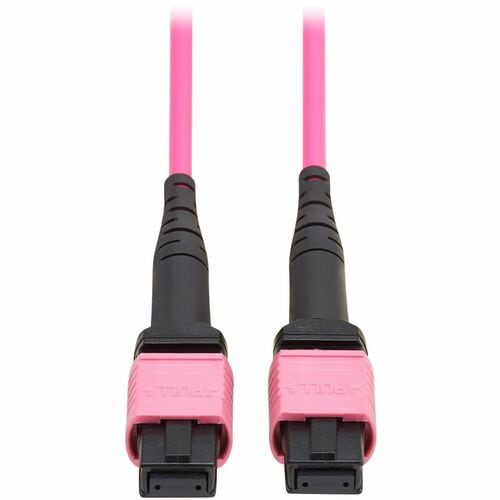

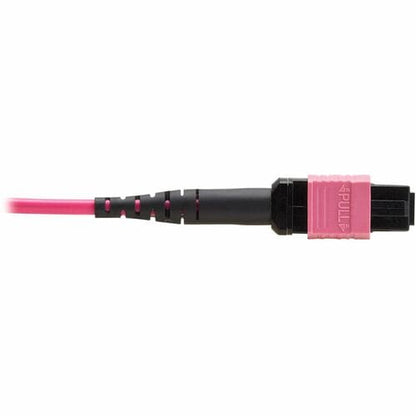

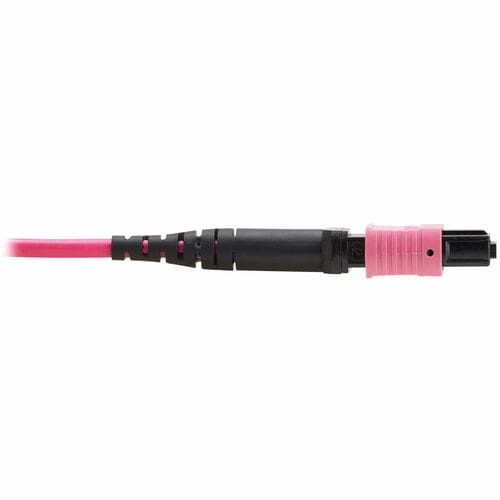

The OM4-rated cable has a magenta jacket to identify it as multimode in a crowded patch panel or switch and prevent it from becoming accidentally disconnected. The OFNP (Optical Fiber Non-Conductive Plenum) jacket is highly fire-resistant, making this cable ideal for plenum areas such as drop ceilings and raised floors. The connectors' slim boots allow easy one-handed installation and removal of the cable.
TAA-Compliant for GSA Schedule Purchases
The N845B-05M-12MTA is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
- OM4-rated cable recommended for 100 Gb speeds up to 100 meters (@ 1300 nm)
- Backward compatible with 10/25/40 Gb networks to facilitate future-proofing
- Magenta OFNP jacket allows easy ID in a crowded switch or patch panel
- Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
Especificaciones técnicas
| Miscellaneous | |
| TAA Compliant | Yes |
| Physical Characteristics | |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Jacket Color | Magenta |
| Connector Color | Magenta |
| Black | |
| General Information | |
| Product Type | Network Cable |
| Manufacturer Part Number | N845B-05M-12MTA |
| Manufacturer Website Address | https://tripplite.eaton.com/ |
| Manufacturer | Eaton Corporation |
| Product Model | N845B-05M-12MTA |
| Product Name | N845B-05M-12MTA Fiber Optic Network Cable |
| Brand Name | Tripp Lite by Eaton |
| Technical Information | |
| Cable Length | 16.4 ft (5 m) |
| Data Transfer Rate | 100 Gbit/s |
| Device Supported | Switch |
| Patch Panel | |
| Network Device | |
| Jacket Type | OFNP |
| Features | Fire Resistant |
| Polished Connector (PC) | |
| Stranded | |
| Cable Characteristic | Patch Cable |
| Cable Type | Fiber Optic |
| Connector Type on First End | MTP/MPO Network - Female |
| Connector Type on Second End | MTP/MPO Network - Female |
| Fiber Optic Mode | Multi-mode |
| Fiber Type | Duplex |
| Connector on First End Details | 1x MTP/MPO Network - Female |
| Connector on Second End Details | 1 x MTP/MPO Network - Female |
| Boot Type | Slim |
| Connector Gender on First End | Female |
| Connector Gender on Second End | Female |
| Fiber Count | 12 |
| Fiber Category | OM4 |
