Acerca del producto

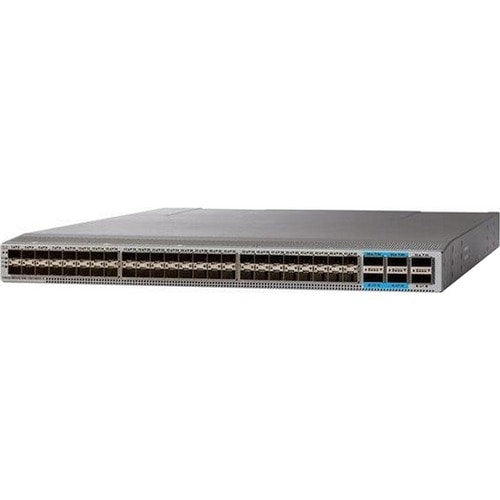

The Cisco Nexus® 9200 platform is the latest addition to the Cisco Nexus 9000 Series Switches. The Cisco Nexus 9200 platform consists of industry leading ultra-density fixed-configuration data center switches with line-rate Layer 2 and 3 features that support enterprise and commercial applications, service provider hosting, and cloud computing environments. These switches support a wide range of port speeds with flexible combinations of 1/10/25/40/50/100-Gbps connectivity in compact form factors. Using the widely deployed industry-leading Cisco® NX-OS Software operating system, the Nexus 9200 switch is designed for the programmable fabric, which offers flexibility, mobility and scale for service providers and IaaS/cloud providers; and for the programmable network which automates configuration and management for customers who want to take advantage of the DevOps type of operation model and toolsets.
- 40 Gigabit Ethernet for efficient data transfer and fast connectivity
- Can work as layer 3 routing for scalable network design
- Supports layer 3 switching for enhanced performance and usability
- Management capability provides control over setup and configuration of your network
Especificaciones técnicas
| Management & Protocols | |
| Manageable | Yes |
| Network & Communication | |
| Layer Supported | 3 |
| Power Description | |
| Power Source | Power Supply |
| Redundant Power Supply Supported | Yes |
| I/O Expansions | |
| Expansion Slot Type | QSFP+ |
| SFP+ | |
| Number of SFP+ Slots | 48 |
| Total Number of Expansion Slots | 54.0 |
| Interfaces/Ports | |
| Modular | Yes |
| Uplink Port | No |
| Stack Port | No |
| Port/Expansion Slot Details | 6 x 40 Gigabit Ethernet Expansion Slot |
| 48 x 10 Gigabit Ethernet Expansion Slot | |
| Media & Performance | |
| Network Technology | 10GBase-X |
| 40GBase-X | |
| Ethernet Technology | 40 Gigabit Ethernet |
| 10 Gigabit Ethernet | |
| Media Type Supported | Optical Fiber |
| Physical Characteristics | |
| Weight (Approximate) | 14.12 lb (6404.724264 g) |
| Form Factor | Rack-mountable |
| Height | 1.72" (43.69 mm) |
| Width | 17.30" (439.42 mm) |
| Depth | 22.50" (571.50 mm) |
| Compatible Rack Unit | 1U |
| General Information | |
| Product Type | Layer 3 Switch |
| Manufacturer Part Number | N9K-C92160YC-X-RF |
| Manufacturer Website Address | http://www.cisco.com |
| Manufacturer | Cisco Systems, Inc |
| Product Model | 92160YC-X |
| Product Name | Nexus 92160YC-X Switch |
| Product Line | Nexus |
| Product Series | 9000 |
| Brand Name | Cisco |
| Product Condition | Refurbished |
