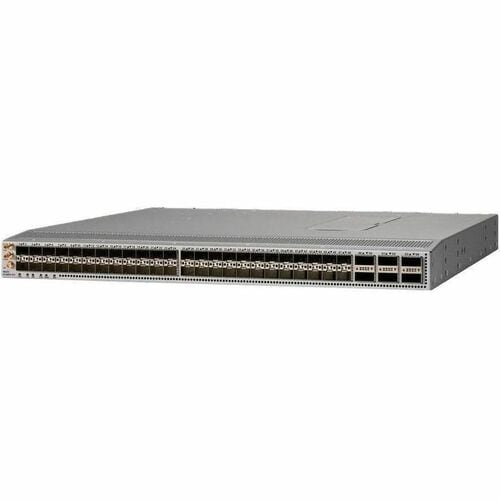

The Cisco Nexus® 93180YC-FX3H, 93108TC-FX3H, 93180YC-FX-24, 93108TC-FX-24, 93180YC-EX-24, and 93108TC-EX-24 switches belong to the fixed Cisco Nexus 9000 platform based on Cisco® Cloud Scale technology. The switches support cost-effective and compact form factors for smaller data center deployments. The platform is built on modern system architecture designed to provide high performance and meet the evolving needs of highly scalable data centers and growing enterprises.
The Cisco Nexus 9000 Series Switches offer a variety of interface options to transparently migrate existing data centers from 100-Mbps, 1-Gbps, and 10-Gbps speeds to 25 Gbps at the server, and from 10- and 40-Gbps speeds to 50 and 100 Gbps at the aggregation layer. The platforms provide investment protection for customers, delivering large buffers, highly flexible Layer 2 and Layer 3 scalability, and performance to meet the changing needs of virtualized data centers and automated cloud environments.
Cisco provides two modes of operation for Cisco Nexus 9000 Series Switches. Organizations can use Cisco NX-OS Software to deploy the switches in standard Cisco Nexus switch environments (NX-OS mode). Organizations can also deploy the infrastructure that is ready to support the Cisco Application Centric Infrastructure (Cisco ACI™) platform to take full advantage of an automated, policy-based, systems- management approach (ACI mode).
- 100 Gigabit Ethernet provides high bandwidth performance, ease of use and reliability for your network backbone
- Supports layer 3 switching for enhanced performance and usability
- Management capability provides control over setup and configuration of your network
- Cascade to other network devices through the uplink port to expand your local area network
Especificaciones técnicas
| Management & Protocols | |
| Manageable | Yes |
| Network & Communication | |
| Layer Supported | 3 |
| I/O Expansions | |
| Expansion Slot Type | SFP (mini-GBIC) |
| QSFP28 | |
| Number of SFP Slots | 24 |
| Total Number of Expansion Slots | 30.0 |
| Interfaces/Ports | |
| Modular | Yes |
| Uplink Port | Yes |
| Port/Expansion Slot Details | 24 x 25 Gigabit Ethernet Expansion Slot |
| 6 x 100 Gigabit Ethernet Expansion Slot | |
| Miscellaneous | |
| Application/Usage | Data Center |
| Network | |
| Enterprise | |
| Business | |
| Physical Characteristics | |
| Weight (Approximate) | 20.99 lb (9520 g) |
| Form Factor | Rack-mountable |
| Height | 1.72" (43.69 mm) |
| Width | 17.30" (439.42 mm) |
| Depth | 19.60" (497.84 mm) |
| Compatible Rack Unit | 1U |
| Media & Performance | |
| Network Technology | 40GBase-X |
| 10GBase-X | |
| 25GBase-X | |
| 100GBase-X | |
| 1000Base-X | |
| Ethernet Technology | 100 Gigabit Ethernet |
| Media Type Supported | Optical Fiber |
| General Information | |
| Product Type | Ethernet Switch |
| Manufacturer Part Number | N9KC93180YCFX3H |
| Manufacturer Website Address | http://www.cisco.com |
| Manufacturer | Cisco Systems, Inc |
| Product Model | 93180YC-FX3H |
| Product Name | Nexus 93180YC-FX3H Ethernet Switch |
| Product Line | Nexus |
| Product Series | 9300-FX3 |
| Brand Name | Cisco |
| Power Description | |
| Input Voltage | 120 V AC |
| 230 V AC | |
| Power Source | AC/DC |
| Power Supply | |
| Frequency | 60 Hz |
| 50 Hz | |
| Power Consumption | 600 W |
| Number of Power Supplies Supported | 2 |
| Redundant Power Supply Supported | Yes |
