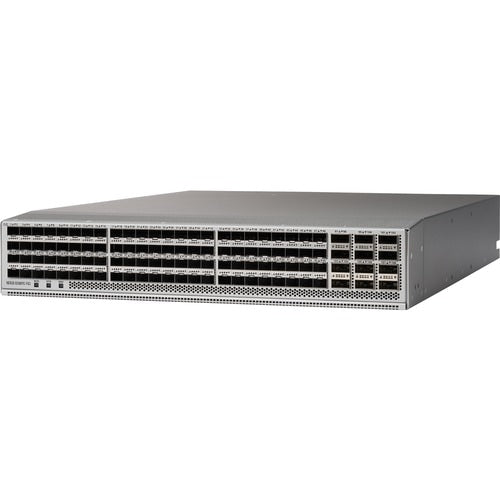

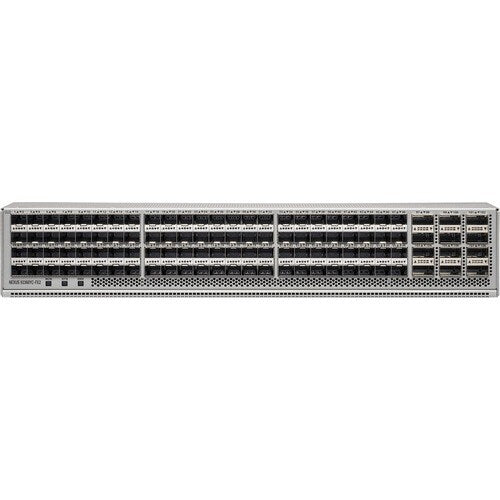

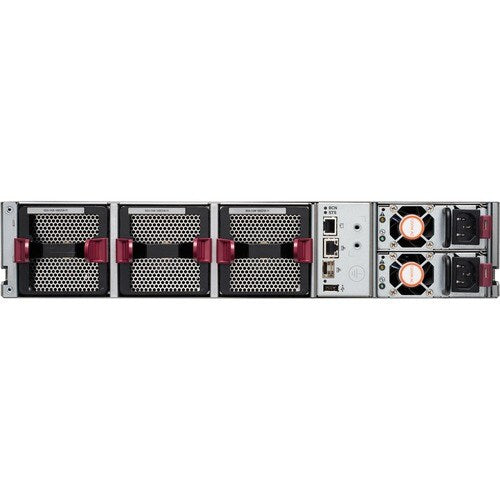

The Cisco Nexus® 9300-FX2 Series switches belongs to the fixed Cisco Nexus 9000 platform based on Cisco Cloud Scale technology. The platform support cost-effective cloud-scale deployments, an increased number of endpoints, and cloud services with wire-rate security and telemetry. The platform is built on modern system architecture designed to provide high performance and meet the evolving needs of highly scalable data centers and growing enterprises.
Cisco Nexus 9300-FX2 series is an extension of Nexus 9300-FX series switches with higher bandwidth capacity. The switches offer a variety of interface options to transparently migrate existing data centers from 1-Gbps, and 10-Gbps speeds to 25- Gbps at the server, and from 10- and 40-Gbps speeds to 50- and 100- Gbps at the aggregation layer. The platforms provide investment protection for customers, delivering large buffers, highly flexible Layer 2 and Layer 3 scalability, and performance to meet the changing needs of virtualized data centers and automated cloud environments.
Cisco provides two modes of operation for Cisco Nexus 9000 Series Switches. Organizations can use Cisco NX-OS Software to deploy the switches in standard Cisco Nexus switch environments (NX-OS mode). Organizations can also deploy the infrastructure that is ready to support the Cisco Application Centric Infrastructure (Cisco ACI™) platform to take full advantage of an automated, policy-based, systems-management approach (ACI mode).
- 100 Gigabit Ethernet provides high bandwidth performance, ease of use and reliability for your network backbone
- Rack mounting enables you to organize wires & secure cables for professional installation
- Can work as layer 3 routing for scalable network design
- Supports layer 3 switching for enhanced performance and usability
- Managed switch provides a reliable foundation for your network
- Management capability provides control over setup and configuration of your network
- Supports optical fiber cable to span longer distances and provided high data transmission rates between servers and network components
- Built-in power supply to ensure all components are being supplied with accurate voltage
- Cascade to other network devices through the uplink port to expand your local area network
Especificaciones técnicas
| Management & Protocols | |
| Manageable | Yes |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Network & Communication | |
| Layer Supported | 3 |
| Power Description | |
| Power Source | Power Supply |
| Power Consumption | 708 W |
| Redundant Power Supply Supported | Yes |
| I/O Expansions | |
| Expansion Slot Type | QSFP28 |
| SFP+ | |
| Number of SFP+ Slots | 96 |
| Total Number of Expansion Slots | 108 |
| Interfaces/Ports | |
| Modular | Yes |
| Uplink Port | Yes |
| Port/Expansion Slot Details | 96 x 25 Gigabit Ethernet Expansion Slot |
| 12 x 100 Gigabit Ethernet Expansion Slot | |
| Media & Performance | |
| Network Technology | 100GBase-X |
| 25GBase-X | |
| Ethernet Technology | 100 Gigabit Ethernet |
| 25 Gigabit Ethernet | |
| Media Type Supported | Optical Fiber |
| Physical Characteristics | |
| Weight (Approximate) | 36 lb (16329.33 g) |
| Form Factor | Rack-mountable |
| Height | 3.38" (85.85 mm) |
| Width | 17.41" (442.21 mm) |
| Depth | 22.95" (582.93 mm) |
| Compatible Rack Unit | 2U |
| General Information | |
| Product Type | Layer 3 Switch |
| Manufacturer Part Number | N9K-C93360YCFX2-RF |
| Manufacturer Website Address | http://www.cisco.com |
| Manufacturer | Cisco Systems, Inc |
| Product Model | 93360YC-FX2 |
| Product Name | 93360YC-FX2 Layer 3 Switch |
| Product Line | Nexus |
| Product Series | 9300-FX2 |
| Brand Name | Cisco |
| Product Condition | Refurbished |
