Acerca del producto
In the evolving landscape of applications, there is an increased bandwidth requirement due to emergence of AI-powered applications. Large cloud and data-center networking teams require a flexible, reliable solution that efficiently manages, troubleshoots, and analyzes their IT infrastructure. They need security, automation, visibility, analytics, and assurance. Equipped to support this next-generation cloud architecture, the Cisco Nexus® 9300-GX2 series switches are based on Cisco Cloud Scale technology. The Cisco Nexus 9300-GX2 series addresses the need for high-performance, power-efficient, compact switches in the networking infrastructure. These switches are designed to support 50G, 100G, 200G, and 400G fabrics for next-generation leaf and spine designs and IP storage fabrics. The platform is built with backward- compatible 400G optical interface Quad Small Form-Factor Pluggable-Double Density (QSFP-DD) to transparently migrate existing data center fabrics from 40-Gbps and 100-Gbps speeds to 400 Gbps; it also offers various lower port speeds and densities, including 10, 25, 50, and 200 Gbps, using breakouts. Cisco provides two modes of operation for Cisco Nexus 9000 Series Switches. Organizations can deploy Cisco Application Centric Infrastructure (Cisco ACI®) or Cisco NX-OS mode.
- Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree
- With leading Layer 2 support, experience enhanced convenience, secure business operations, and a borderless network experience
- Managed switch provides a reliable foundation for your network
- Management capability provides control over setup and configuration of your network
- Supports optical fiber cable to span longer distances and provided high data transmission rates between servers and network components
- Built-in power supply to ensure all components are being supplied with accurate voltage
- Quickly and easily set up a wired network with 64 networking ports
- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 64 ports
Especificaciones técnicas
| Management & Protocols | |
| Manageable | Yes |
| Media & Performance | |
| Ethernet Technology | 400 Gigabit Ethernet |
| Media Type Supported | Optical Fiber |
| Network & Communication | |
| Layer Supported | 2 |
| Networking Standards | IEEE 802.1ae |
| I/O Expansions | |
| Expansion Slot Type | SFP+ |
| Number of SFP+ Slots | 2 |
| Total Number of Expansion Slots | 2.0 |
| Interfaces/Ports | |
| Modular | Yes |
| Total Number of Network Ports | 64 |
| Port/Expansion Slot Details | 64 x 400-Gbps QSFP-DD Porrts |
| 2 x 1/10-Gbps SFP+ Ports | |
| Power Description | |
| Input Voltage | 230 V AC |
| 120 V AC | |
| Power Source | Power Supply |
| Frequency | 60 Hz |
| 50 Hz | |
| Power Consumption | 1324 W |
| Physical Characteristics | |
| Weight (Approximate) | 58 lb (26308.35746 g) |
| Form Factor | Rack-mountable |
| Compact | |
| Height | 3.45" (87.63 mm) |
| Width | 17.30" (439.42 mm) |
| Depth | 29.78" (756.41 mm) |
| Compatible Rack Unit | 1U |
| General Information | |
| Product Type | Ethernet Switch |
| Manufacturer Part Number | N9K-C9364D-GX2A |
| Manufacturer Website Address | http://www.cisco.com |
| Manufacturer | Cisco Systems, Inc |
| Product Model | N9K-C9364D-GX2A |

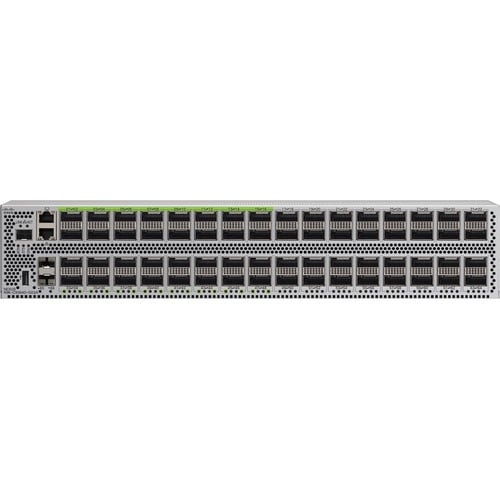

| Product Name | Nexus 9300-GX2 N9K-C9364D-GX2A Ethernet Switch |
| Product Line | Nexus |
| Product Series | 9300-GX2 |
| Brand Name | Cisco |
