ContentsNexus 9500 Series Switches Introduction
The Cisco Nexus 9500 Series is a family of modular switches that delivers industry leading high-performance, high-density and low-latency 1, 10, 40, and, in the future, 100 Gigabit Ethernet connectivity. Nexus 9500 Series Switches can operate in both the Application Centric Infrastructure (ACI) mode and the classic NX-OS mode. When they operate in the ACI mode, Nexus 9500 Series Switches form the foundation of the transformational ACI architecture for the fully integrated and automated network fabric solution driven by Application Network Profile. While running in the classic NX-OS mode, Nexus 9500 Series Switches are the first of its kind switches for highly scalable and high performance data center access and aggregation layers, with enhanced automation and programmability functionalities. This white paper focuses on the common hardware architecture of Nexus 9500 Series Switches and the packet forwarding implementation in the classic NX-OS mode.
- Rack mounting enables you to organize wires & secure cables for professional installation
- Supports layer 3 switching for enhanced performance and usability
- Managed switch provides a reliable foundation for your network
- Built-in power supply to ensure all components are being supplied with accurate voltage
Especificaciones técnicas
| Network & Communication | |
| Layer Supported | 3 |
| Management & Protocols | |
| Management |
|
| Manageable | Yes |
| Miscellaneous | |
| Certifications & Standards |
|
| Environmentally Friendly | Yes |
| Power Description | |
| Power Source | Power Supply |
| PoE (RJ-45) Port | No |
| Memory | |
| Maximum Memory Supported | 48 GB |
| Standard Memory | 16 GB |
| Memory Technology | DRAM |
| I/O Expansions | |
| Expansion Slot Type | Line Card |
| Supervisor Engine | |
| Switch Fabric | |
| Total Number of Expansion Slots | 12.0 |
| Physical Characteristics | |
| Weight (Approximate) | 86.60 lb (39281.10 g) |
| Form Factor | Rack-mountable |
| Height | 12.40" (314.96 mm) |
| Width | 17.50" (444.50 mm) |
| Depth | 30.50" (774.70 mm) |
| Compatible Rack Unit | 7U |
| General Information | |
| Product Type | Switch Chassis |
| Manufacturer Part Number | N9K-C9504 |
| Manufacturer Website Address | http://www.cisco.com |
| Manufacturer | Cisco Systems, Inc |
| Product Model | 9504 |

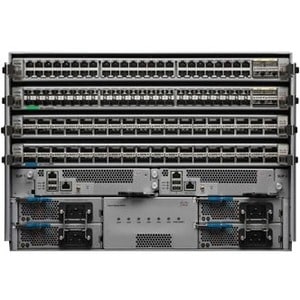

| Product Name | Nexus 9504 Chassis with 4 Linecard Slots |
| Product Line | Nexus |
| Product Series | 9000 |
| Brand Name | Cisco |
| Interfaces/Ports | |
| Token Ring Port | No |
| LRE Port | No |
| USB | Yes |
| Modular | Yes |
| Management Port | Yes |
| Uplink Port | No |
| Stack Port | No |
| Bypass | No |
| Port/Expansion Slot Details | 12 x Expansion Slot |
