Advantech

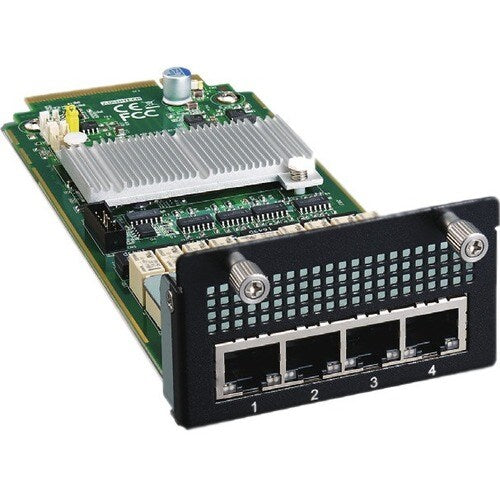

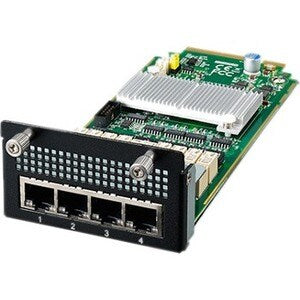

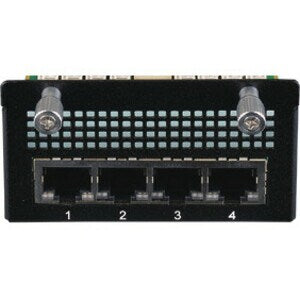

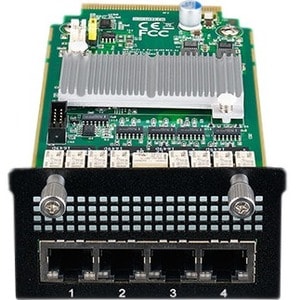

Advantech 4 puertos 1GbE RJ45 tipo tornillo de mariposa - Para redes de datos
Advantech 4 puertos 1GbE RJ45 tipo tornillo de mariposa - Para redes de datos
- 1x Intel® i350_AM4
- Conector RJ45 de 4 puertos
- PCI-E 2.0 x4
Bloque de texto
No se pudo cargar la disponibilidad de retiro
Descuento por volumen disponible: solicite cotización.
Ver todos los detalles



Recently Viewed
Advantech 4 puertos 1GbE RJ45 tipo tornillo de mariposa - Para redes de datos
Resumen de información del producto

Acerca del producto
NMCs are cost-optimized, high density IO modules for use in Advantech's Network Application Platforms. A wide choice of GbE, 10GE and 40GE modules supporting copper and fiber interfaces with or without advanced LAN bypass gives our customers the flexibility to match varying deployment scenarios. Complementing a full range of network appliances supporting 1 to 8 NMC bays, these IO modules provide the scalability required to meet target price/performance ratios in even the most demanding use cases. At the same time, NMCs reduce the total cost of ownership and service cost via re-usability across the product range and multiple product generations. The option of factory and field installation enables upselling opportunities and "pay as you grow" concepts. Leveraging best-in-class Intel® Ethernet controller technology, NMCs provide a "it just works" user experience and a maximum of software compatibility.
- 1x Intel® i350_AM4
- 4 ports RJ45 connector
- PCI-E 2.0 x4
- NC-SI for IPMI Management
- Lan Bypass model available (Advanced LAN Bypass)
- RoHS compliant
Especificaciones técnicas
Technical Information | |
Application/Usage | Data Networking |
Interfaces/Ports | |
Interfaces/Ports Details | 4 x RJ-45 10/100/1000Base-T LAN |
Connector Type | RJ-45 |
Total Number of Ports | 4 |
Media & Performance | |
Network Technology | 10/100/1000Base-T |
Ethernet Technology | Gigabit Ethernet |
Media Type Supported | Twisted Pair |
Miscellaneous | |
Country of Origin | China |
Environmentally Friendly | Yes |
Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
Waste Electrical and Electronic Equipment Directive (WEEE) | |
Physical Characteristics | |
Form Factor | Plug-in Module |
Height | 1.67" (42.40 mm) |
Width | 2.94" (74.60 mm) |
Depth | 6.88" (174.70 mm) |
General Information | |
Product Type | Network Module |
Manufacturer Part Number | NMC-0121-04CSA1 |
Manufacturer Website Address | http://www.advantech.com |
Manufacturer | Advantech Co., Ltd |
Product Model | NMC-0121 |
Product Name | 4 Ports 1GbE RJ45 Thumbscrew Type |
Brand Name | Advantech |
