Acerca del producto

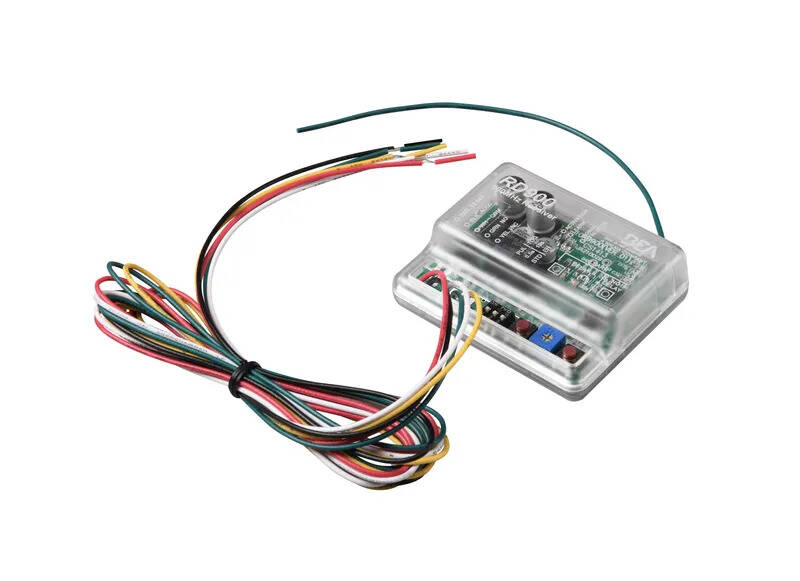

The Norton 537 Receiver is a single-channel 900MHz receiver for low-energy Norton 5600, 5700, 6000 and 6300 Series operators. Works with 900MHz transmitters, allowing wireless control of interior, non-fire rated doors, as well as allowing users to integrate compatible access control hardware— like push plates and hands-free sensors— with minimal installation required when paired with a 900MHz wireless transmitter. Up to 100 transmitters can be paired with a single receiver, enabling complex and custom control.
On-board learn button allows for fast pairing with compatible receivers, and the built-in delay potentiometer and dip switches allow for custom delay, relay toggle on/off, or 0.5/10s pulse for momentary or held relay control. Uses 9V battery (Type 6LR61).
NOR-537 Specs and Features
- Wireless 900MHz receiver
- Works with 900MHz transmitters (max 100 per receiver)
- Works with Norton 5600, 5700, 6000 and 6300 Series commercial door operators
- Built-in terminals and wiring (12-24VAC/DC, COM, NO and NC and antenna wire)
- Dimensions (H x W x D): 0.75’’ x 2.5’’ x 2’’
Especificaciones técnicas
The Norton 537 Receiver is a single-channel 900MHz receiver for low-energy Norton 5600, 5700, 6000 and 6300 Series operators. Works with 900MHz transmitters, allowing wireless control of interior, non-fire rated doors, as well as allowing users to integrate compatible access control hardware— like push plates and hands-free sensors— with minimal installation required when paired with a 900MHz wireless transmitter. Up to 100 transmitters can be paired with a single receiver, enabling complex and custom control.
On-board learn button allows for fast pairing with compatible receivers, and the built-in delay potentiometer and dip switches allow for custom delay, relay toggle on/off, or 0.5/10s pulse for momentary or held relay control. Uses 9V battery (Type 6LR61).
NOR-537 Specs and Features
- Wireless 900MHz receiver
- Works with 900MHz transmitters (max 100 per receiver)
- Works with Norton 5600, 5700, 6000 and 6300 Series commercial door operators
- Built-in terminals and wiring (12-24VAC/DC, COM, NO and NC and antenna wire)
- Dimensions (H x W x D): 0.75’’ x 2.5’’ x 2’’
