Acerca del producto

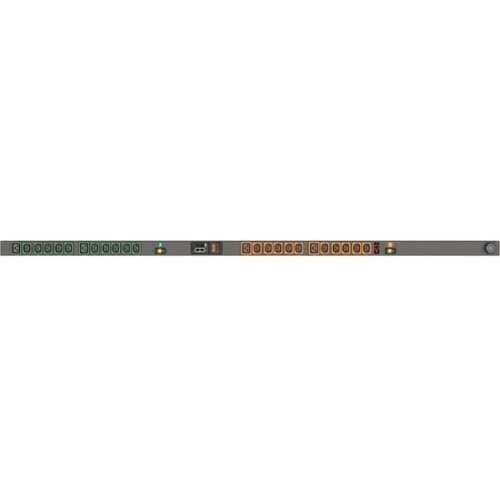

The NU30023L provides IP-based monitoring and outlet control with quick access to real-time outlet-level power metrics and environmental sensor data. Using Visible Light Communication (VLC) technology, NU30023L optically transmits power usage data from its LED display to a handheld device using the Geist Mobile App, presenting comprehensive power usage data down to the phase and circuit levels. With the Geist Upgradeable hot-swap technology, users may easily upgrade PDUs to the latest available technology by replacing the Interchangeable Monitoring Device (IMD) module.
- PDU distributes AC power to multiple servers and balances the load on the servers
- Remotely control individual outlets for rebooting of locked equipment with switched PDUs
Especificaciones técnicas
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Management | |
| Management | Protocols:
|
| Miscellaneous | |
| Country of Origin | United States |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Power Description | |
| Input Voltage | 230 V AC |
| Output Voltage | 208 V AC |
| Input Current | 30 A |
| Input Voltage Range | 200 V AC - 240 V AC |
| Power Rating (Watt) | 4.90 kW |
| Physical Characteristics | |
| Length | 66.25" (1682.75 mm) |
| Mount Type | Rack-mountable |
| Rack Height | 0U |
| Width | 2" (50.80 mm) |
| Depth | 2.60" (66.04 mm) |
| Mounting Orientation | Vertical |
| General Information | |
| Product Type | PDU |
| Manufacturer Part Number | NU30023L |
| Manufacturer Website Address | http://www.vertiv.com/ |
| Manufacturer | Vertiv |
| Product Model | MNU3EGB1-24PJ48-3TL6A0A10-S |
| Product Name | MNU3EGB1-24PJ48-3TL6A0A10-S 24-Outlet PDU |
| Brand Name | Vertiv Geist |
| Technical Information | |
| Protection Type | Overcurrent Protection |
| Plug/Connector Type | NEMA L6-30P |
| Receptacle Type | U-Lock IEC 60320 C19 |
| U-Lock IEC 60320 C13 | |
| PDU Type | Switched |
| Receptacle Detail | 20 x U-Lock IEC 60320 C13 |
| 4 x U-Lock IEC 60320 C19 | |
| Plug/Connector Detail | 1 x NEMA L6-30P |
