Acerca del producto
Tripp Lite's OMNI SMART 350HG offers medical-grade UPS protection with built-in line interactive voltage regulation, intelligent monitoring and unattended shutdown capability. Hospital-grade plug & outlets, plus built-in isolation transformer with Faraday shield offers full isolation and removes common mode noise. UL 60601-1 listed as medical electrical equipment. 330VA power handling capacity supports computers, inter-networking equipment and other critical loads during commercial power failures. Line interactive voltage regulation corrects brownouts as low as 83V back to normal 120V levels, saving battery reserves for use only during complete power failures. Includes, 2 line phone surge suppression and built-in DB-9 communications port that works with PowerAlert Software and cabling to provide automatic unattended shutdown of connected network and PC applications.
- 330VA line interactive tower UPS
- Maintains sine-wave 120V nominal output over an input range of 83 to 132V
- Professional features include serial port, hospital grade plug & outlets, built-in isolation transformer and UL60601-1 listing

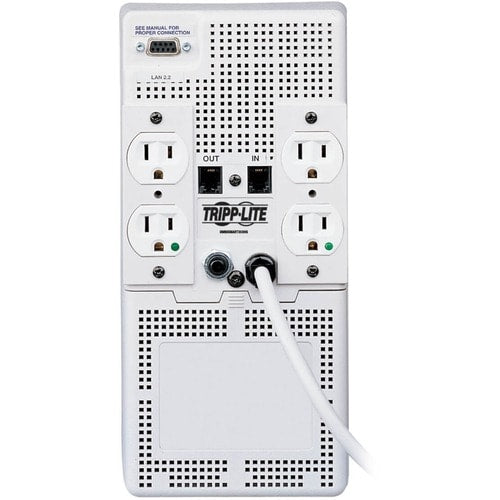

- Input: Hospital-grade NEMA 5-15P (120V 15A) / Output: 4 Hospital-grade NEMA 5-15R (120V)
- 2 line phone suppression for TEL/DSL line protection
- Leakage current less than 100
- microamps
Especificaciones técnicas
| Controls/Indicators | |

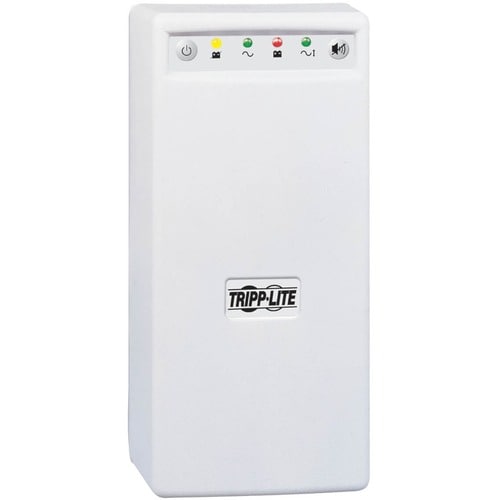

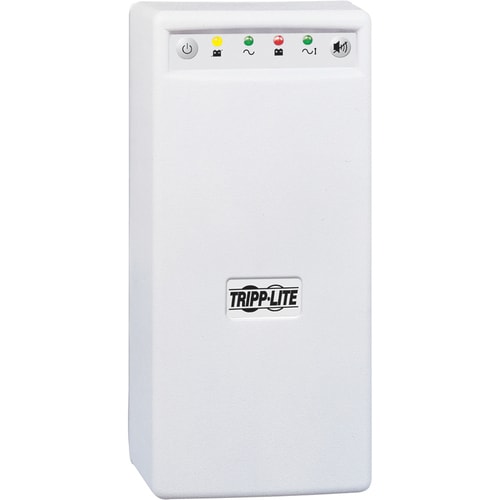

| Status Indicators | Includes 4 front-panel status indicator LEDs for line power, battery power, voltage regulation and battery low/replace status |
| Environmental Conditions | |
| Maximum Operating Temperature | 104°F (40°C) |
| Management | |
| Network Management | SNMP Manageable |
| Alarm | On Battery |
| Miscellaneous | |
| Additional Information |
|
| Package Contents |
|
| Certifications & Standards | UL1778 (USA, Series AGOM350KSR57HG), UL2601-1 (Medical), cUL (Canada), FCC Class B (emissions), FCC Part 68 / Industry of Canada (telecommunications), Conforms to IEEE 587 / ANSI C62.41 specifications |
| Country of Origin | China |
| Power Description | |
| Input Voltage | 110 V AC |
| Output Voltage | 120 V AC |
| Load Capacity (VA) | 330 VA |
| Load Capacity (Watt) | 225 W |
| Technical Information | |
| Plug/Connector Type | NEMA 5-15P |
| Cord Length | 6 ft (1.83 m) |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 4 x NEMA 5-15R |
| Battery Information | |
| Battery Life | 6 Year |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Half Load) | 46 Minute |
| Backup/Run Time (Full Load) | 18 Minute |
| Typical Battery Recharge Time | 4 Hour |
| Physical Characteristics | |
| Weight (Approximate) | 25 lb (11339.81 g) |
| Form Factor | Tower |
| Height | 10.50" (266.70 mm) |
| Width | 7.50" (190.50 mm) |
| Depth | 4.75" (120.65 mm) |
| General Information | |
| Product Type | Line-interactive UPS |
| Manufacturer Part Number | OMNISMART350HG |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Manufacturer | Eaton Corporation |
| Product Name | OmniSmart 350HG UPS |
| Product Line | OmniSmart |
| Brand Name | Tripp Lite by Eaton |
