Acerca del producto

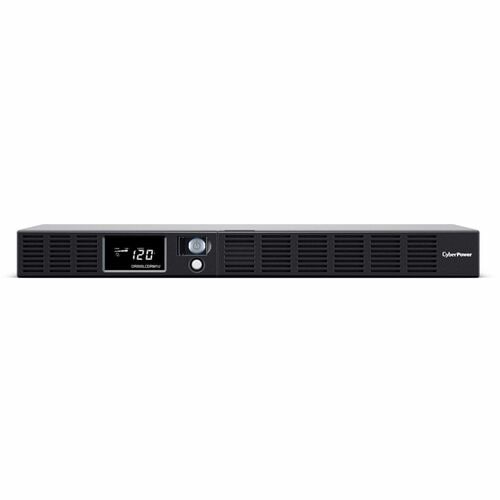

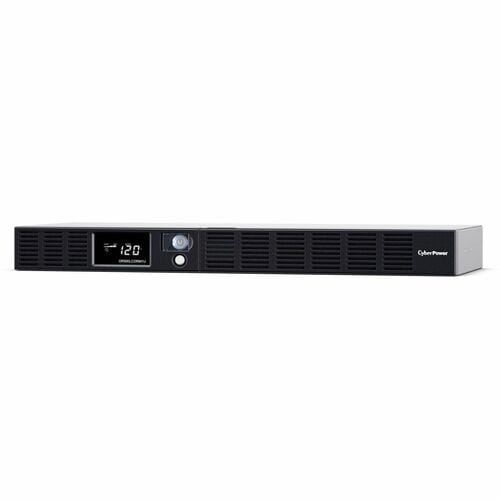

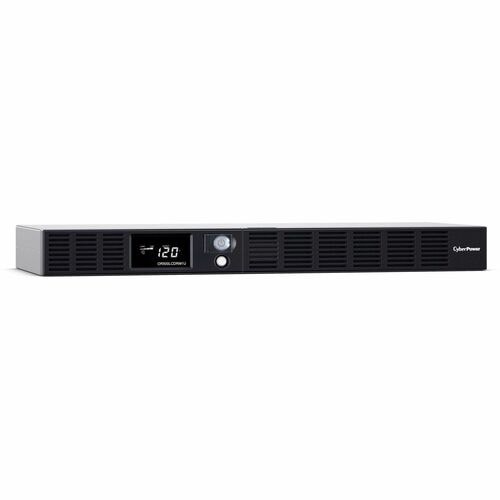

A rackmount UPS with line interactive topology, the CyberPower Smart App LCD OR500LCDRM1U provides battery backup (using simulated sine wave output) and surge protection for department servers, workgroup servers, workstations, network devices, and telecom installations without active PFC power supplies. The OR500LCDRM1U uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The OR500LCDRM1U comes with a three-year warranty and a $300,000 Connected Equipment Guarantee.
- Capacity: 500VA / 300W
- Topology: Line Interactive
- Waveform: Simulated Sine Wave
- Output: 120Vac ± 10%
- Plug type & cord: NEMA 5-15P, 10 ft. cord

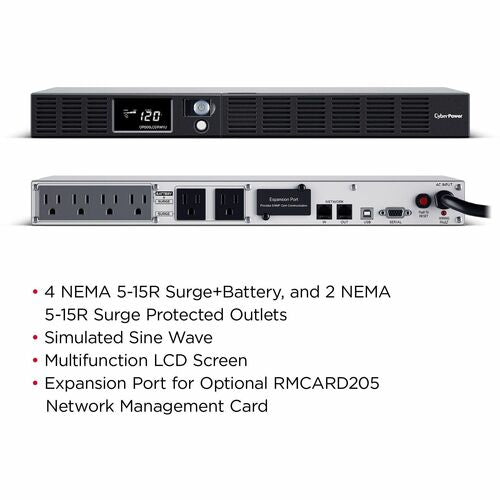

- Outlet types: 6 × NEMA 5-15R
- Communication: USB, Relay, SNMP
- Management software: PowerPanel® Business
- Remote management: Yes, with optional RMCARD205
- ENERGY STAR® certified: Yes
Especificaciones técnicas
| Controls/Indicators | |
| Status Indicators | On Unit:
LCD Panel:
|
| Warranty | |
| Additional Warranty Information | CyberPower stands behind its products by offering an industry leading 3-year warranty. CyberPower also has a #1 rated technical support team that will assist you with product, installation, or warranty concerns --- Free of charge. |
| Interfaces/Ports | |
| Serial Port | Yes |
| USB (HID Compliant) Port | Yes |
| Environmental Conditions | |
| Maximum Operating Temperature | 104°F (40°C) |
| Maximum Operating Elevation | 10000 ft (3048000 mm) |
| Maximum Storage Elevation | 60" (1524 mm) |
| Management | |
| Alarm | On Battery |
| Overload | |
| Battery Mode | |
| Power Description | |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Surge Energy Rating | 1150 J |
| Waveform Type | Simulated Sine Wave |
| Input Voltage Range | 90 V AC - 140 V AC |
| Input Frequency | 63 Hz |
| Load Capacity (VA) | 500 VA |
| General Information | |
| Product Type | Line-interactive UPS |
| Manufacturer Part Number | OR500LCDRM1U |
| Manufacturer Website Address | https://www.cyberpowersystems.com/ |
| Manufacturer | CyberPower Systems, Inc |
| Product Model | OR500LCDRM1U |
| Product Name | Smart App Intelligent LCD OR500LCDRM1U 500VA UPS |
| Product Series | Smart App LCD UPS |
| Brand Name | CyberPower |
| Miscellaneous | |
| Additional Information |
|
| Package Contents |
|
| Software Included | PowerPanel® Business |
| Certifications & Standards |
|
| Country of Origin | Philippines |
| Environmentally Friendly | Yes |
| Energy Star | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Physical Characteristics | |
| Weight (Approximate) | 18 lb (8164.66 g) |
| Form Factor | Rack-mountable |
| Rack Height | 1U |

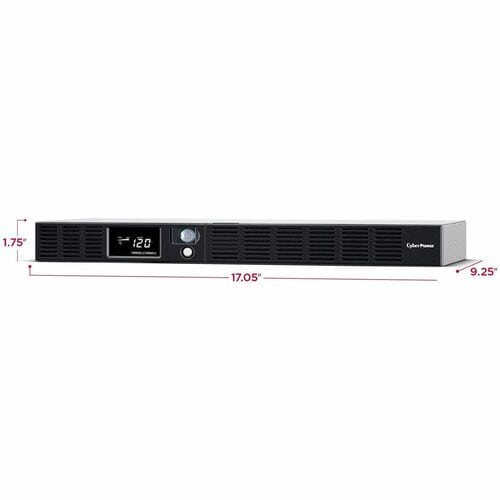

| Height | 1.75" (44.45 mm) |
| Width | 17.05" (433.07 mm) |
| Depth | 9.25" (234.95 mm) |
| Product Color | Black |
| Color Family | Black |
| Battery Information | |
| Battery Chemistry | Lead Acid |
| Battery Size | 6V |
| Battery Capacity | 7000 mAh |
| Number of Batteries | 2 |
| Backup/Run Time (Half Load) | 12 Minute |
| Backup/Run Time (Full Load) | 3 Minute |
| Battery Characteristics | Maintenance-free |
| Replaceable Battery | Yes |
| Typical Battery Recharge Time | 8 Hour |
| Technical Information | |
| Application/Usage | Workstation |
| Telecommunication | |
| Server | |
| Network Device | |
| Dataline Protection | RJ-11 |
| RJ-45 | |
| Overload Protection | Yes |
| Protection Type | Sag |
| Black Out | |
| Dataline Surge | |
| AC Surge | |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| EMI/RFI Noise Filter | Yes |
| AVR | Yes |
| Energy Saving | GreenPower UPS™ Bypass Technology |
| Number of Battery & Surge Outlets | 4 |
| Number of Surge-only Outlets | 2 |
| Transfer Time | 8 ms |

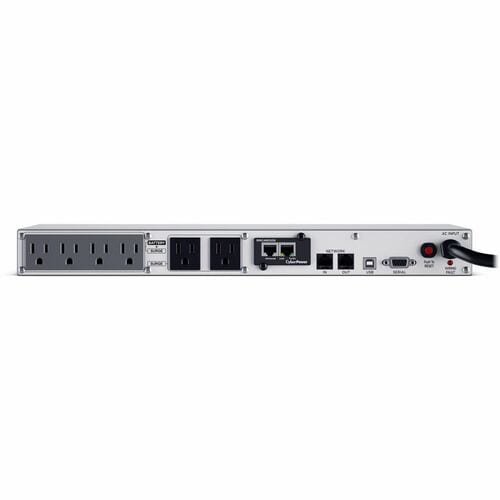

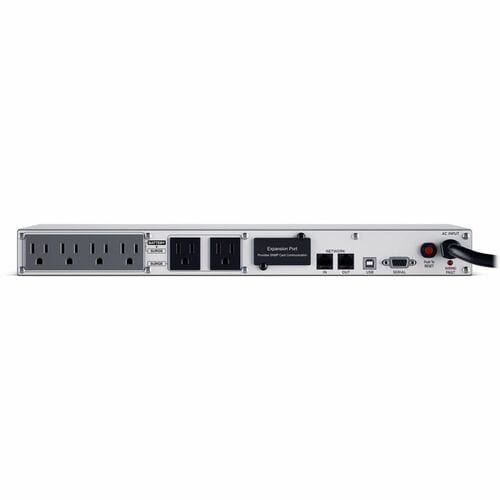

| Receptacle Detail | 6 x NEMA 5-15R |
