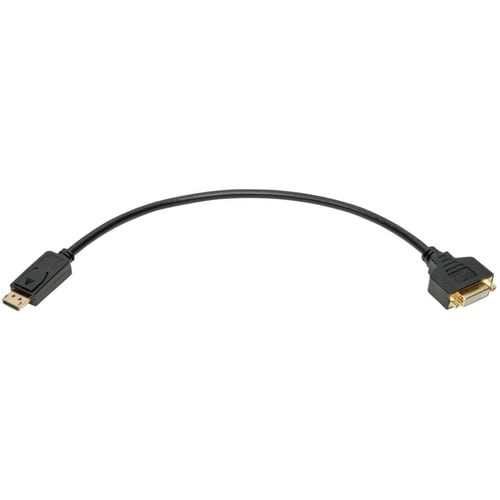

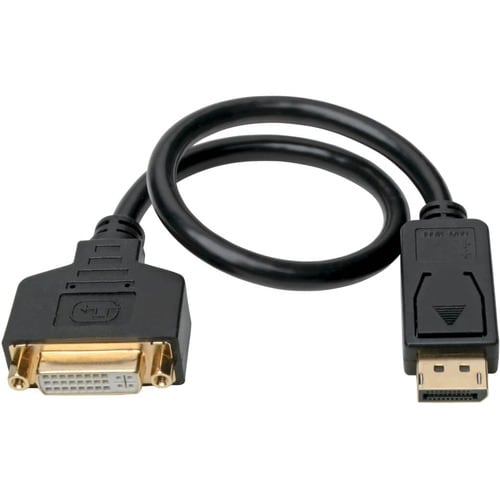

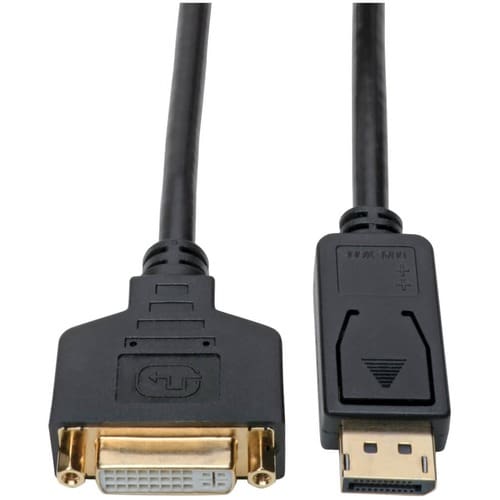

DP to DVI Converter Connects a DisplayPort Source to Your Existing DVI Display
This DisplayPort to DVI converter connects a DVI monitor or projector to the DisplayPort (DP) output on your notebook computer, desktop PC, Chromebook Pixel or other compatible device. It features a male DP connector and a female dual-link DVI-I connector, allowing you to continue using your existing DVI display and DVI cable to transmit video signals without the expense of a new DP display.
Transmits Outstanding 1080p Video for High-Definition Presentations
Ideal for classrooms, lecture halls and anywhere else you may give a presentation, this DisplayPort to DVI converter supports DVI-D single-link computer video resolutions up to 1920 x 1200 (at 60 Hz) and high-definition resolutions up to 1080p. It also complies with HDCP 2.2 and DisplayPort 1.1 standards. Molded gold-plated connectors and contacts provide maximum conductivity and minimum data loss to guarantee a clear transmission free of interference. The P134-001-GC is a passive adapter and requires that the connected computer has a DP++ ( DisplayPort ++ ) port, which allows DVI signals to be passed through. Check the documentation for your DisplayPort source for compatibility.
Ready to Use Right Out of the Package
The plug-and-play adapter requires no software, drivers or external power, so you can connect it to your devices right away. Only one foot in length, the P134-001-GC is recommended for stowing in your laptop bag and carrying to school, the office or the latest trade show.
- Features Molded
- Lets you enjoy HD quality movies
- Features DisplayPort/DVI-I cable type
Especificaciones técnicas
| Miscellaneous | |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) | |
| Physical Characteristics | |
| Shipping Weight (Approximate) | 2.08 oz (58.97 g) |
| Weight (Approximate) | 2.12 oz (60 g) |
| Shipping Height | 9" (228.60 mm) |
| Shipping Width | 7" (177.80 mm) |
| Product Color | Black |
| Color Family | Black |
| General Information | |
| Product Type | Video Cable |
| Manufacturer Part Number | P134001GC |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Manufacturer | Eaton Corporation |
| Product Model | P134-001-GC |
| Product Name | P134-001-GC DisplayPort to DVI Cable Adapter - M/F, Black, 1 ft. |
| Brand Name | Tripp Lite by Eaton |
| Technical Information | |
| Cable Length | 1 ft (0.30 m) |
| Device Supported | Projector |
| Notebook | |
| Monitor | |
| Desktop Computer | |
| Chromebook | |
| Video Device | |
| Features | Consumer Electronics Control (CEC) |
| Extended Display Identification Data (EDID) | |
| Passive | |
| Molded | |
| HDCP 2.2 | |
| Cable Type | DisplayPort/DVI-I |

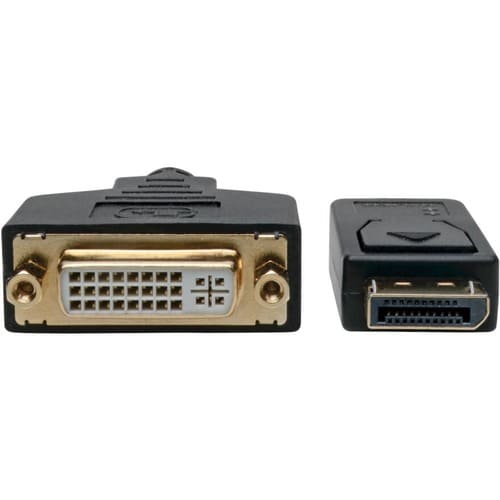

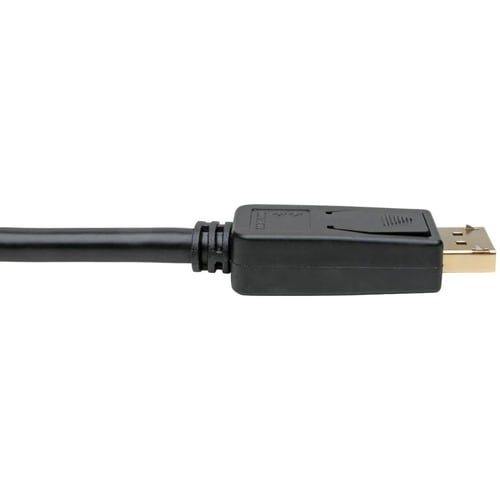

| Connector Type on First End | DisplayPort Digital Audio/Video - Male |

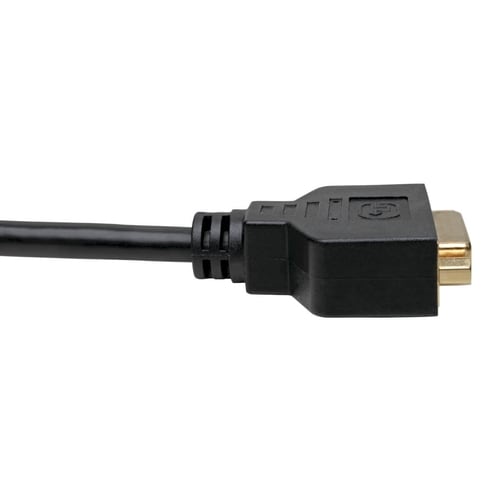

| Connector Type on Second End | DVI-I (Dual-Link) Digital Video - Female |
| Connector Plating | Gold |
| Supported Resolution | 1920 x 1200 |
| Contact Plating | Gold |
| Connector on First End Details | 1 x DisplayPort Digital Audio/Video - Male |
| Connector on Second End Details | 1 x DVI-I (Dual-Link) Digital Video - Female |
