Acerca del producto

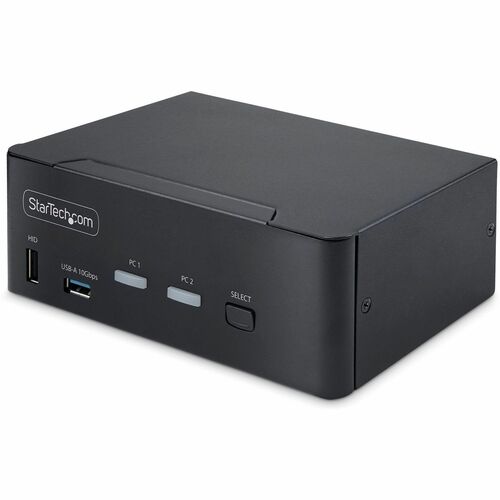

This dual-monitor KVM switch allows users to switch between two USB and DisplayPort-enabled desktops. It allows for sharing of dual-8K 60Hz DisplayPort monitors, a keyboard and mouse, and two USB 10Gbps devices.
Dual-8K 60Hz Displays & USB 10Gbps Hub Ports
This TAA-compliant KVM Switch supports dual 8K 60Hz DisplayPort monitors, making it ideal for working with high-resolution graphics or video. It also features two USB 3.2 Gen 2 (10Gbps) hub ports for fast data transfer, and four USB HID ports for the keyboard, mouse, and two additional USB peripherals.
Fast Switching with USB Emulation
USB emulation technology enables faster keyboard, video, and mouse switching compared to traditional KVMs. USB Emulation also ensures compatibility with combo keyboards/mice and keyboards featuring extra function keys.
Switching Options

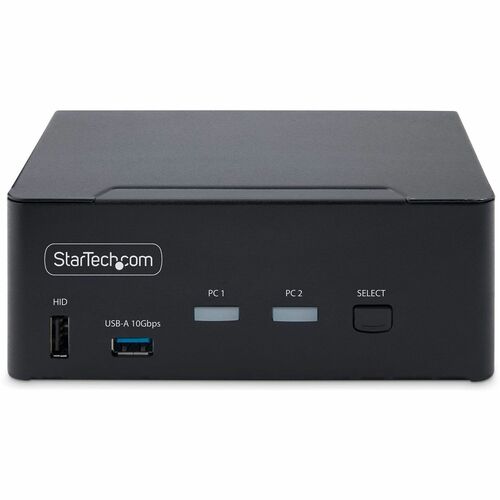

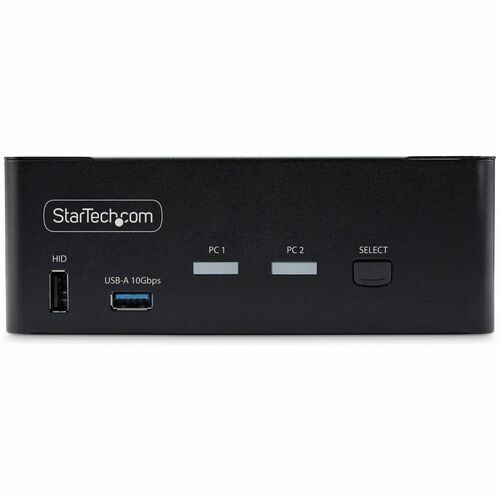

This Universal KVM Switch offers hotkey or push-button switching options. Hotkeys allow for independent switching of audio, enabling audio playback from one computer while controlling the other. An audible buzzer confirms hotkey input, and LEDs provide a visual status of the selected host.
- DUAL 8K 60HZ WITH HDR: Control two USB and DisplayPort-enabled desktops from a shared keyboard, mouse, audio device, and dual 8K 60Hz, 4K 144Hz, or 4K 120Hz DP 1.4 monitors; Supports HDR (up to 10-bit YCbCr 4:4:4); DSC required for maximum performance
- FAST & COMPATIBLE SWITCHING: USB Emulation enables fast switching of up to four USB HID devices between two desktops/workstations; USB Emulation ensures compatibility with combo keyboards/mice; Works with any operating system and all hardware platforms

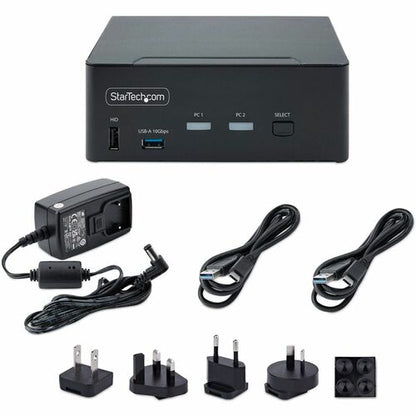

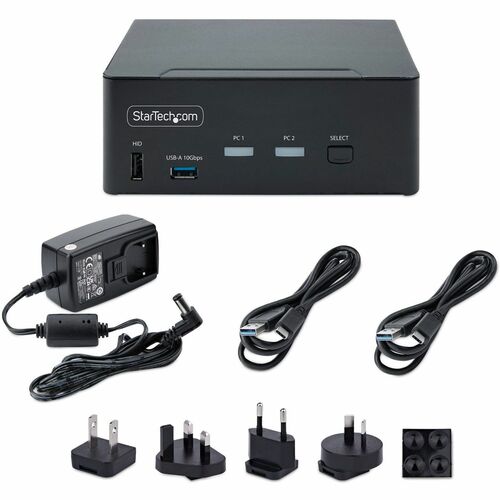

- 2X FASTER DATA TRANSFER: Two USB 3.2 Gen 2 (10Gbps) ports enable faster transfer speeds than USB Gen 1 (5Gbps) KVMs; Ideal for transferring large files or editing high-resolution photos/videos on external storage; 2x USB-C to USB-A 10Gbps cables included
- MULTIPLE SWITCHING OPTIONS: Universal KVM Switch can be controlled via push-buttons or hotkeys, with an audible buzzer providing confirmation; LEDs provide quick visual port selection status; Listen to audio from one computer, while controlling the other
- DURABLE DESIGN: Durable steel housing helps prevent Electro-Magnetic Interference (EMI) enhancing stability/reliability of the KVM; Sturdy construction is ideal for installation in various environments; 8kV Air/6kV Contact ESD protection; TAA Compliant
Especificaciones técnicas
| Environmental Conditions | |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Video | |
| Maximum Video Resolution | 7680 x 4320 |
| Graphic Mode | 8K |
| 4K | |
| Miscellaneous | |
| Package Contents |
|
| TAA Compliant | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Waste Electrical and Electronic Equipment Directive (WEEE) | |

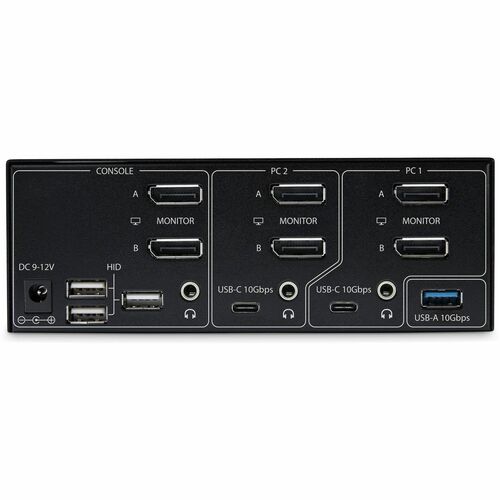

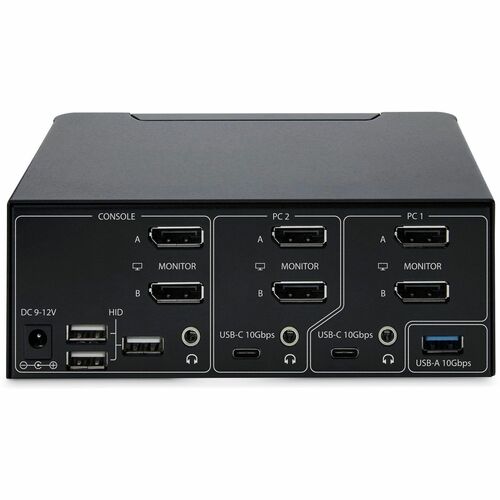

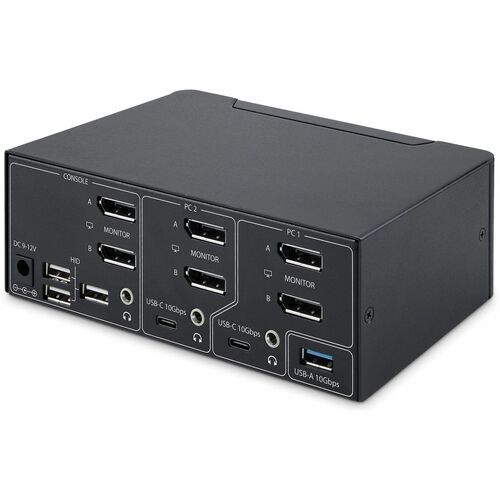

| Interfaces/Ports | |
| USB | Yes |
| Number of USB Ports | 8 |
| DisplayPort | Yes |
| USB Standard | USB 3.2 |
| Number of DisplayPorts | 6 |
| Physical Characteristics | |
| Weight (Approximate) | 1.70 lb (771.11 g) |
| Form Factor | Desktop |
| Length | 6.30" (160.02 mm) |
| Height | 2.40" (60.96 mm) |
| Width | 3.90" (99.06 mm) |
| Power Description | |
| Frequency | 120 Hz |
| 144 Hz | |
| 60 Hz | |
| Input Current | 1 A |
| Input Voltage Range | 100-240 AC |
| Power Plug Type | Type M |
| General Information | |
| Product Type | KVM Switchbox |
| Manufacturer Part Number | P2CDD143-KVM-SWITCH |
| Manufacturer Website Address | http://www.startech.com |
| Packaged Quantity | 1 |
| Manufacturer | StarTech.com |
| Product Name | KVM Switchbox |
| Brand Name | StarTech.com |
| Technical Information | |
| Connectivity Technology | Wired |
| Features | LED Indicator |
| Maximum Data Transfer Rate | 1.25 GB/s |
| KVM Technology | Digital & Analog |
| Number of Computers Supported | 2 |
| Number of Local Users Supported | 1 |
| Device Type | Desktop KVM |
