Acerca del producto

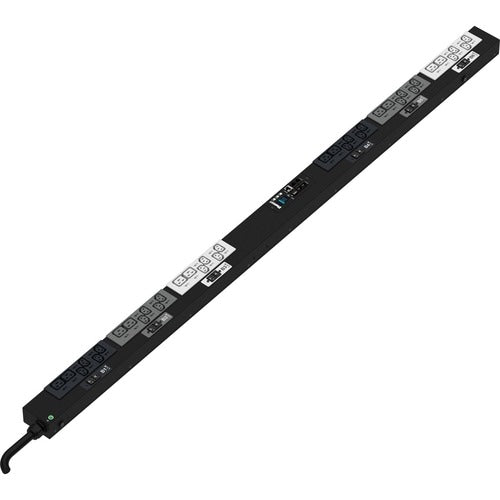

The SmartZone™ G5 Monitored Per Outlet PDU features (24) C13 and (12) C19 outlets. It is a 30 amp, 415 V, three phase PDU with a NEMA L22-30P input plug and a 10 foot (3m) power cord. The PDU is black.
- PDU provides power control as remote controlled relay & load monitoring
- Before critical input source become overloaded always be warned with monitored PDUs
Especificaciones técnicas
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Input Voltage | 415 V AC |
| Output Voltage | 240 V AC |
| Power Rating (Watt) | 17.30 kW |
| Physical Characteristics | |
| Mount Type | Rack-mountable |
| Height | 68.90" (1750 mm) |
| Width | 3.31" (84 mm) |
| Depth | 2.09" (53 mm) |
| Mounting Orientation | Vertical |
| Product Color | Black |
| Color Family | Black |
| Technical Information | |
| Plug/Connector Type | NEMA L22-30P |
| Phase | Three Phase |
| Receptacle Type | IEC 60320 C19 |
| IEC 60320 C13 | |
| PDU Type | Monitored |
| Receptacle Detail | 24 x IEC 60320 C13 |
| 12 x IEC 60320 C19 | |
| General Information | |
| Product Type | PDU |
| Manufacturer Part Number | P36F02M |
| Manufacturer Website Address | http://www.panduit.com |
| Packaged Quantity | 1 |
| Manufacturer | PANDUIT CORP |
| Product Name | SmartZone G5 36-Outlets PDU |
| Product Line | SmartZone |
| Product Series | G5 |
| Brand Name | Panduit |
