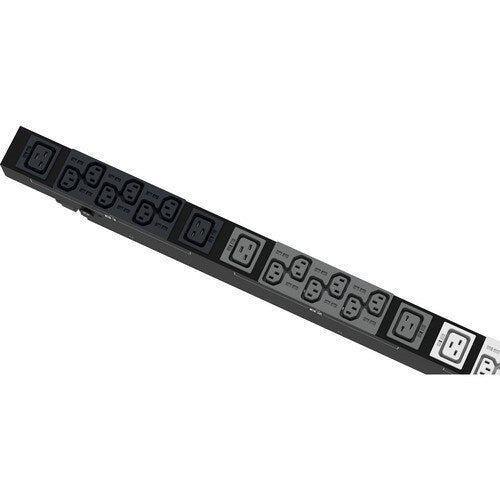

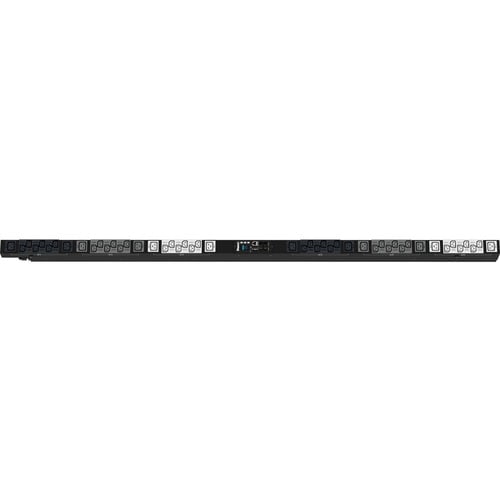

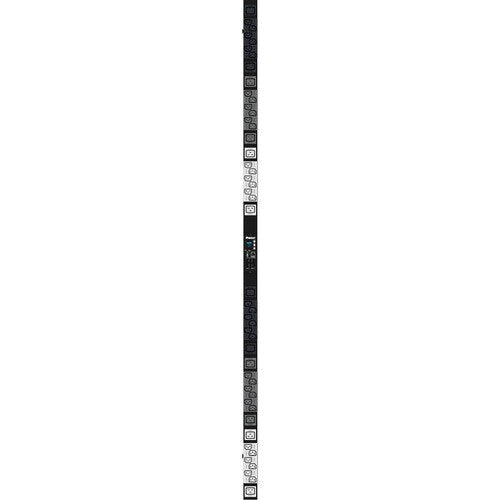

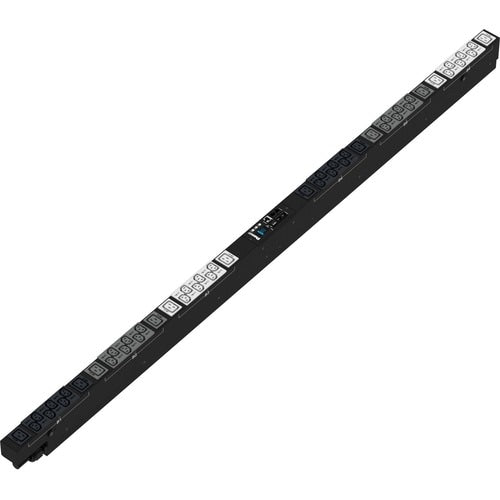

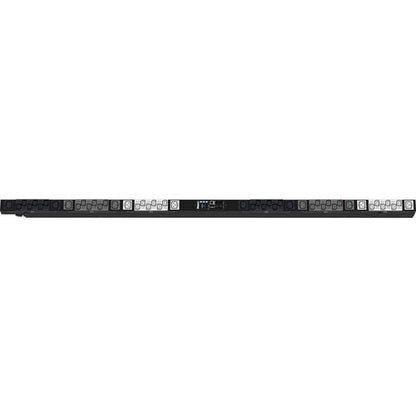

The Panduit® SmartZone™ G5 iPDU is more than a power distribution unit and energy meter. These iPDUs monitor the data center power and environment (at the rack or cabinet level), by continuously scanning for electrical circuit overloads, and physical environmental conditions that place critical IT equipment at risk. Panduit's iPDUs provide comprehensive, accurate, energy measurement data to efficiently use power resources, make informed capacity planning decisions, improve uptime, measure PUE (power usage effectiveness), and drive green data center initiatives to save energy and money.
Making the right choice in IT equipment is essential for a safe, efficient data center operation. Our full range of iPDUs, environmental sensors, and dual locking power cords are the key to fulfilling mission-critical data center needs.
Making the right choice in IT equipment is essential for a safe, efficient data center operation. Our full range of iPDUs, environmental sensors, and dual locking power cords are the key to fulfilling mission-critical data center needs.
- Provide circuit protection and easy configuration for trouble-free access
- With monitored PDU, you can remotely monitor single-or three-phase voltage easily
Especificaciones técnicas
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Management | |
| Management | Protocols:
|
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) | |
| Power Description | |
| Input Voltage | 120 V AC |
| 415 V AC | |
| Output Voltage | 208 V AC |
| Input Current | 30 A |
| Power Rating (VA) | 17.30 kVA |
| Physical Characteristics | |
| Length | 71.70" (1821.18 mm) |
| Mount Type | Cabinet-mountable |
| Rack-mountable | |
| Rack Height | 0U |
| Width | 2" (50.80 mm) |
| Depth | 4.40" (111.76 mm) |
| Mounting Orientation | Vertical |
| General Information | |
| Product Type | PDU |
| Manufacturer Part Number | P48D07M |
| Manufacturer Website Address | http://www.panduit.com |
| Packaged Quantity | 1 |
| Manufacturer | PANDUIT CORP |
| Product Name | SmartZone G5 MI 48-Outlets PDU |
| Product Line | SmartZone |
| Product Series | MI |
| Brand Name | Panduit |
| Technical Information | |
| Protection Type | Overload Protection |
| Circuit Protection | |
| Plug/Connector Type | IEC 60309 3P+N+E 6h 30A (IP44) |
| Phase | Three Phase |
| Receptacle Type | IEC 60320 C19 |
| IEC 60320 C13 | |
| PDU Type | Monitored |
| Receptacle Detail | 36 x IEC 60320 C13 |
| 12 x IEC 60320 C19 | |
| Plug/Connector Detail | 1 x IEC 60309 3P+N+E 6h 30A (IP44) |
