Acerca del producto

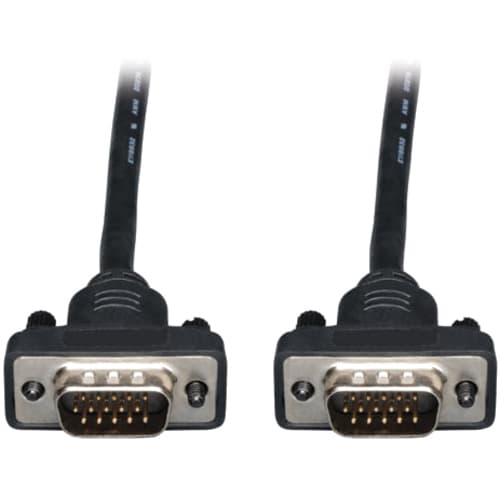

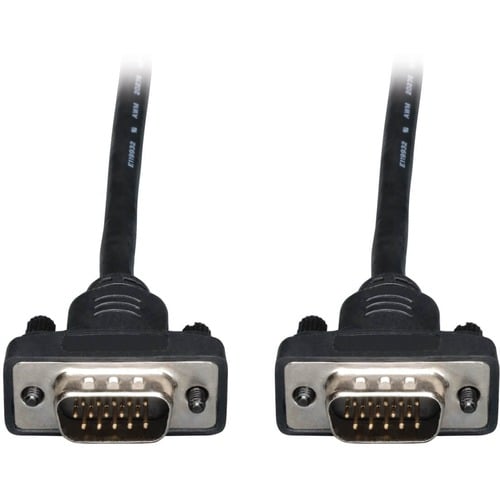

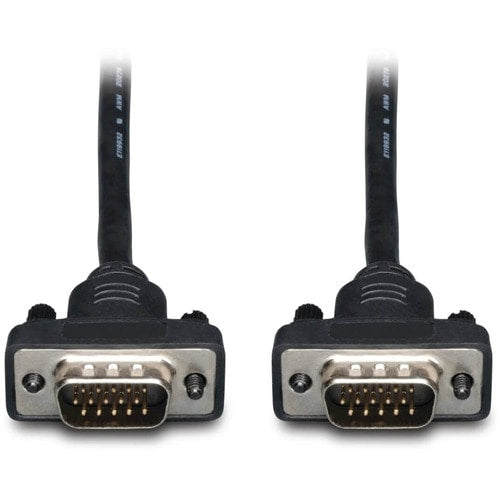

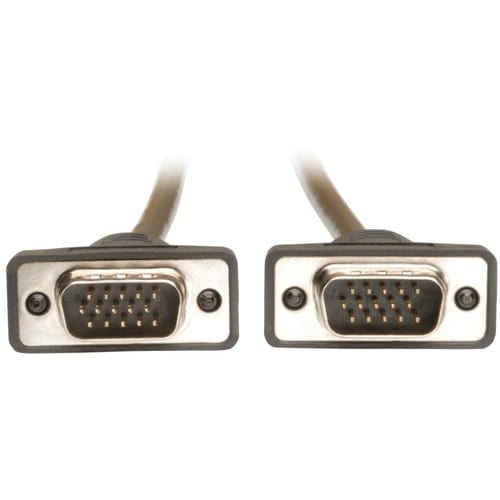

Tripp Lite's 6-ft, PVC, SVGA / VGA Compact monitor replacement cable, features a 40% reduced diameter cable, and smaller molded connectors. The mini-coax (RGB) and paired video wire construction delivers superior video signal quality, up to 2048x1536. Nickel plated connectors and gold plated copper contacts ensure excellent conductivity. Double shielding (foil and braid) provides maximum EMI/RFI protection. Both high density DB15 male connectors are molded and have integral strain relief to ensure long life. Tripp Lite warrants this product to be free from defects in materials and workmanship for life.
- Slim, compact SVGA / VGA Male-Male Cable , 6ft
- 40% thinner cable than standard VGA Cables
- More compact molded ends
- Supports up to 2048x1536 Resolution
Especificaciones técnicas
| Miscellaneous | |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Physical Characteristics | |
| Shipping Weight (Approximate) | 1.60 oz (45.36 g) |
| Shipping Height | 0.10" (2.54 mm) |
| Shipping Width | 5.10" (129.54 mm) |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Product Color | Black |
| Color Family | Black |
| General Information | |
| Product Type | Video Cable |
| Manufacturer Part Number | P502006SM |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Manufacturer | Eaton Corporation |
| Product Model | P502-006-SM |
| Product Name | P502-006-SM Coaxial Video Cable |
| Brand Name | Tripp Lite series |
| Technical Information | |
| Cable Length | 6 ft (1.83 m) |
| Conductor | Copper |
| Device Supported | Monitor |
| Shielding | Yes |
| Features | Molded |
| Cable Type | Coaxial |
| Connector Type on First End | HD-15 - Male |
| Connector Type on Second End | HD-15 - Male |
| Connector Plating | Nickel |
| Connector on First End Details | 1 x 15-pin HD-15 - Male |
| Connector on Second End Details | 1 x 15-pin HD-15 - Male |
