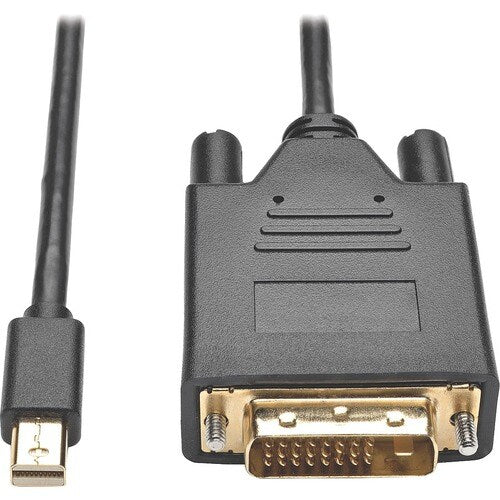

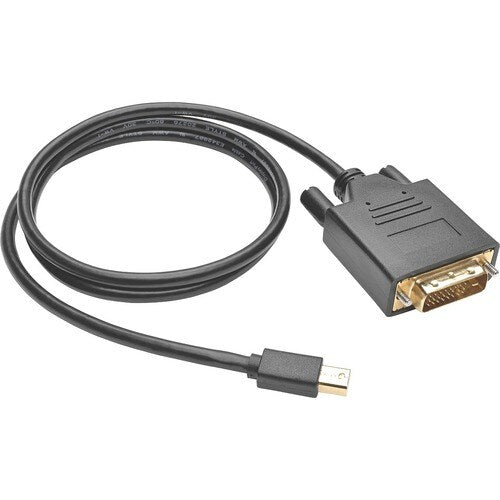

The P586-003-DVI-V2 Mini DisplayPort 1.2 to DVI Active Adapter Cable connects a Mini DisplayPort (or Thunderbolt) computer to the DVI port on a monitor, projector or television. With a Mini DisplayPort male connector on one end and a DVI-D male connector on the other, this cable requires no separate adapter. It lets you use your existing DVI display instead of buying a new Mini DisplayPort monitor.
Ideal for displaying video on a large monitor or digital sign, this cable supports high-definition video resolutions up to 1920 x 1080 (1080p). It converts both Single-Mode and Dual-Mode (DP++) Mini DisplayPort output, and is perfect for use with graphics cards, such as AMD Eyefinity, that don't output DP++ signals.
First-class foil and braid shielding delivers reliable, error-free signal quality and protection from EMI/RFI interference. Gold-plated connectors and contacts ensure excellent conductivity. Integral strain relief ensures the cable and molded connectors last a long time.
Ideal for displaying video on a large monitor or digital sign, this cable supports high-definition video resolutions up to 1920 x 1080 (1080p). It converts both Single-Mode and Dual-Mode (DP++) Mini DisplayPort output, and is perfect for use with graphics cards, such as AMD Eyefinity, that don't output DP++ signals.
First-class foil and braid shielding delivers reliable, error-free signal quality and protection from EMI/RFI interference. Gold-plated connectors and contacts ensure excellent conductivity. Integral strain relief ensures the cable and molded connectors last a long time.
- Active adapter cable for use with any Mini Displayport (or Thunderbolt) port
- Supports HD video resolution up to 1920 x 1080 (1080p)
- No separate adapter required
- Gold-plated connectors and contacts
Especificaciones técnicas
| Miscellaneous | |
| Country of Origin | Vietnam |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Physical Characteristics | |
| Shipping Weight (Approximate) | 1.44 oz (40.82 g) |
| Shipping Height | 9" (228.60 mm) |
| Shipping Width | 7" (177.80 mm) |
| Product Color | Black |
| Color Family | Black |
| General Information | |
| Product Type | Video Cable |
| Manufacturer Part Number | P586-003-DVI-V2 |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Manufacturer | Eaton Corporation |
| Product Model | P586-003-DVI-V2 |
| Product Name | P586-003-DVI-V2 Mini DisplayPort 1.2 to DVI Active Adapter Cable, 3 ft. |
| Brand Name | Tripp Lite by Eaton |
| Technical Information | |
| Cable Length | 3 ft (0.91 m) |
| Device Supported | Video Device |
| TV | |
| Monitor | |
| Graphics Card | |
| Projector | |
| Shielding | Yes |
| Features | EMI/RF Protection |
| Active | |
| Molded | |
| Strain Relief | |
| Eyefinity Technology | |
| Cable Type | DisplayPort/DVI-D |
| Connector Type on First End | DVI-D (Dual-Link) Digital Video - Male |
| Connector Type on Second End | Mini DisplayPort 1.2 Digital Audio/Video - Male |
| Connector Plating | Gold |
| Supported Resolution | 1920 x 1080 |
| Connector on First End Details | 1 x DVI-D (Dual-Link) Digital Video - Male |
| Connector on Second End Details | 1 x Mini DisplayPort 1.2 Digital Audio/Video - Male |
