Acerca del producto

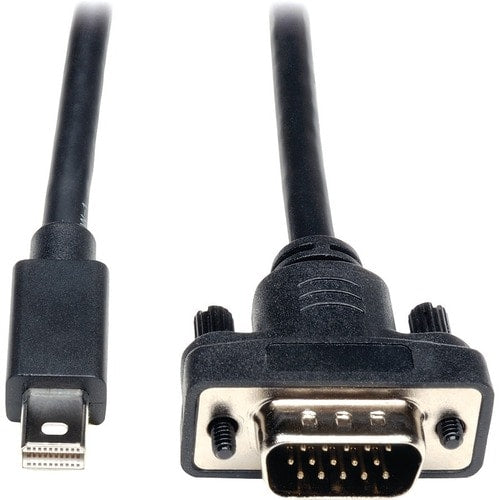

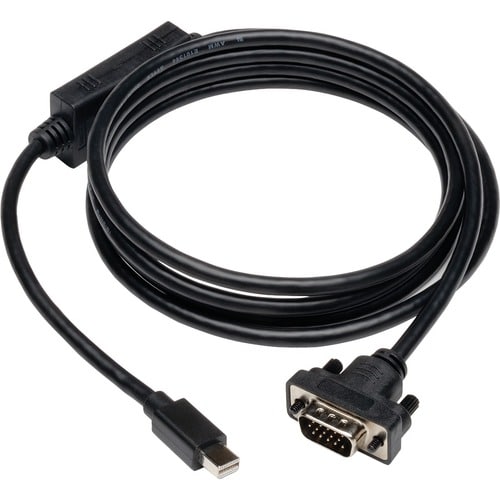

The P586-010-VGA-V2 Mini DisplayPort 1.2 to VGA Active Adapter Cable connects a Mini DisplayPort (or Thunderbolt) computer to the VGA port on a monitor, projector or television. With a Mini DisplayPort male connector on one end and an HD15 male connector on the other, this cable requires no separate adapter. It features a low profile VGA connector that fits neatly into the available monitor space
without jamming between the wall and the back of the display or impeding neighboring connectors. It lets you use your existing VGA display instead of buying a new Mini DisplayPort monitor.Ideal for displaying video on a large monitor or digital sign, this cable supports computer video resolutions up to 1920 x 1200 and high-definition video resolutions up to 1920 x 1080 (1080p). It converts both Single-Mode and Dual-Mode (DP++) Mini DisplayPort output, and is perfect for use with graphics cards, such as AMD Eyefinity, that don't output DP++ signals.First-class foil and braid shielding delivers reliable, error-free signal quality and protection from EMI/RFI interference. Nickel-plated connectors with gold-plated contacts ensure excellent conductivity. Integral strain relief ensures the cable and molded connectors last a long time. More from the ManufacturerActive adapter cable for use with any Mini Displayport (or Thunderbolt) portLow-profile VGA connector fits neatly into available space; no jamming between wall and monitor or impeding neighboring connectionsSupports computer video resolution up to 1920 x 1200Supports HD video resolution up to 1920 x 1080 (1080p)No separate adapter requiredNickel-plated connectors with gold-plated contacts
Especificaciones técnicas
| Miscellaneous | |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Physical Characteristics | |
| Product Color | Black |
| Color Family | Black |
| General Information | |
| Product Type | Video Cable |
| Manufacturer Part Number | P586-010-VGA-V2 |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Manufacturer | Eaton Corporation |
| Product Model | P586-010-VGA-V2 |
| Product Name | P586-010-VGA-V2 Mini DisplayPort 1.2 to VGA Active Adapter Cable, 10 ft. |
| Brand Name | Tripp Lite by Eaton |
| Technical Information | |
| Cable Length | 10 ft (3.05 m) |
| Device Supported | Video Device |
| TV | |
| Graphics Card | |
| Monitor | |
| Projector | |
| Shielding | Yes |
| Features | Active |
| EMI/RF Protection | |
| Eyefinity Technology | |
| Strain Relief | |
| Molded | |
| Cable Type | DisplayPort/VGA |
| Connector Type on First End | HD-15 - Male |
| Connector Type on Second End | Mini DisplayPort 1.2 Digital Audio/Video - Male |
| Connector Plating | Nickel |
| Supported Resolution | 1920 x 1200 |
| Contact Plating | Gold |
| Connector on First End Details | 1 x 15-pin HD-15 - Male |
| Connector on Second End Details | 1 x Mini DisplayPort 1.2 Digital Audio/Video - Male |
