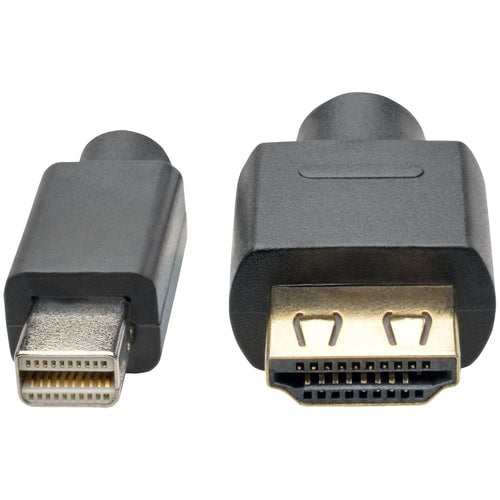

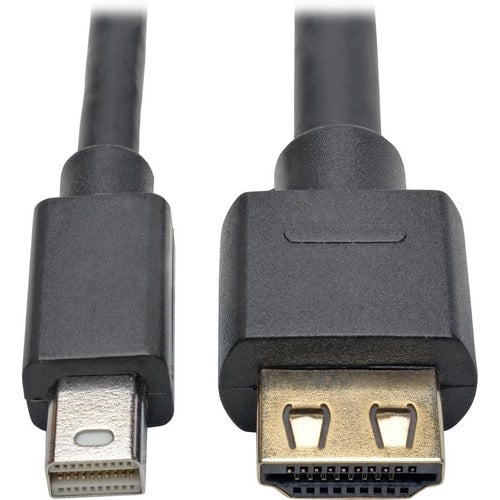

The P586-020-HD-V2A Mini DisplayPort 1.2a to HDMI Active Adapter Cable (M/M) connects an mDP- or Thunderbolt-enabled PC, Mac or Tablet (such as the Surface Pro series) to the HDMI port on a 4K monitor, projector or television. With an mDP male connector on one end and a gold-plated high-grip HDMI male connector on the other, this cable requires no separate power adapter. It lets you continue using an existing 4K HDMI display without the extra expense of buying a new mDP monitor.
Recommended for displaying crystal-clear video on a large monitor or digital sign, this cable supports HDMI 2.0 with full UHD video resolutions up to 3840 x 2160 (4K x 2K) at 60 Hz. The P586-020-HD-V2A also supports rich, full audio (if your DisplayPort™ card supports audio passthrough) and the latest HDCP 2.2 (High-Bandwidth Digital Content Protection) standards.
Because it's an active adapter, the 20-foot P586-020-HD-V2A is compatible with Single-Mode and Dual-Mode (DP++) DisplayPort output. It's perfect for use with graphics cards, such as AMD Eyefinity, that don't output DP++ signals.

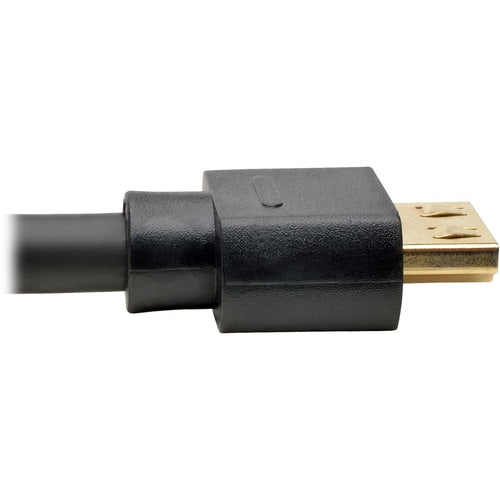

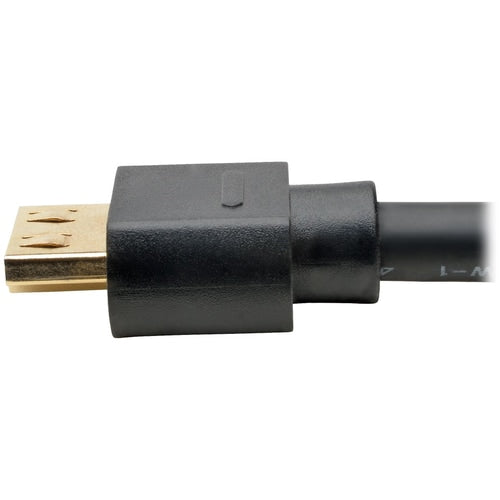

The corrosion-resistant gold-plated HDMI connector and contacts provide maximum conductivity and minimize data loss. Its special high-grip plug prevents a loose or accidentally disconnected cable from causing picture loss. Integral strain relief with ridges on each end gives the cable extra flexibility, reduces stress, and helps the cable and connectors move freely without cracking.
- Features Active
- Offers intense audio and video compatibility
- Enjoy the feast of movies with both video and sound device supported
- With HDMI and mini DisplayPort, transfer high-quality pictures and 3D sound effects simultaneously at a high-speed
Especificaciones técnicas
| Miscellaneous | |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Physical Characteristics | |
| Shipping Weight (Approximate) | 12.80 oz (362.87 g) |
| Shipping Height | 0.50" (12.70 mm) |
| Shipping Width | 6.30" (160.02 mm) |
| Product Color | Black |
| Color Family | Black |
| General Information | |
| Product Type | A/V Cable |
| Manufacturer Part Number | P586-020-HD-V2A |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Manufacturer | Eaton Corporation |
| Product Model | P586-020-HD-V2A |
| Product Name | P586-020-HD-V2A Mini DisplayPort 1.2a to HDMI Active Adapter Cable (M/M), 20 ft. |
| Brand Name | Tripp Lite by Eaton |
| Technical Information | |
| Cable Length | 20 ft (6.10 m) |
| Device Supported | Monitor |
| Projector | |
| Tablet | |
| Audio/Video Device | |
| Graphics Card | |
| HDTV | |
| Features | Active |
| Eyefinity Technology | |
| Flexible | |
| Strain Relief | |
| Corrosion Resistant | |
| Cable Type | HDMI/Mini DisplayPort |
| Connector Type on First End | HDMI 2.0 Digital Audio/Video - Male |
| Connector Type on Second End | Mini DisplayPort 1.2a Digital Audio/Video - Male |
| Connector Plating | Gold |
| Supported Resolution | 3840 x 2160 |
| Contact Plating | Gold |
| Connector on First End Details | 1 x HDMI 2.0 Digital Audio/Video - Male |
| Connector on Second End Details | 1 x Mini DisplayPort 1.2a Digital Audio/Video - Male |
