Acerca del producto

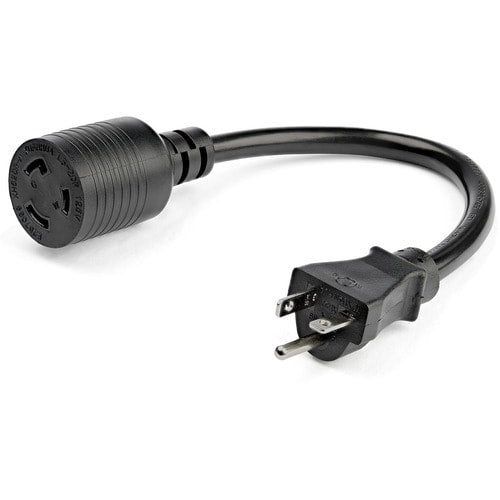

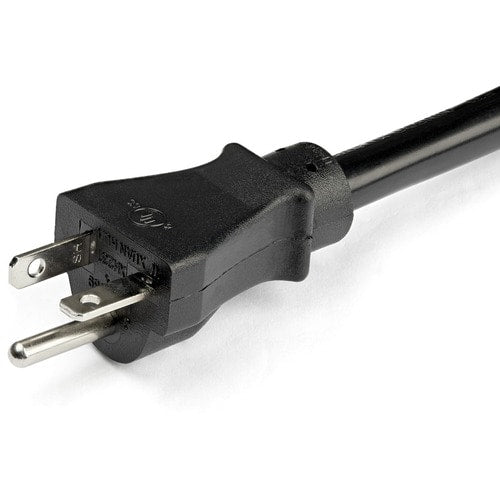

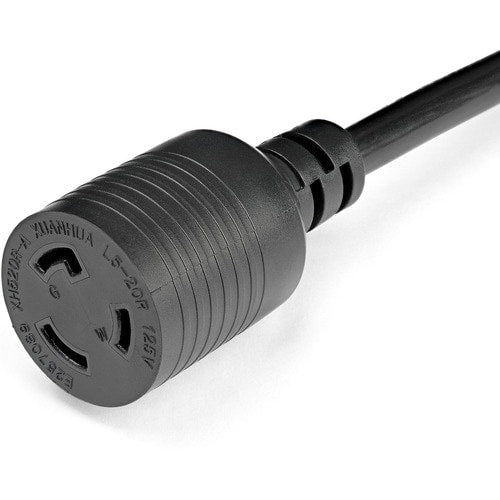

OverviewThis 1 ft. Power Adapter Cord features NEMA-L5-20R to NEMA-5-20P connectors, creating a high-power 20A connection for your Power Distribution Units. Reliable Connection Featuring a twist locking NEMA-L5-20 receptacle and a NEMA-5-20P plug, this external 12 inch power cable ensures your equipment is securely connected to avoid accidental power loss or downtime. Built with a 12 AWG wire
the heavy-duty adapter provides a high-power connection to support your server room equipment or large server applications. Organize Your Power Cables This one-foot extension cord provides additional length for connecting your powered devices, allowing for cleaner cable management. Durable Design Constructed with high quality materials, the NEMA power cable has fully molded strain relief connectors providing a dependable connection. PAC520PLR1 is backed by a StarTech.com lifetime warranty and free lifetime technical support. More from the Manufacturer More from the ManufacturerHEAVY DUTY EXTENSION CABLE: This 1ft (0.3m) 12AWG universal power cord with NEMA-L5-20R to NEMA-5-20P connectors is suitable for servers or other high-powered equipment | Indoor use | Rated to carry 125V at 20APERFORMANCE AND SAFETY: UL listed (UL62 & UL817) | Fully molded strain relief on connectors for durability | Fire Rating: VW-1 | 3 Conductor Power cable made with 100% copper wire | Available in other lengthsSPECS: 1ft (0.3m) AC Power Cord | NEMA-L5-20R to NEMA-5-20P | 12AWG | 125V 20A (Max) | Jacket Type: SJT | Jacket Material: PVC | Black | Temperature Range: 37°F to 227°F (3°C to 105°C) | Cable Outer Diameter: 0.36in (9.14mm)COMPATIBILITY: PC Power Cord NEMA 5-20P works with North American outlets | Extend connections to servers, desktop computers, monitors, printers, and more | Replacement power extension cable/cordTHE IT PRO'S CHOICE: Designed and built for IT Professionals, this power extension cable is backed for life, including free lifetime 24/5 multilingual technical assistanceBrochure
Especificaciones técnicas
| Environmental Conditions | |
| Minimum Operating Temperature | 37°F (2.8°C) |
| Maximum Operating Temperature | 227°F (108.3°C) |
| Power Description | |
| Voltage Rating | 125 V AC |
| Current Rating | 20 A |
| Miscellaneous | |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Waste Electrical and Electronic Equipment Directive (WEEE) | |
| Physical Characteristics | |
| Weight (Approximate) | 6.10 oz (172.93 g) |
| Cord Length | 1 ft (0.30 m) |
| Product Color | Black |
| Color Family | Black |
| General Information | |
| Product Type | Power Extension Cord |
| Manufacturer Part Number | PAC520PLR1 |
| Manufacturer Website Address | http://www.startech.com |
| Packaged Quantity | 1 Each |
| Manufacturer | StarTech.com |
| Product Name | 1 ft. Power Adapter Cord - NEMA-L5-20R to NEMA-5-20P |
| Brand Name | StarTech.com |
| Technical Information | |
| Device Supported | Server |
| Printer | |
| PDU | |
| Monitor | |
| Desktop Computer | |
| Localization | North America |
| First End Connector Type | NEMA 5-20R |
| First End Connector Detail | 1 x 3-pin NEMA 5-20R Female |
| Second End Connector Type | NEMA L5-20P |
| Second End Connector Detail | 1 x 3-pin NEMA L5-20P Male |
