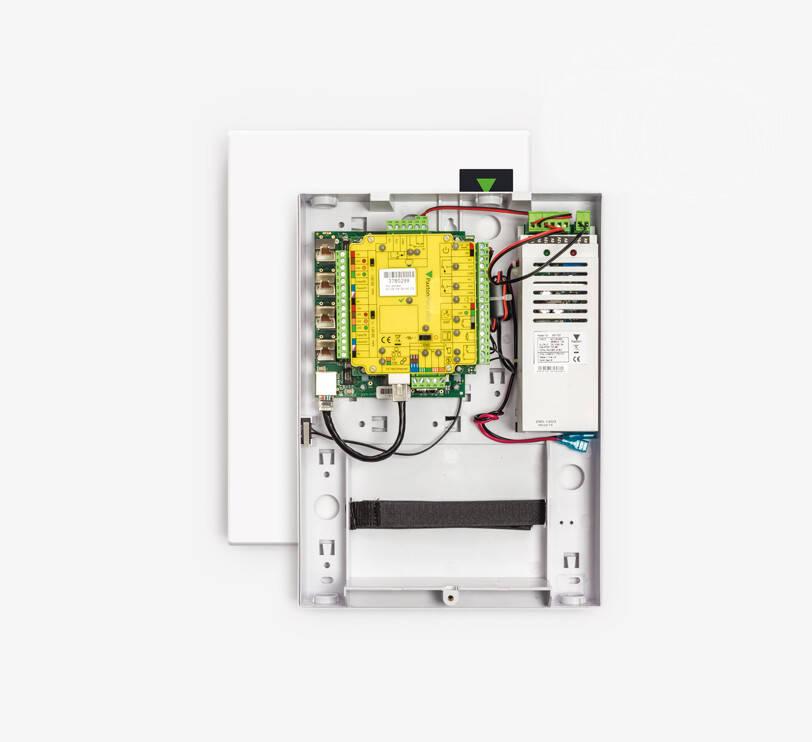

Unidad de control de acceso Paxton Net2 Entry de 1 puerta con conmutador POE de 4 puertos (PAX-337-727-US)

The Entry control unit is the central interface between a panel and the door and provides data and PoE to the monitors. The ports can also be used to expand the network of panels and monitors through Entry extension switches or to connect the control unit to a Net2 system running Net2 v4.25 or later.

Installation – Entry components simply interconnect using Cat5 or standard RJ45 terminated patch cables. Entry can also utilise existing network infrastructure for simple installation. PoE technology runs power and data along the same cable to avoid the need for separate power supplies.

Operation – A visitor initiates a video call via the bell button on the external panel. Visitor access can be granted via the Entry monitor, which features an intuitive touchscreen user interface. The internal monitor can be used via either the handset for private calls or in hands free mode.

When connected to Net2, access to the building can be gained by using a PIN, Code and/or proximity token.

• Net2 plus control unit
• 4 port PoE switch for easy expansion
• Tamper switch for extra security
• 2A 12V DC power supply
• Battery backup (not supplied)
• Plastic cabinet housing

The Entry control unit is the central interface between a panel and the door and provides data and PoE to the monitors. The ports can also be used to expand the network of panels and monitors through Entry extension switches or to connect the control unit to a Net2 system running Net2 v4.25 or later.

Installation – Entry components simply interconnect using Cat5 or standard RJ45 terminated patch cables. Entry can also utilise existing network infrastructure for simple installation. PoE technology runs power and data along the same cable to avoid the need for separate power supplies.

Operation – A visitor initiates a video call via the bell button on the external panel. Visitor access can be granted via the Entry monitor, which features an intuitive touchscreen user interface. The internal monitor can be used via either the handset for private calls or in hands free mode.

When connected to Net2, access to the building can be gained by using a PIN, Code and/or proximity token.

• Net2 plus control unit
• 4 port PoE switch for easy expansion
• Tamper switch for extra security
• 2A 12V DC power supply
• Battery backup (not supplied)
• Plastic cabinet housing
