Acerca del producto

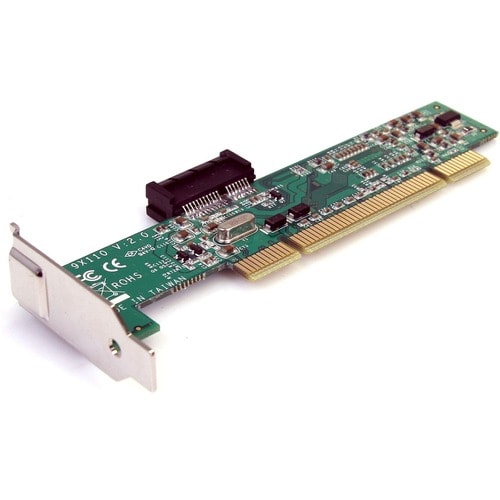

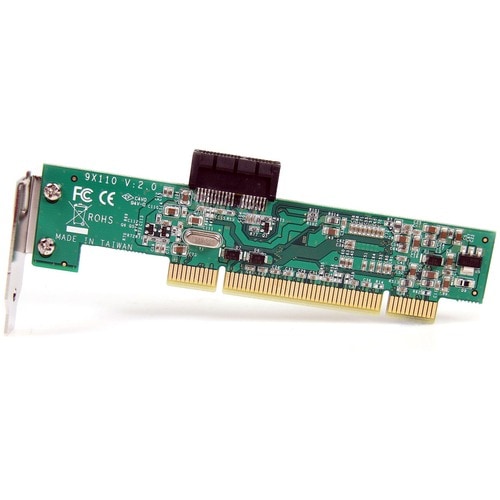

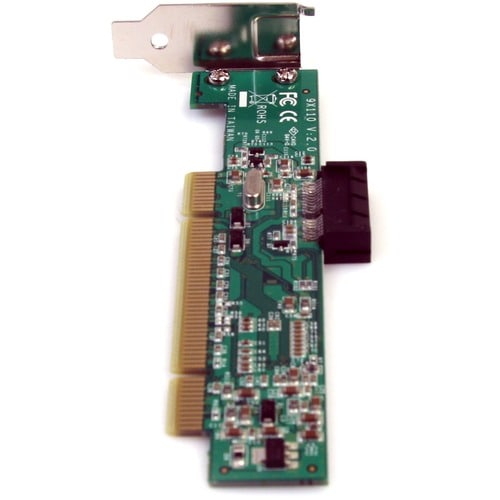

The PCI1PEX1 PCI to PCI Express Adapter card lets you use low profile PCIe expansion cards in a server/desktop motherboard PCI slot. The adapter connects through a 32-bit PCI slot to provide a low profile PCIe x1 slot in its place; a spare, full size bracket is included for installation in larger desktop or server expansion slots that can accommodate a full-sized card.
The PCI to PCI Express Adapter features an innovative bracket design that adapts and secures the low profile PCI Express card into the converted slot, ensuring a versatile and economical solution for extending the usability of older PCI motherboards or using low profile PCIe cards that do not have PCI equivalents.
More from the Manufacturer

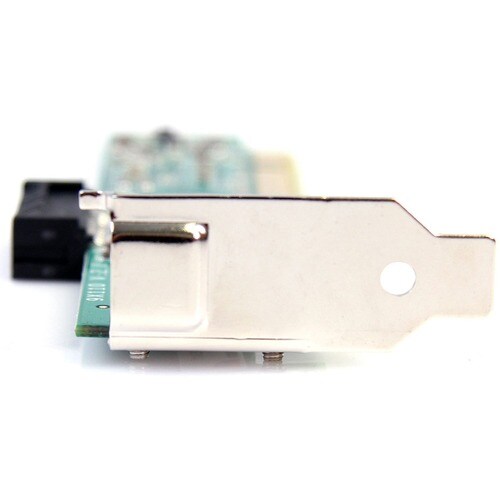

- Innovative bracket design adapts and secures the existing low profile/half-height bracket of the PCI Card
- PCI revision 2.3 compliant with up to 133MBps of available bandwidth
- Works with Universal Voltage PCI Slots (5V and 3.3V & 5V)
- Compliant with PCI-to-PCIe Bridge Architecture Spec Revision 1.2
- No driver or software installation
Especificaciones técnicas
| Technical Information | |
| Host Interface | PCI |
| I/O Expansions | |
| Expansion Slot Type | PCI Express (Low-profile) |
| Total Number of Expansion Slots | 1 |
| Physical Characteristics | |
| Thickness | 0.79" (20.07 mm) |
| Weight (Approximate) | 1.13 oz (32 g) |
| Height | 0.80" (20.32 mm) |
| Width | 2.40" (60.96 mm) |
| Depth | 5.30" (134.62 mm) |
| Miscellaneous | |
| Additional Information |
|
| Package Contents |
|
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Restriction of Hazardous Substances (RoHS) | |
| Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) | |
| General Information | |
| Product Type | Riser Card |
| Manufacturer Part Number | PCI1PEX1 |
| Manufacturer Website Address | http://www.startech.com |
| Packaged Quantity | 1 Each |
| Manufacturer | StarTech.com |
| Product Model | PCI1PEX1 |
| Product Name | PCI to PCI Express Adapter Card |
| Brand Name | StarTech.com |
