Single-Phase 120V PDU Distributes Network-Grade Power to Multiple Loads

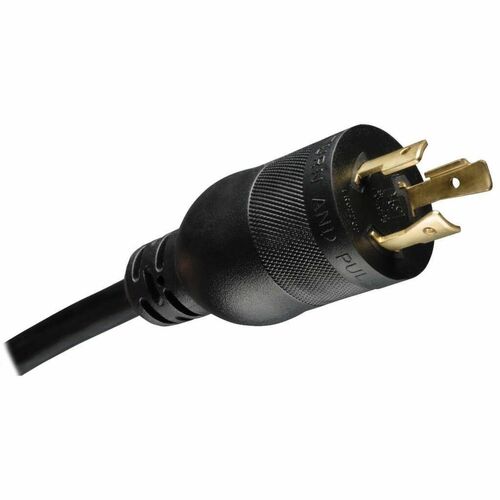

This basic PDU is an ideal no-frills unit for networking, telecom, security, audio/video and sound reinforcement applications. Recommended for high-density IT environments, the PDU1220T6 features a single breakered load bank with 13 NEMA 5-15/20R outlets - 12 in the rear and one in front. A 6-ft. (1.83 m) cord with NEMA L5-20P input plug connects to your facility's AC power source, generator or protected UPS system to distribute power to connected loads.
Up-to-Date Safety Features Protect Your Vital Equipment
The switchless design helps prevent an accidental shutdown, which could lead to costly downtime. A 20A circuit breaker protects connected components from dangerous overloads.
Versatile Installation Options Give You Plenty of Choices
The reversible all-metal housing comes with mounting brackets for installation in 1U or 0U of space in an EIA-standard 19-inch rack. You can also reorient the brackets for permanent mounting under a counter or on a wall with user-supplied hardware.
- PDU is reliable for power protection and management solutions
- Basic PDU deliver power to wiring closets, server rooms & equipment racks in a cost-effective way
Especificaciones técnicas
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Power Description | |
| Input Voltage | 120 V AC |
| Output Voltage | 100 V AC |
| 120 V AC | |
| 127 V AC | |
| Input Current | 20 A |
| Power Rating (Watt) | 2.50 kW |
| General Information | |
| Product Type | PDU |
| Manufacturer Part Number | PDU1220T6 |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Manufacturer | Eaton Corporation |
| Product Model | PDU1220T6 |
| Product Name | PDU1220T6 13-Outlets PDU |
| Brand Name | Tripp Lite by Eaton |
| Physical Characteristics | |
| Weight (Approximate) | 5.20 lb (2358.68 g) |
| Mount Type | Wall-mountable |
| Rack-mountable | |
| Rack Height | 1U |
| Height | 1.75" (44.45 mm) |
| Width | 17.50" (444.50 mm) |
| Depth | 4.50" (114.30 mm) |
| Mounting Orientation | Horizontal/Vertical |
| Technical Information | |
| Protection Type | Circuit Protection |
| Accidental Power Shutdown | |
| Overload Protection | |
| Plug/Connector Type | NEMA L5-20P |
| Phase | Single Phase |
| Receptacle Type | NEMA 5-15/20R |
| PDU Type | Basic |
| Receptacle Detail | 13 x NEMA 5-15/20R |
