Acerca del producto
Tripp Lite's PDU12IEC AC power distribution unit offers 16 amp capacity in a versatile 100-240 volt, worldwide compatible, multi-mount cabinet. Detachable mounting flanges are configurable for wallmount, under-counter or 1U/0U rackmount installation. Uses only 1 rack space (1U) when installed in any 19 inch rack, with the potential for 0U mounting in the cable management area of most rack enclosures. Detachable flanges with pre-punched access holes and adjustable depth channels allow user configuration in dozens of potential mounting schemes. Attractive housing with 14 outlets measuring only 4.25 inches in depth. Unfiltered electrical pass-through without a power switch makes PDU12IEC ideal for distributing alternate waveform UPS or generator power in rack enclosures, network closets and more. Includes 12 IEC320 C13 and 2 IEC320 C19 outlets, IEC320 C20 inlet connector (user supplies appropriate input cable), set of 16 amp circuit breakers, grounding lug and rugged all-metal case design.
- Basic single phase 16A 100-240V PDU
- 1U horizontal rackmount installation
- C20 inlet

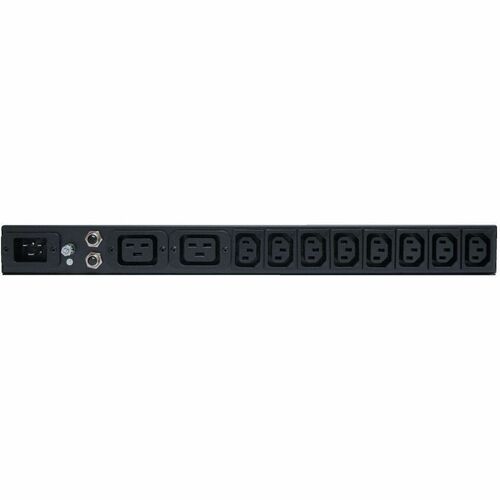

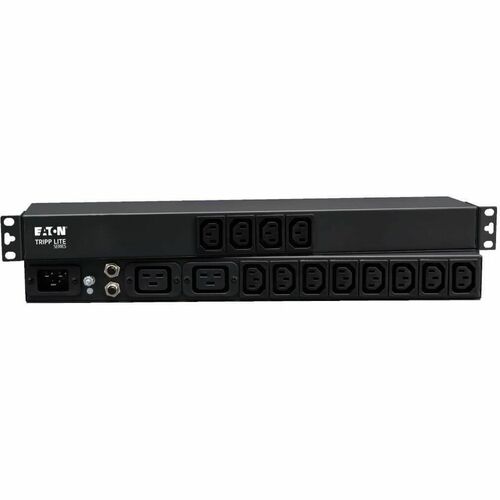

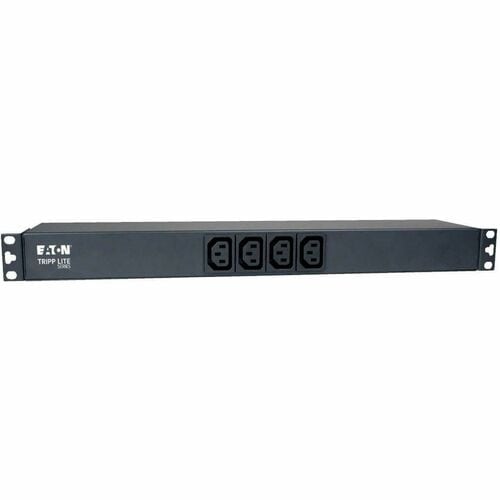

- 14 outlets (4 C13 front, 8 C13 / 2 C19 rear)
- Reversible housing; 4.25 in. / 10.8 cm depth
Especificaciones técnicas
| Physical Characteristics | |
| Mount Type | Rack-mountable |
| Rack Height | 1U |
| Power Description | |
| Input Voltage | 230 V AC |
| Output Voltage | 240 V AC |
| Miscellaneous | |
| Additional Information |
|
| Package Contents |
|
| Compatibility | TYPICAL APPLICATIONS: Multi-outlet power distribution unit is the ideal means of powering multiple loads in 19 inch rackmount, wallmount and under-counter applications: internetworking, PC systems, telecommunications, audio/video, security, sound reinforcement and more. Ideal for distribution of UPS, generator or commercially derived AC power to protected equipment. |
| Certifications & Standards | cUL, UR |
| Country of Origin | China |
| Technical Information | |
| Plug/Connector Type | IEC 60320 C20 |
| Receptacle Type | IEC 60320 C13 |
| IEC 60320 C19 | |
| PDU Type | Basic |
| Receptacle Detail | 12 x IEC 60320 C13 |
| 2 x IEC 60320 C19 | |
| General Information | |
| Product Type | PDU |
| Manufacturer Part Number | PDU12IEC |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Manufacturer | Eaton Corporation |
| Product Model | PDU12IEC |
| Product Name | PDU12IEC PDU Basic 100V - 240V 16A 14 Outlet |
| Brand Name | Tripp Lite by Eaton |
