Acerca del producto

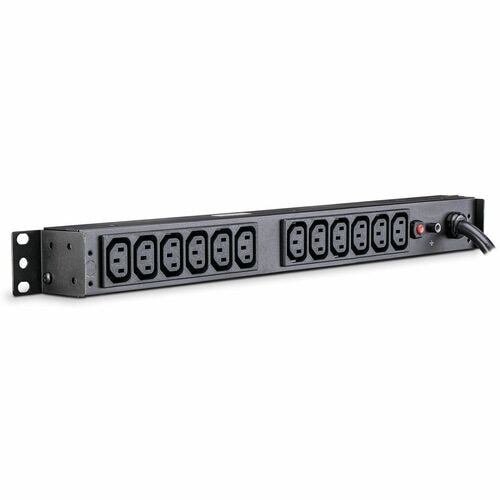

The CyberPower PDU20BHVT12R, a 12-outlet (rear) rackmount basic power distribution unit (PDU), provides 208V/230V 20A output. It distributes power to 12 IEC-320 C13 receptacles from a single NEMA L6-20P twist lock plug with unfiltered electrical pass-through. Designed for datacenters and other electrically demanding applications, the PDU20BHVT12R has rugged, industrial-grade metal housing and a 10-foot AC power cord. It can be mounted either horizontally or vertically, includes a cord retention tray, and is ETL/RoHS certified. A limited lifetime warranty covers defects in materials and workmanship in the product under normal use and conditions.
Power DistributionDelivers AC power to servers, equipment, and connected devices via a power distribution unit.
Switch-Free Design
Safeguards against accidental power shutdown.
Network-Grade Plugs and Outlets
Highly durable construction ensures the efficient distribution of power in demanding IT or industrial environments to servers, equipment, and connected devices.
Long Input Power Cord
Reaches distant power sources, allowing the PDU to be placed where it's needed.
Twist Lock Plug
Secures an outlet by twisting and locking into place to prevent accidental disconnection.
Cord Retention Tray
Secures power cords, keeping them organized and accessible. Helps cords stay plugged in.
Configurable Mounting Brackets
Allow for installation of the PDU in the following configurations: 0U (vertical, under counter, and wall mount), 1U (horizontal, vertical, under counter, and wall mount), and 2U (horizontal and wall mount).
Durable Metal Housing
Protects internal components and resists damage from impact or abrasions within challenging industrial environments. Also extends the life of the product.
Limited Lifetime Warranty
Covers defects in materials and workmanship in the product under normal use and conditions. See warranty for details.
What's In The Box
PDU, Cord Retention Tray, User Manual, Screw Kit, Cord Clip Kit, Horizontal Mounting Brackets, Vertical Mounting Brackets, Product Registration Card
- Basic PDU
- 12 IEC-320 C13 output receptacles
- 200/230V AC - 50/60Hz - 20-amp electrical capacity with circuit breaker
- 1U Rack Mount - Rugged industrial-grade metal housing
Especificaciones técnicas
| Power Description | |
| Input Voltage | 230 V AC |
| Input Voltage Range | 200 V AC - 230 V AC |
| Output Voltage Range | 200 V AC - 230 V AC |
| Miscellaneous | |
| Package Contents |
|
| Certifications & Standards |
|
| Environmentally Friendly | Yes |
| Energy Star | No |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Technical Information | |
| Protection Type | Overload Protection |
| Plug/Connector Type | NEMA L6-20P |
| Phase | Single Phase |
| Receptacle Type | IEC 60320 C13 |
| PDU Type | Basic |
| Receptacle Detail | 12 x IEC 60320 C13 |
| Physical Characteristics | |
| Weight (Approximate) | 3.70 lb (1678.29 g) |
| Mount Type | Rack-mountable |
| Rack Height | 1U |
| Height | 1.75" (44.45 mm) |
| Width | 17.50" (444.50 mm) |
| Depth | 1.50" (38.10 mm) |
| Mounting Orientation | Vertical |
| General Information | |
| Product Type | PDU |
| Manufacturer Part Number | PDU20BHVT12R |
| Manufacturer Website Address | https://www.cyberpowersystems.com/ |
| Manufacturer | CyberPower Systems, Inc |
| Product Model | PDU20BHVT12R |
| Product Name | Basic PDU20BHVT12R 12-Outlets PDU |
| Product Series | Basic PDU |
| Brand Name | CyberPower |
