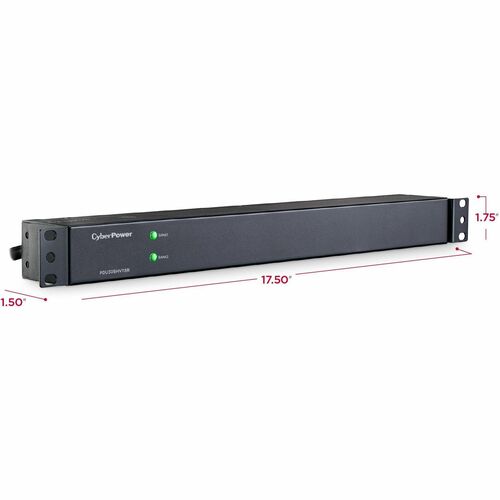

The CyberPower PDU30BHVT8R, an 8-outlet (rear) rackmount basic power distribution unit (PDU), provides 208V/230V 30A output. It distributes power to 6 IEC-320 C13, 2 IEC-320 C19 receptacles from a single NEMA L6-30P twist lock plug with unfiltered electrical pass-through. Designed for datacenters and other electrically demanding applications, the PDU30BHVT8R has rugged, industrial-grade metal housing and a 10-foot AC power cord. It can be mounted either horizontally or vertically, includes a cord retention tray, and is ETL/RoHS certified. A limited lifetime warranty covers defects in materials and workmanship in the product under normal use and conditions.
Power DistributionDelivers AC power to servers, equipment, and connected devices via a power distribution unit.
Switch-Free Design
Safeguards against accidental power shutdown.
Network-Grade Plugs and Outlets
Highly durable construction ensures the efficient distribution of power in demanding IT or industrial environments to servers, equipment, and connected devices.
Long Input Power Cord
Reaches distant power sources, allowing the PDU to be placed where it's needed.
Twist Lock Plug
Secures an outlet by twisting and locking into place to prevent accidental disconnection.
Cord Retention Tray
Secures power cords, keeping them organized and accessible. Helps cords stay plugged in.
Configurable Mounting Brackets
Allow for installation of the PDU in the following configurations: 0U (vertical, under counter, and wall mount), 1U (horizontal, vertical, under counter, and wall mount), and 2U (horizontal and wall mount).
Durable Metal Housing
Protects internal components and resists damage from impact or abrasions within challenging industrial environments. Also extends the life of the product.
Limited Lifetime Warranty
Covers defects in materials and workmanship in the product under normal use and conditions. See warranty for details.
What's In The Box
PDU, Cord Retention Tray, User Manual, Screw Kit, Cord Clip Kit, Horizontal Mounting Brackets, Vertical Mounting Brackets, Product Registration Card
- 208V - 230V 50Hz/60Hz 30A BASIC Power Distribution Unit
- 8 OUTLETS: (6) IEC-320 C13 (2) IEC-320 C19
- INPUT: Network-grade NEMA L6-30P (twist lock) plug with 10 foot power cord
- 1U RACK MOUNT - Rugged industrial-grade metal housing, cord retention tray, horizontal and vertical mounting brackets
- LIMITED LIFETIME WARRANTY
Especificaciones técnicas
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Power Description | |
| Input Voltage | 230 V AC |
| Input Current | 30 A |
| Input Voltage Range | 200 V AC - 230 V AC |
| Output Voltage Range | 200 V AC - 230 V AC |
| Physical Characteristics | |
| Weight (Approximate) | 4.50 lb (2041.17 g) |
| Mount Type | Rack-mountable |
| Rack Height | 1U |
| Height | 1.75" (44.45 mm) |
| Width | 17.50" (444.50 mm) |
| Depth | 1.50" (38.10 mm) |
| Mounting Orientation | Vertical |
| General Information | |
| Product Type | PDU |
| Manufacturer Part Number | PDU30BHVT8R |
| Manufacturer Website Address | https://www.cyberpowersystems.com/ |
| Manufacturer | CyberPower Systems, Inc |
| Product Model | PDU30BHVT8R |
| Product Name | PDU30BHVT8R 8-Outlets PDU |
| Product Series | Basic PDU |
| Brand Name | CyberPower |
| Technical Information | |
| Protection Type | Overload Protection |
| Plug/Connector Type | NEMA L6-30P |
| Phase | Single Phase |
| Receptacle Type | IEC 60320 C13 |
| IEC 60320 C19 | |
| PDU Type | Basic |
| Receptacle Detail | 2 x IEC 60320 C19 |
| 6 x IEC 60320 C13 |
