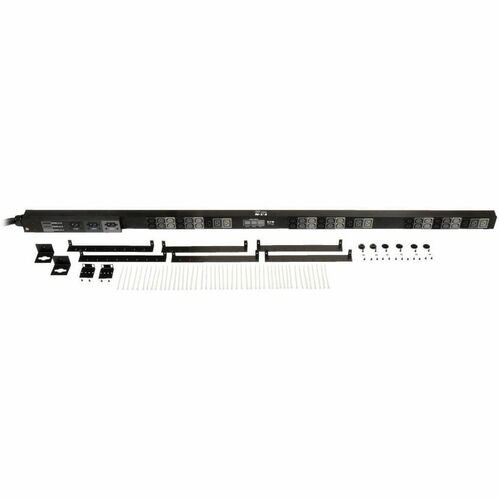

Tripp Lite 3 phase Metered PDU / Power Distribution Units offer real-time local reporting of current levels in amps via set of 3 built-in digital meters. Enables visual monitoring of PDU current levels to preserve proper loading balance and prevent circuit overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.
- Metered 12.6kW 3 Phase 208V PDU; 70 in. / 178cm 0U vertical rackmount
- Reports load current per-phase via set of 3 built-in current meters
- Hubbell CS8365C 50A (3P+E) 208V 3 phase input; 6 ft. / 1.8m line cord
- 45 208V outlets total (36 C13, 9 C19)
- Toolless button-mount installation; cord retention brackets included
- Federal Trade Agreements Act / TAA Compliant for GSA Schedule purchases
Especificaciones técnicas
| Power Description | |
| Input Voltage | 230 V AC |
| Output Voltage | 208 V AC |
| Power Rating (Watt) | 12.60 kW |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| TAA Compliant | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Physical Characteristics | |
| Weight (Approximate) | 14.50 lb (6577.09 g) |
| Mount Type | Rack-mountable |
| Height | 70" (1778 mm) |
| Width | 2.65" (67.31 mm) |
| Depth | 2.20" (55.88 mm) |
| Mounting Orientation | Vertical |
| Technical Information | |
| Protection Type | Overload Protection |
| Plug/Connector Type | Hubbell CS8365C |
| Receptacle Type | IEC 60320 C19 |
| IEC 60320 C13 | |
| Receptacle Detail | 36 x IEC 60320 C13 |
| 9 x IEC 60320 C19 | |
| General Information | |
| Product Type | PDU |
| Manufacturer Part Number | PDU3MV6H50 |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Manufacturer | Eaton Corporation |
| Product Model | PDU3MV6H50 |
| Product Name | Metered PDU3MV6H50 45-Outlets PDU |
| Product Series | Metered |
| Brand Name | Tripp Lite by Eaton |
