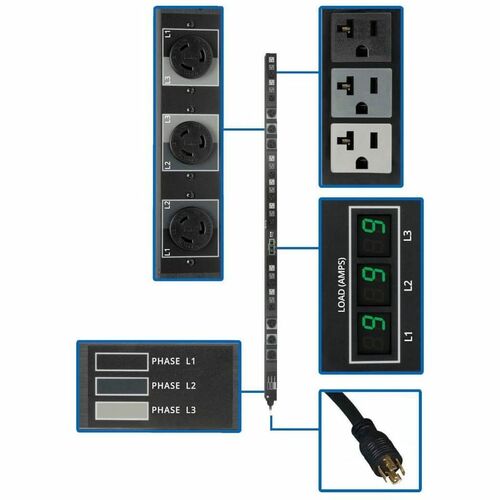

Tripp Lite 3 phase Metered PDU / Power Distribution Units offer real-time local reporting of current levels in amps via set of 3 built-in digital meters. Enables visual monitoring of PDU current levels to preserve proper loading balance and prevent circuit overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.

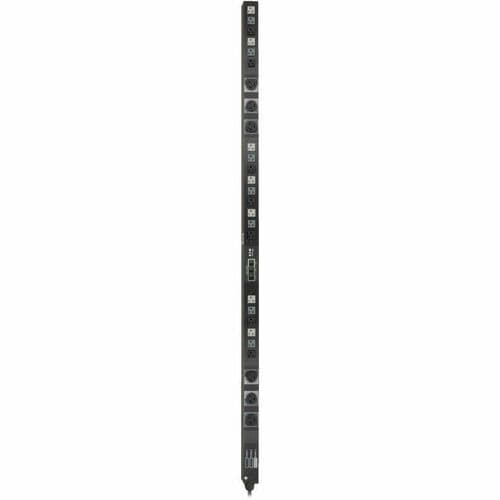

- Metered 5.7kW 3 Phase 208/120V PDU; 70 in. / 178cm 0U vertical rackmount

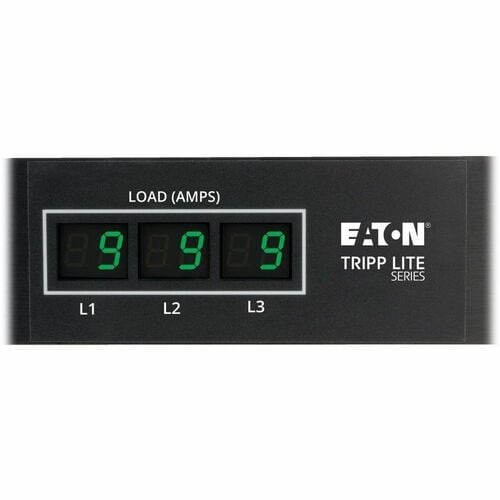

- Reports input current per-phase via built in current meters

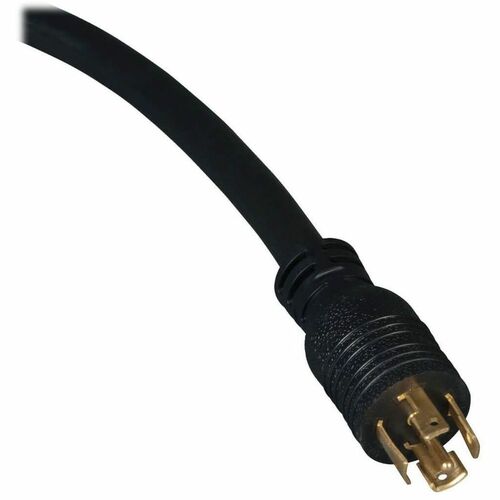

- NEMA L21-20P (3P+N+E) 208V 3 phase input; 6 ft. / 1.8m line cord

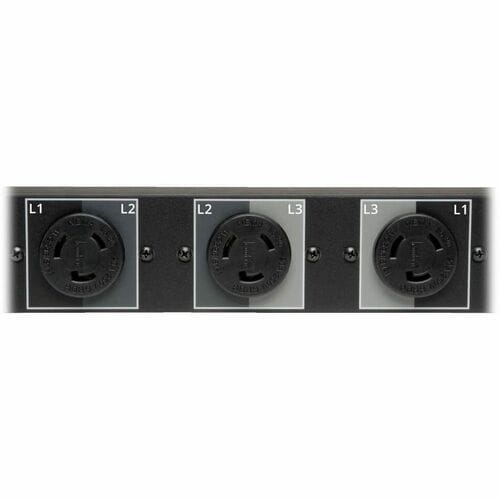

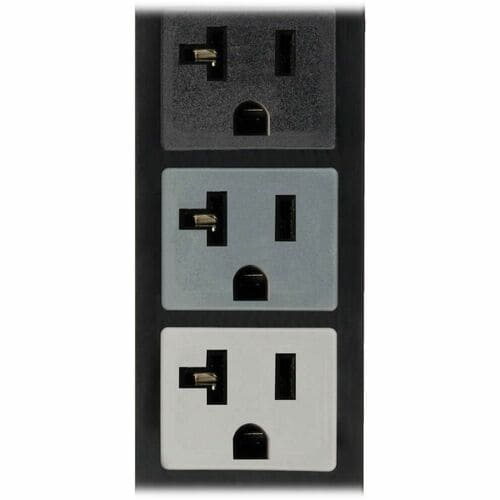

- 27 outlets total; 21 5-15/20R (120V), 6 L6-20R (208V)

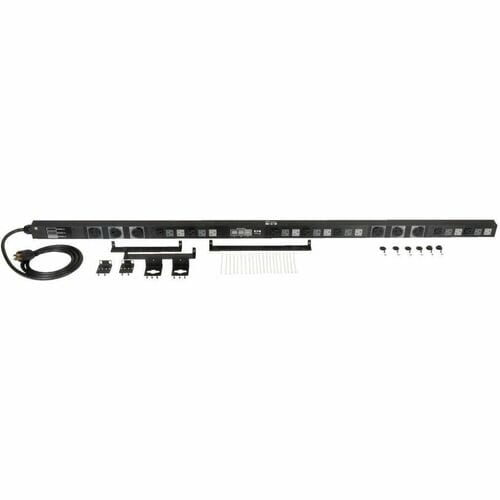

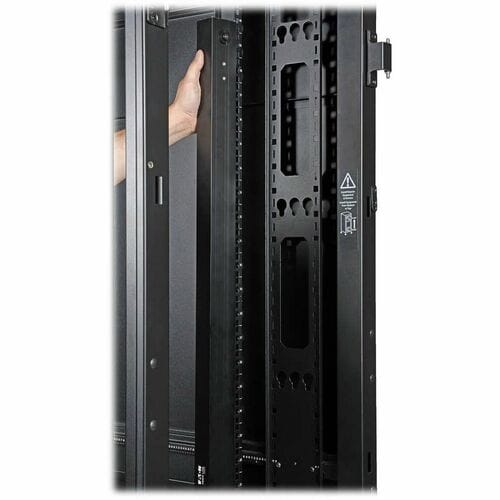

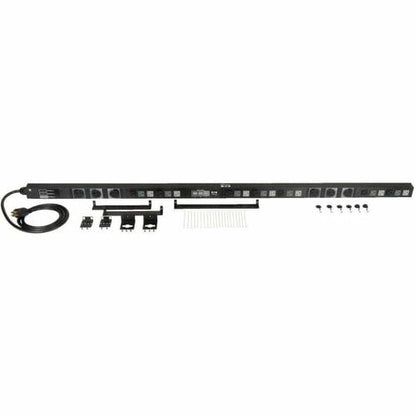

- Toolless button-mount installation; cord retention brackets included
- Federal Trade Agreements Act / TAA Compliant for GSA Schedule purchases
Especificaciones técnicas
| Power Description | |
| Input Voltage | 230 V AC |
| Output Voltage | 120 V AC |
| 208 V AC | |
| Power Rating (Watt) | 5.70 kW |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| TAA Compliant | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Technical Information | |
| Plug/Connector Type | NEMA L21-20P |
| Receptacle Type | NEMA L6-20R |
| NEMA 5-15/20R | |
| Receptacle Detail | 6 x NEMA L6-20R |
| 21 x NEMA 5-15/20R | |
| Physical Characteristics | |
| Weight (Approximate) | 12.57 lb (5700 g) |
| Mount Type | Rack-mountable |
| Height | 70" (1778 mm) |
| Width | 1.93" (49.02 mm) |
| Depth | 2.20" (55.88 mm) |
| Mounting Orientation | Vertical |
| General Information | |
| Product Type | PDU |
| Manufacturer Part Number | PDU3MV6L2120B |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Manufacturer | Eaton Corporation |
| Product Model | PDU3MV6L2120B |
| Product Name | 3-Phase Metered PDU |
| Product Series | Metered |
| Brand Name | Tripp Lite by Eaton |
