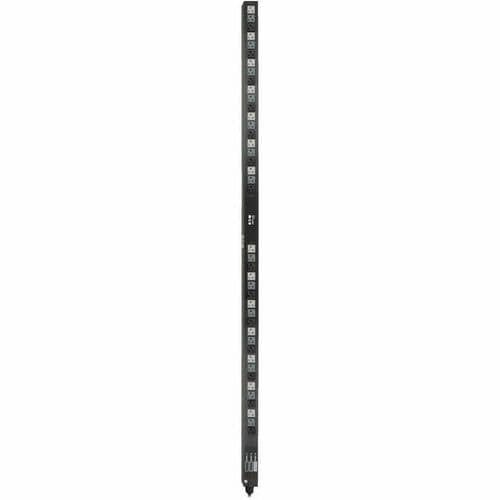

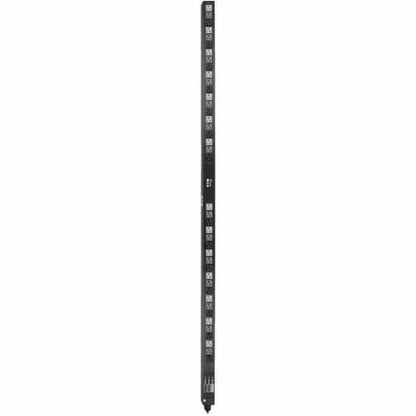

PDU básica de 42 tomacorrientes Tripp Lite by Eaton PDU3V6L2120LV - NEMA L21-20
PDU básica de 42 tomacorrientes Tripp Lite by Eaton PDU3V6L2120LV - NEMA L21-20
- Energía eléctrica instalada en racks de computadoras y equipos de red dentro de un centro de datos
- Proporciona protección de circuito y fácil configuración para un acceso sin problemas.
- Con una PDU básica, se convierte en la forma más sencilla de distribuir la energía del UPS o del generador de la instalación a múltiples cargas de rack.
Bloque de texto
No se pudo cargar la disponibilidad de retiro
Descuento por volumen disponible: solicite cotización.
Ver todos los detalles






Recently Viewed
PDU básica de 42 tomacorrientes Tripp Lite by Eaton PDU3V6L2120LV - NEMA L21-20
Resumen de información del producto

Acerca del producto
3-Phase 120V PDU Distributes Network-Grade Power to Multiple Loads

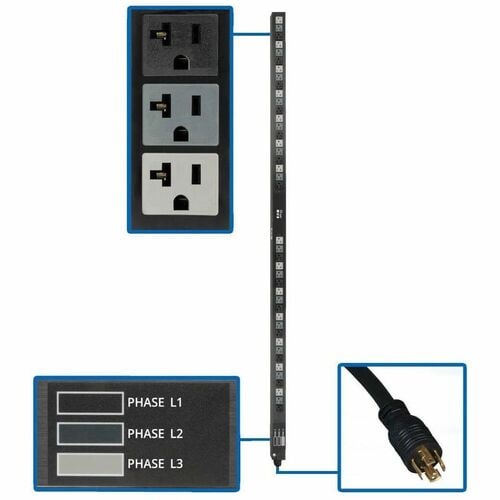

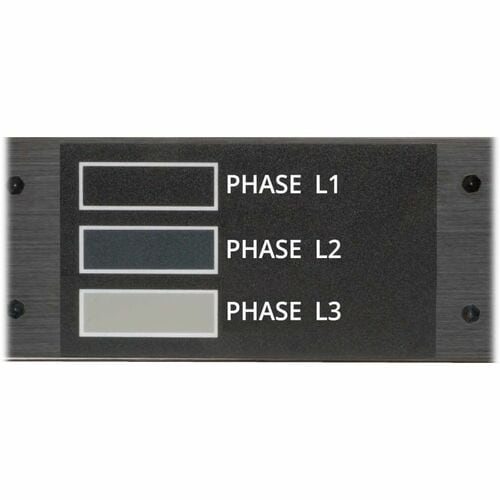

This basic PDU is an ideal no-frills unit for networking, telecom, security, audio/video and sound reinforcement applications. Recommended for small to mid-sized data centers, computer rooms and network closets, the PDU3V6L2120LV features 42 NEMA 5-15/20R outlets in three single-phase output load banks for connecting equipment. A six-foot (1.8-meter) cord with NEMA L21-20P 3-phase input plug connects to your facility's AC power source, generator or protected UPS system to distribute power to connected loads.
Easy to Install Vertically in an EIA-Standard 19 in. Rack

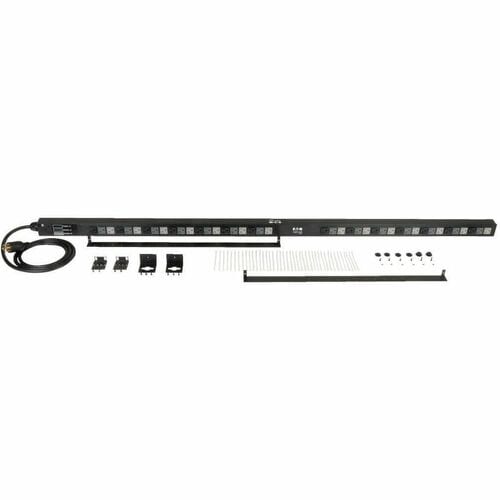

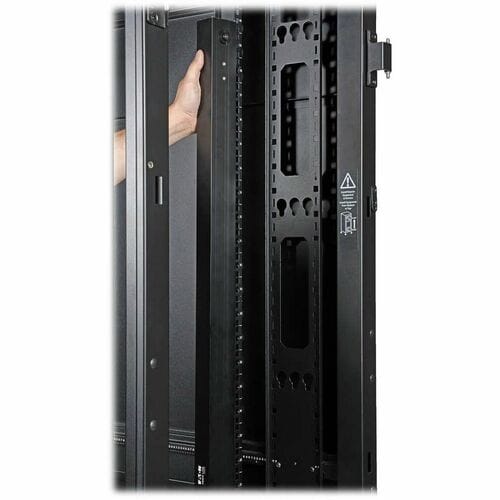

The 70-inch 0U PDU's all-metal housing mounts vertically using the pre-installed toolless mounting buttons or the included brackets. Spare buttons are also included. Use the included PDUMVROTATEBRKT kit to install the PDU with outlets facing the rear for better airflow or equipment access. Cable retention brackets keep power cords organized and your rack free of clutter. The PDU's switchless design helps prevent an accidental shutdown, which could lead to costly downtime.
TAA-Compliant for GSA Schedule Purchases
The PDU3V6L2120LV is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
- Electric power fitted to racks of computers and networking equipment within a data center
- Provide circuit protection and easy configuration for trouble-free access
- With basic PDU it becomes the easiest way to distribute facility UPS or generator power to multiple rack loads
Especificaciones técnicas
Power Description | |
Input Voltage | 230 V AC |
Output Voltage | 120 V AC |
Input Current | 16 A |
Power Rating (Watt) | 5.70 kW |
Miscellaneous | |
Package Contents |
|
Country of Origin | Taiwan |
Environmentally Friendly | Yes |
TAA Compliant | Yes |
Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
General Information | |
Product Type | PDU |
Manufacturer Part Number | PDU3V6L2120LV |
Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
Manufacturer | Eaton Corporation |
Product Model | PDU3V6L2120LV |
Product Name | PDU3V6L2120LV 42-Outlets PDU |
Brand Name | Tripp Lite by Eaton |
Physical Characteristics | |
Weight (Approximate) | 12.70 lb (5760.62 g) |
Mount Type | Rack-mountable |
Rack Height | 0U |
Height | 70" (1778 mm) |
Width | 2.20" (55.88 mm) |
Depth | 1.71" (43.43 mm) |
Mounting Orientation | Vertical/Toolless |
Technical Information | |
Protection Type | Circuit Protection |
Accidental Power Shutdown | |
Overload Protection | |

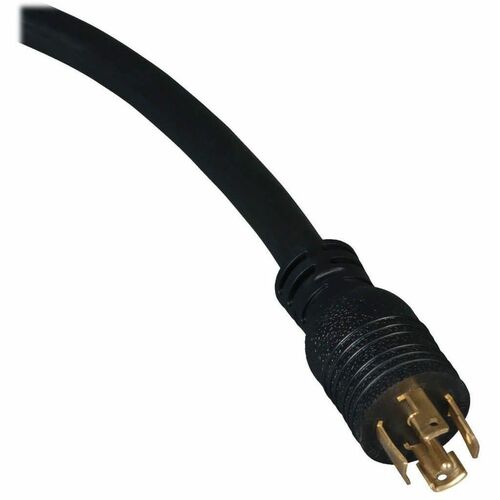

Plug/Connector Type | NEMA L21-20P |
Phase | Three Phase |

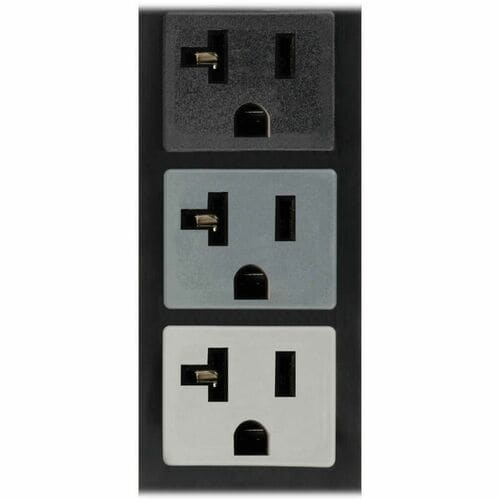

Receptacle Type | NEMA 5-15/20R |
PDU Type | Basic |
Locking Receptacles | Cord Retention Bracket |
Receptacle Detail | 42 x NEMA 5-15/20R |
